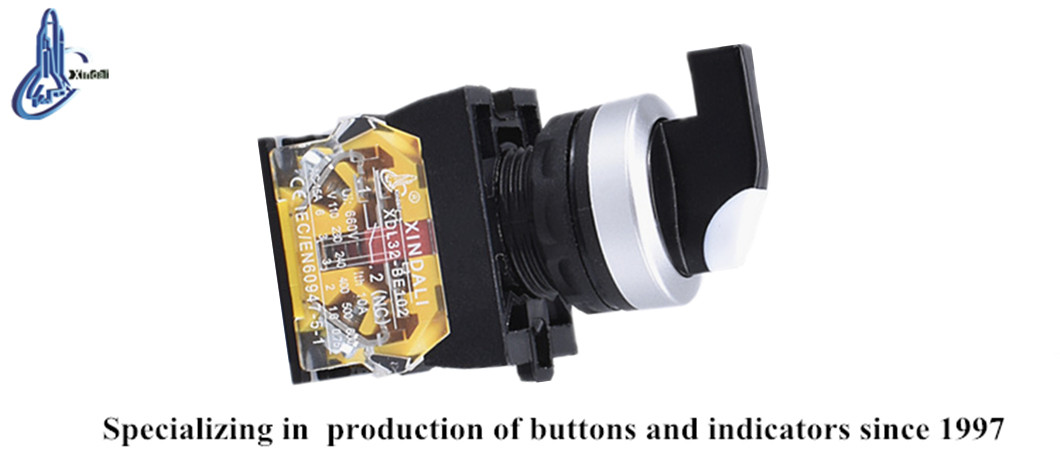

XDL32-CDJ35 Long Handle Selector for Elevator Position Push Button Switch
Inquire NowDescription
The XDL32-CDJ35 Long Handle Selector for Elevator Position Push Button Switch is expertly designed for efficient control and signaling in various electrical applications. This robust push button series is engineered to manage AC voltages up to 660V/50Hz or 60Hz and DC voltages below 400V, making it ideal for controlling circuits and interlocking mechanisms. Crafted from a durable combination of zinc alloy and premium anti-flame plastic, this push button features special silver alloy contacts that ensure longevity and high resistance to electrical erosion.
Not only does it serve as a control mechanism, but it also excels in providing visual feedback through its signal lamp series, which is suitable for electrical circuit applications up to 380V/50Hz and DC below 380V. Whether for indicating signals, warning alerts, or emergency signals, this product meets stringent standards, including GB/T14048.1 and IEC60947-5-1, and is certified by CE, ISO9001, ROHS, and UL.
Specifications
| Basic Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300 * 10 push and pull type, Emergency button: 30 * 10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
- Designed for reliable control in industrial applications.
- Durable construction ensures longevity and safety.
- Meets rigorous certification standards for quality and safety.
Product Show
