XDL32-CG35 3 Position Selector Metal Push Button Elevator Key Switch
Inquire NowDescription
The XDL32-CG35 3 Position Selector Metal Push Button Elevator Key Switch is a robust and reliable component designed for controlling electrical circuits. This versatile switch is capable of managing AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, making it suitable for various applications. Constructed from durable zinc alloy and high-grade anti-flame plastic, it ensures longevity and safety in operation. The specialized silver alloy contacts enhance resistance to electrical erosion, thus extending the device’s operational life.
Ideal for applications requiring signaling, interlocking, and emergency functions, this switch complies with various international standards, including GB/T14048.1 and IEC60947-5-1. Additionally, it boasts multiple certifications, including CE, ISO9001, ROHS, and UL, ensuring it meets stringent safety and quality requirements.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
To ensure optimal performance and longevity, it is recommended to follow the installation guidelines and maintain proper environmental conditions. The switch is designed for easy operation and can be integrated into various systems requiring reliable signaling and control mechanisms.

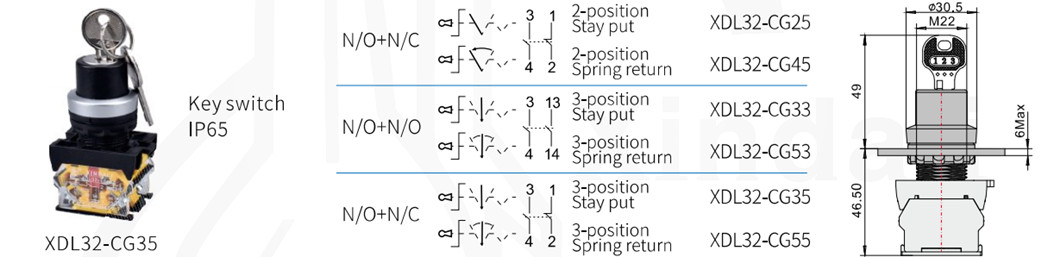

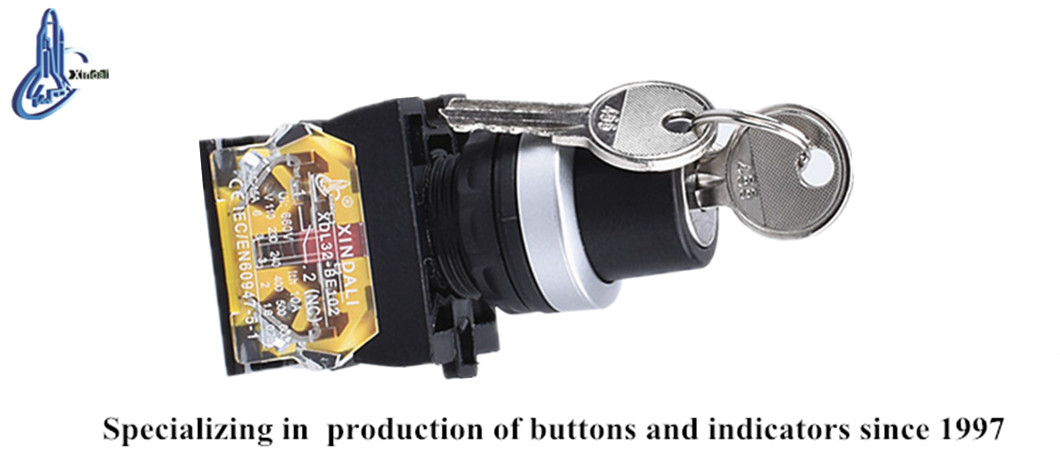

Product Show:
