XDL32-CK2356 22mm Green LED Position Lamp Push Button Selector Switch
Inquire NowDescription
The XDL32-CK2356 22mm Green LED Position Lamp Push Button Selector Switch is a robust and versatile component designed for precise control in electrical circuits. This push button switch is capable of handling AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, making it suitable for a variety of applications including signal control and interlocking. The main body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The contact is made of a special silver alloy to provide high resistance against electrical erosion. This product is ideal for use as an indicating signal, warning signal, or emergency signal. It adheres to stringent standards, complying with GB/T14048.1 and IEC60947-5-1, and is CE, ISO9001, ROHS, and UL certified for quality assurance.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient temperature | Operating temperature: -5℃ to +55℃, Storage temperature: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |

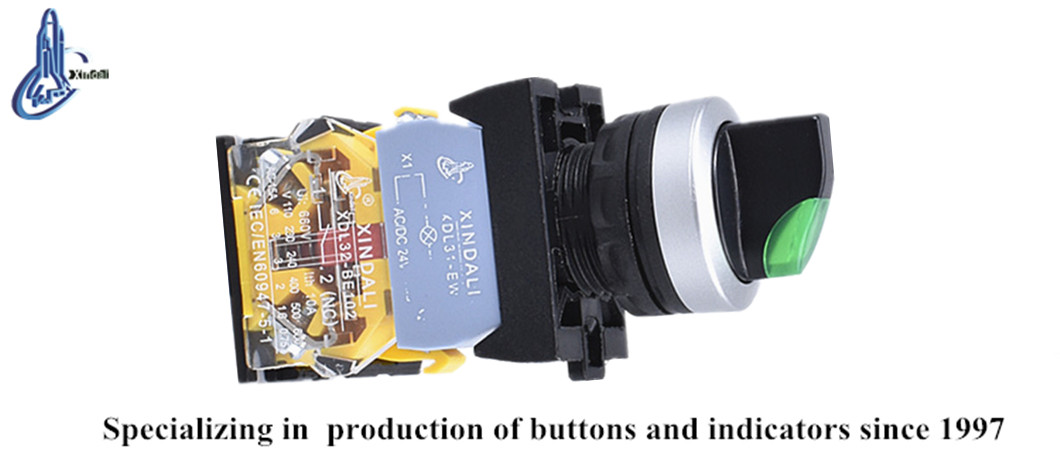

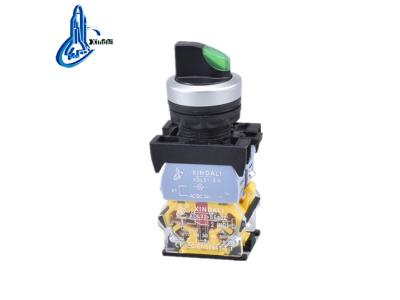

Product Show
