OEM ODM XDL32-CKJ3365 22mm 3 Position Push Button Indicator Light Selector Switch
Description
The XDL32-CKJ3365 22mm 3 Position Push Button Indicator Light Selector Switch is designed for efficient control in electrical circuits. This robust switch can handle AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, making it ideal for various signal and interlocking applications. Its main body is constructed from durable zinc alloy and high-grade, anti-flame plastic, ensuring longevity and safety. The switch features special silver alloy contacts, providing excellent resistance to electrical erosion. The inclusion of a signal lamp enhances its functionality, making it suitable for indicating signals, emergency signals, and warning alerts. The product adheres to strict standards, including GB/T14048.1 and IEC60947-5-1, and is certified for CE, ISO9001, RoHS, and UL compliance.
Specifications
| Attribute | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300×10 (push and pull type) Emergency Button: 30×10 |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

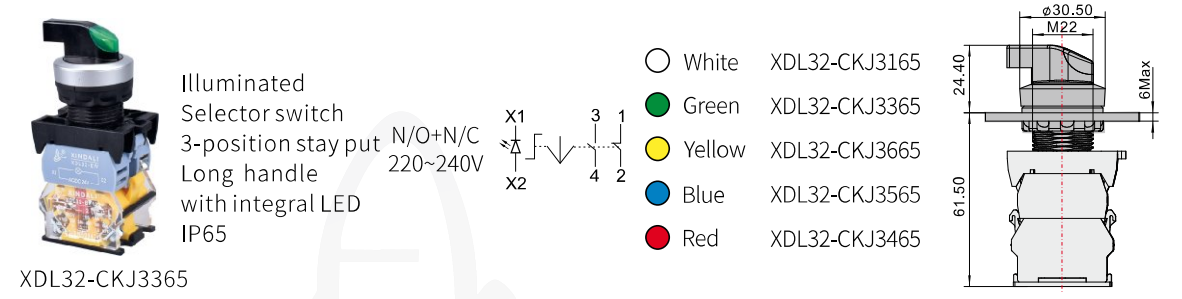

Product Show
