XDL32-CL45 Elevator Convex Head Metal Button Spring Return Push Button Switch
Inquire NowDescription
The XDL32-CL45 Elevator Convex Head Metal Button Spring Return Push Button Switch is engineered for reliable performance in controlling AC circuits up to 660V/AC50Hz or 60Hz and DC circuits below 400V. This robust switch is perfect for signal control and interlocking purposes, featuring a durable main body made from zinc alloy coupled with high-grade anti-flame plastic. Its specially designed silver alloy contacts ensure exceptional resistance to electrical erosion, enhancing longevity and reliability. Ideal for use in various applications, including indicating, warning, and emergency signals, this switch conforms to stringent industry standards, guaranteeing safety and quality. Certified under CE, ISO9001, ROHS, and UL, this product is built to last.

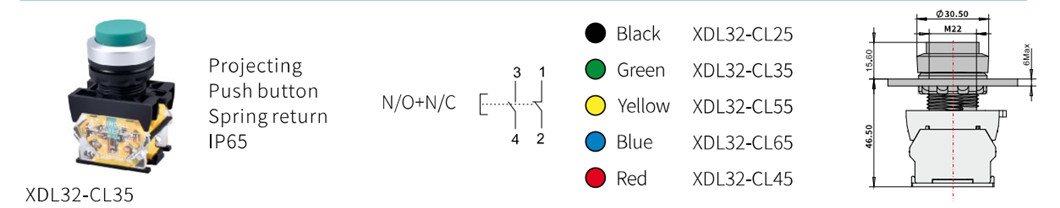

Specifications
| Characteristic | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Air Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300×10 cycles, Emergency Button: 30×10 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

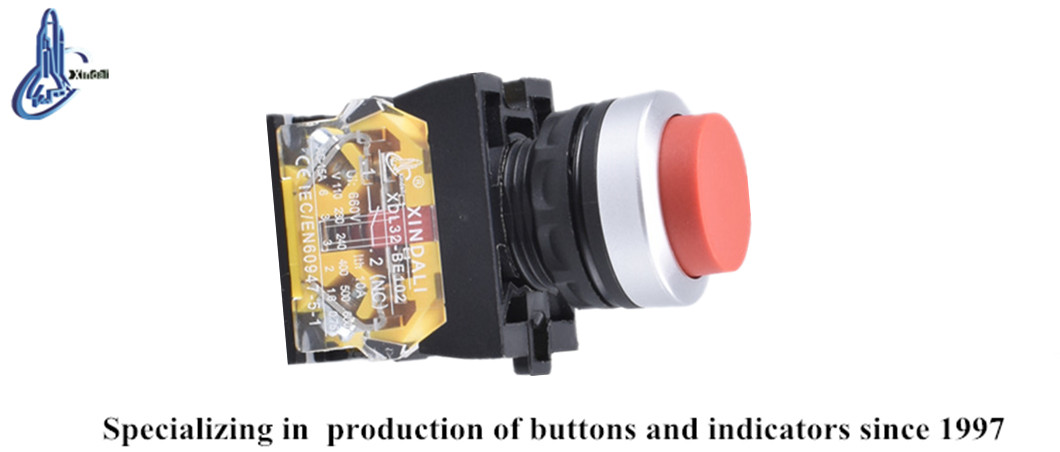

Product Show
