XDL32-CWL3565 Convex Head Green Indicator Lamp Metal Push Button Switch
Inquire NowDescription
The XDL32-CWL3565 Convex Head Green Indicator Lamp Metal Push Button Switch is designed for reliable control in various electrical circuits. Capable of handling AC voltages up to 660V/AC50Hz or 60Hz, and DC voltages below 400V, this push button switch is perfect for signal control and interlocking applications. Constructed with a durable zinc alloy body and high-grade anti-flame plastic, it features special silver alloy contacts that ensure high resistance to electrical erosion. This indicator lamp series effectively operates in electrical appliances at AC voltages up to 380V/50Hz, making it an excellent choice for indicating signals, warning signals, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1, achieving CE, ISO9001, ROHS, and UL certifications for quality assurance.
Specifications
| Feature | Description |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating temperature: -5℃~+55℃; Storage temperature: -25℃~+70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information

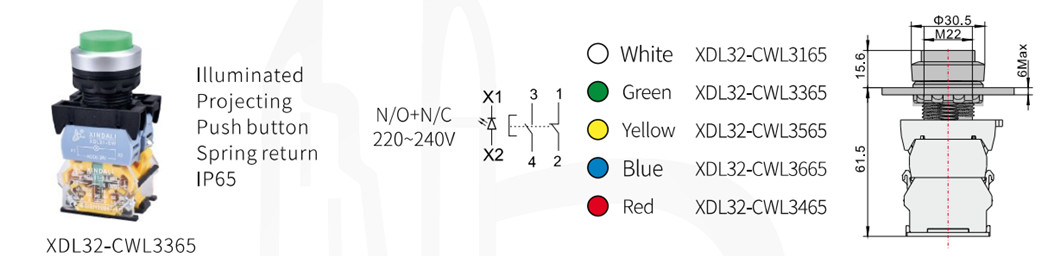

Product Show
