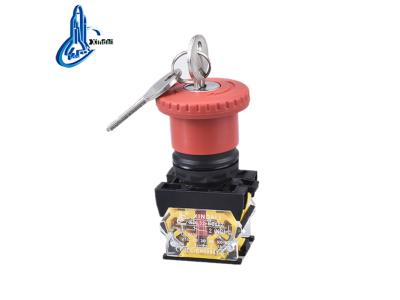

XDL32-ES145 ip68 industrial key lock elevator emergency key push button switch
Inquire NowDescription
The XDL32-ES145 IP68 industrial key lock elevator emergency key push button switch is designed for rigorous applications requiring reliability and safety. This robust push button switch controls AC voltage circuits up to 660V/AC50Hz or 60Hz, and DC voltage circuits below 400V, making it ideal for emergency signaling and interlocking purposes. Crafted from durable zinc alloy and high-grade anti-flame plastic, it features contacts made from a special silver alloy, providing exceptional resistance to electrical erosion. Suitable for use in various electrical appliances, this switch meets stringent standards, ensuring compliance with GB/T14048.1 and IEC60947-5-1. It is certified with CE, ISO9001, RoHS, and UL, reflecting its superior quality and safety.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating temperature: -5℃ to +55℃ Storage temperature: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type Emergency button: 30*10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
- Ideal for electrical appliances requiring emergency signaling or interlocking.
- Suitable for various industrial applications thanks to its rugged design.
- Ensures safety and reliability in critical scenarios.

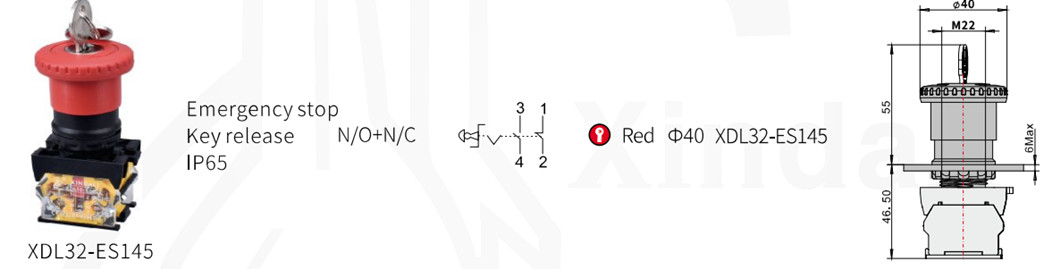

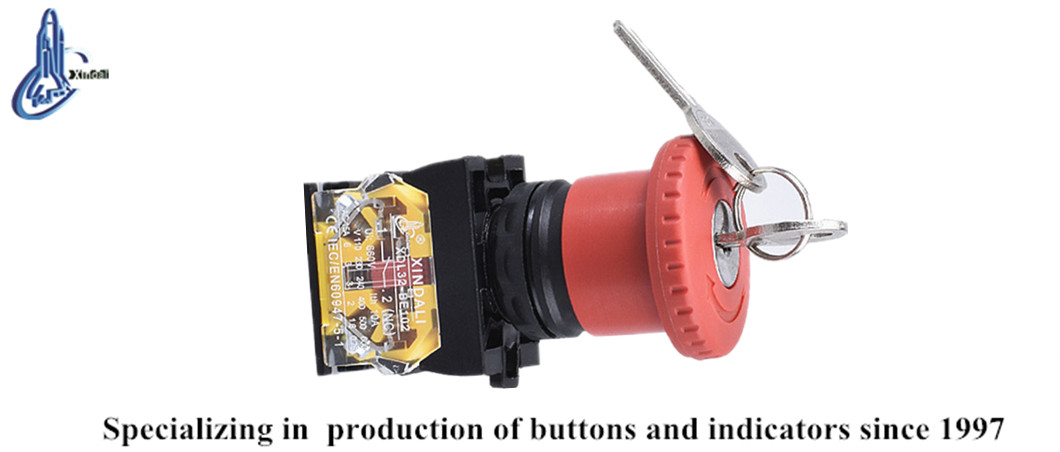

Product Show
