XDL32-ES445 Mushroom Head Red Waterproof Switch Emergency Stop Push Button
Inquire NowDescription
The XDL32-ES445 Mushroom Head Red Waterproof Switch Emergency Stop Push Button is a crucial component for safety and emergency situations. Designed for controlling AC voltage circuits up to 660V/AC50Hz or 60Hz and DC voltage circuits below 400V, this push button switch is essential for signal control and interlocking purposes. Its robust construction features a zinc alloy body enhanced by high-grade anti-flame plastic, ensuring reliability in demanding environments. The special silver alloy contacts provide high resistance to electrical erosion, enhancing durability and performance.
This switch serves as an ideal solution for indicating signals, warning signals, and emergency signals, compliant with strict international standards such as GB/T14048.1 and IEC60947-5-1. With certifications including CE, ISO9001, ROHS, and UL, it ensures both quality and safety for various applications.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
This device is built to endure harsh conditions, making it suitable for various industrial applications. Its waterproof design further ensures functionality in wet environments, providing peace of mind when used in critical situations.

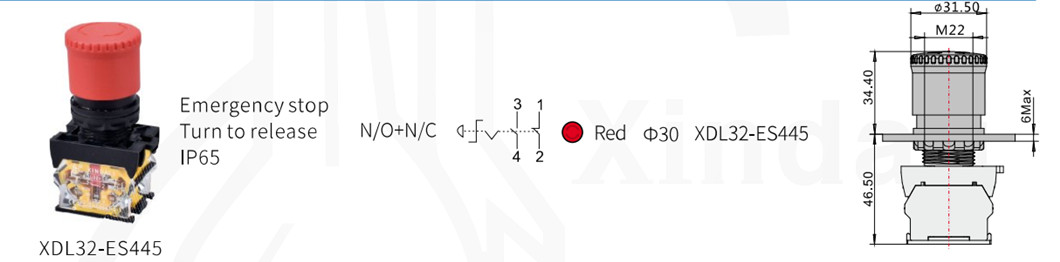

Product Show
