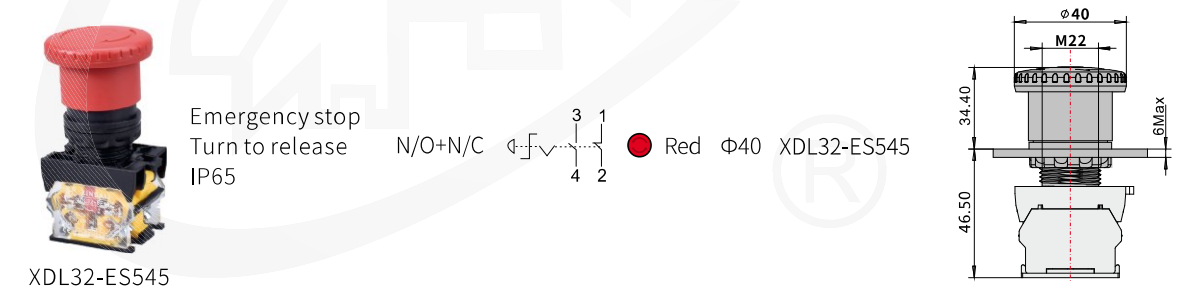

XDL32-ES545 Mushroom Emergency Stop Turn to Release Push Button Switch
Inquire NowDescription
The XDL32-ES545 Mushroom Emergency Stop Turn to Release Push Button Switch is a vital component for circuit control in various electrical applications. Designed to handle AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V, this switch is essential for safety and control in industrial environments. Its robust construction features a zinc alloy body and high-grade anti-flame plastic, ensuring durability and reliability. The contacts are made from a special silver alloy, providing excellent resistance to electrical erosion.
This emergency stop switch not only acts as a control signal but also serves as a warning and emergency signal, complying with the GB/T14048.1 and IEC60947-5-1 standards, and is certified by CE, ISO 9001, ROHS, and UL. The XDL32-ES545 is ideal for a range of applications where safety and performance are paramount.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Humidity Range | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
- Ideal for use in industrial and commercial applications where safety is critical.
- Easy to install and maintain.
- Meets international safety and quality standards.

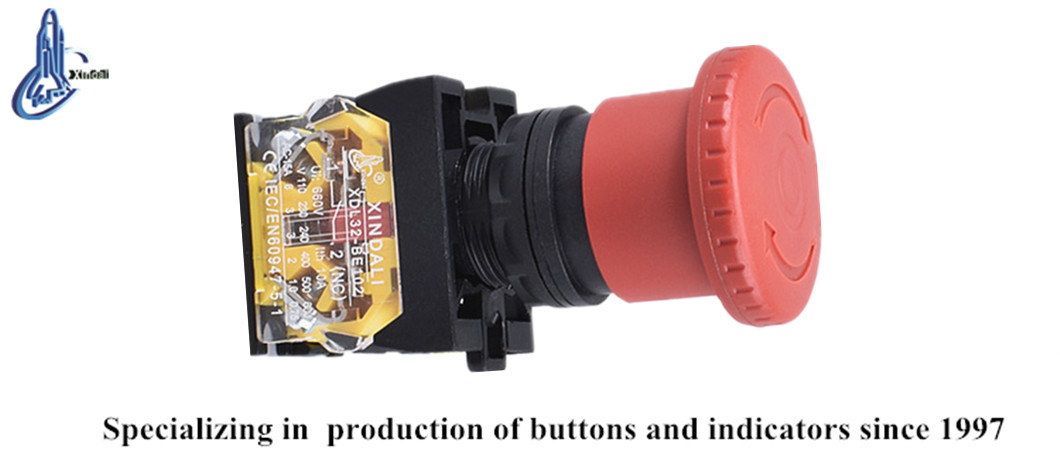

Product Show
