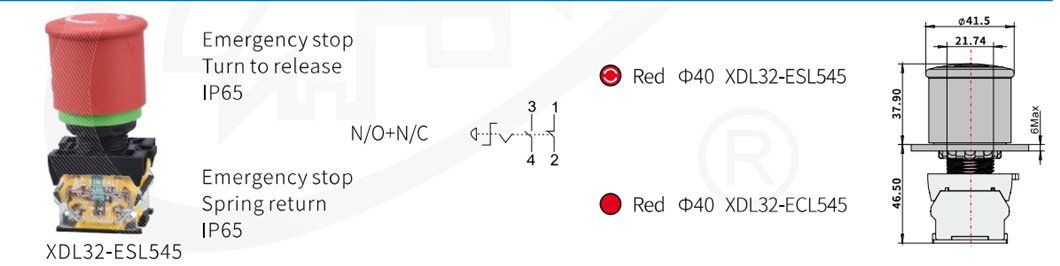

XDL32-ESL545 ip68 industrial key lock elevator emergency key push button switch
Inquire NowDescription
The XDL32-ESL545 IP68 Industrial Key Lock Elevator Emergency Key Push Button Switch is a robust and reliable component designed for controlling circuits of AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V. This versatile push button is primarily employed for controlling signals and interlocking purposes within industrial environments. Crafted with a durable zinc alloy body and high-grade anti-flame plastic, it offers exceptional resistance to electrical erosion thanks to its special silver alloy contacts. The accompanying signal lamp series is suitable for electrical appliances operating at up to 380V (50Hz) and below 380V DC, making it ideal for indicating, warning, and emergency signals. The product meets rigorous standards, including GB/T14048.1 and IEC60947-5-1, and is certified by CE, ISO 9001, RoHS, and UL.
Specifications
| Basic Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient temperature | Operating temperature: -5℃ to +55℃ Storage temperature: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300,000 operations (push and pull type) Emergency button: 30,000 operations |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
The XDL32-ESL545 is designed to operate efficiently in various environmental conditions, making it a perfect choice for elevator systems and industrial applications requiring reliable emergency signaling and control.

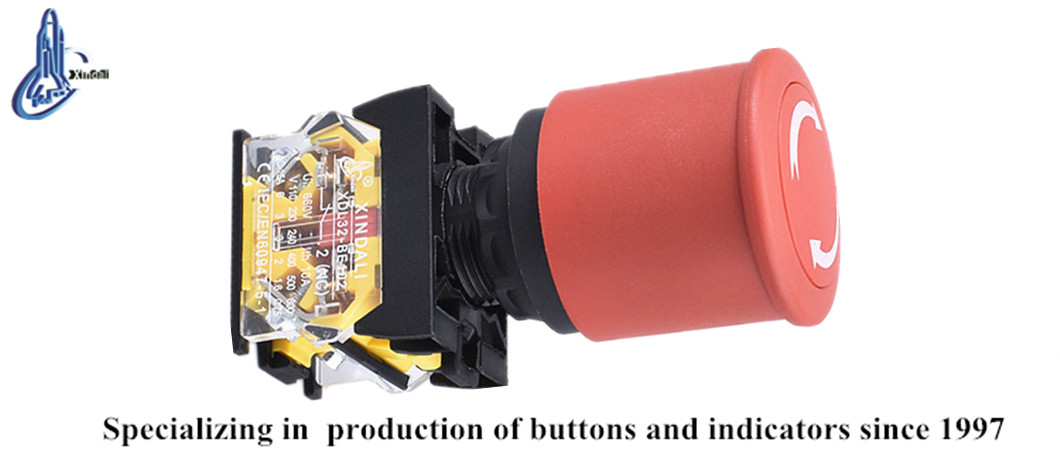

Product Show
