XDL32-ESLW545 22mm Mushroom Estop Switch Emergency Stop Button with LED Indicator
Inquire NowDescription
The XDL32-ESLW545 22mm Mushroom Estop Switch is a highly reliable emergency stop button designed for controlling electrical circuits. It can handle AC voltage up to 660V and DC voltage below 400V, making it suitable for various industrial applications. Crafted from durable zinc alloy and high-grade anti-flame plastic, this switch ensures longevity and safety. The special silver alloy contacts provide excellent resistance to electrical erosion, ensuring consistent performance over time. Additionally, the built-in LED indicator enhances visibility, making it ideal for use as an emergency signal, warning signal, or indicating signal in various environments. This product is compliant with GB/T14048.1 and IEC60947-5-1 standards and carries multiple certifications, including CE, ISO 9001, ROHS, and UL.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation type | Class III |
| Protection grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 Emergency button: 30*10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
- Ideal for industrial applications where safety is critical.
- Easy installation with a robust design to withstand harsh environments.

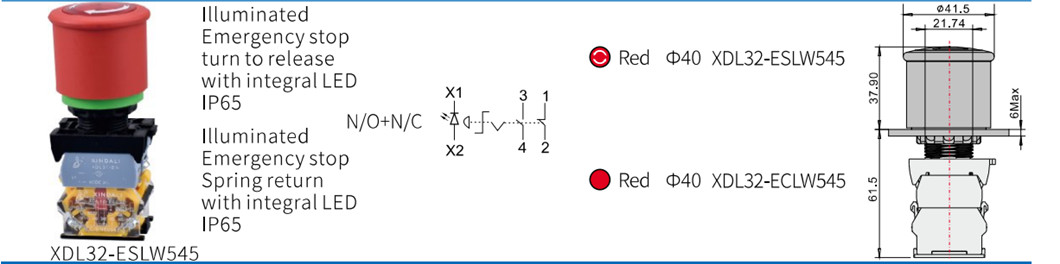

Product Show
