XDL32-ET45 Waterproof 40mm Red Mushroom Head Electric Push Pull Pushbutton Switch
Inquire NowDescription
The XDL32-ET45 Waterproof 40mm Red Mushroom Head Electric Push Pull Pushbutton Switch is an essential component for controlling AC voltage circuits up to 660V at 50Hz or 60Hz, and DC voltage below 400V. This versatile switch is ideal for signal control and interlocking purposes. Constructed with a robust zinc alloy body and high-grade, anti-flame plastic, it ensures durability and reliability in various applications. The switch features a special silver alloy contact to resist electrical erosion, making it suitable for demanding environments. With compliance to GB/T14048.1 and IEC60947-5-1 standards, it is CE, ISO9001, RoHS, and UL certified, ensuring top-notch quality and safety. This pushbutton switch is perfect for use as indicating signals, warning signals, or emergency signals in electrical appliances.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Air Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 push and pull type; Emergency button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |

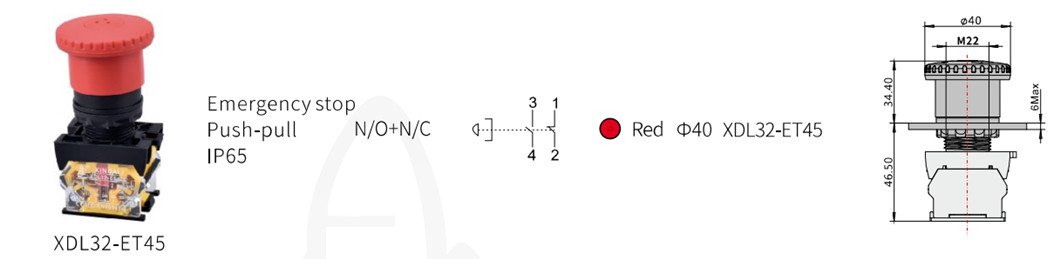

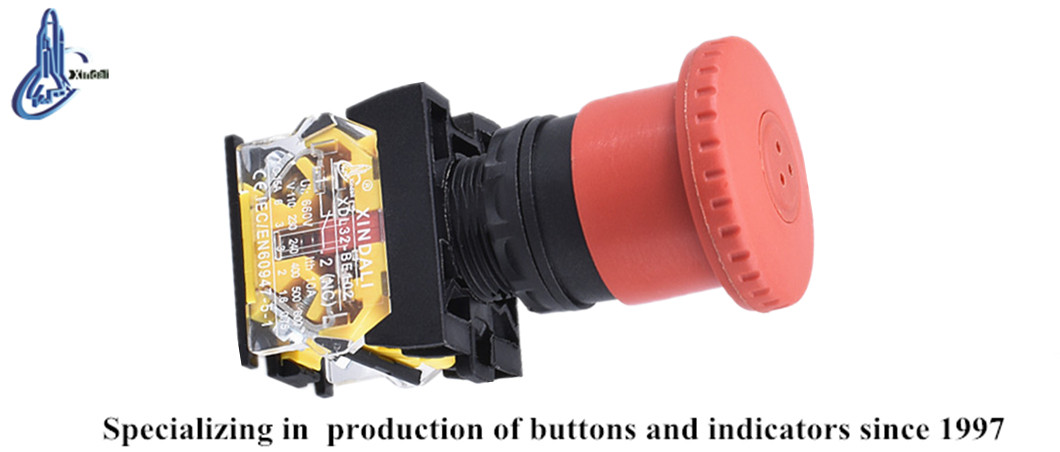

Product Show
