XDL32-ETB545 ip68 waterproof emergency stop pushbutton switches with windows
Inquire NowDescription
The XDL32-ETB545 is an IP68 waterproof emergency stop pushbutton switch equipped with windows, designed for reliable operation in challenging environments. This robust pushbutton series is engineered for controlling circuits of AC voltage up to 660V/50Hz or 60Hz and DC voltage below 400V. Ideal for controlling signals and interlocking purposes, its main body is constructed from a durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The contact utilizes a special silver alloy, providing exceptional resistance to electrical erosion. This switch is suitable for a range of applications, including indicating, warning, and emergency signals. It adheres to strict standards, including GB/T14048.1 and IEC60947-5-1, and is certified by CE, ISO9001, RoHS, and UL.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ ~ +55℃, Storage: -25℃ ~ +70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40 IP54, Protection: IP65 IP66 IP67 IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type, Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |

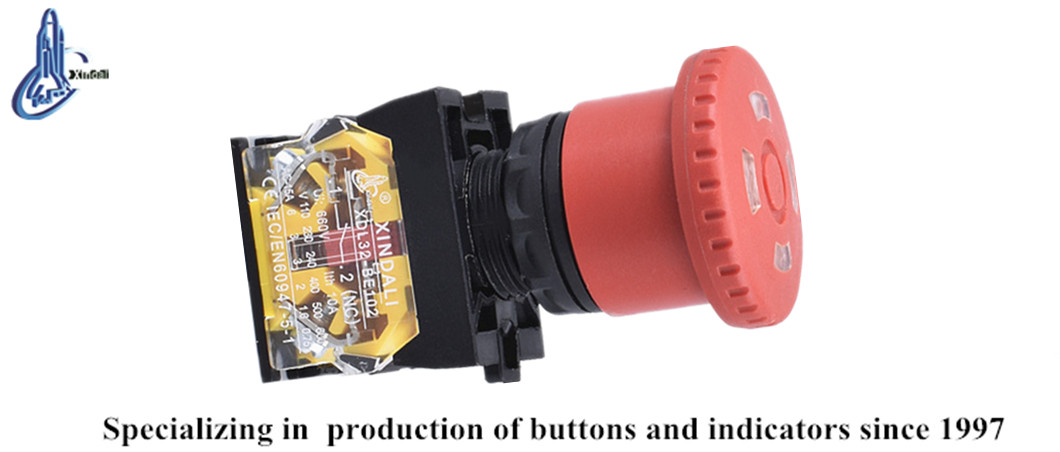

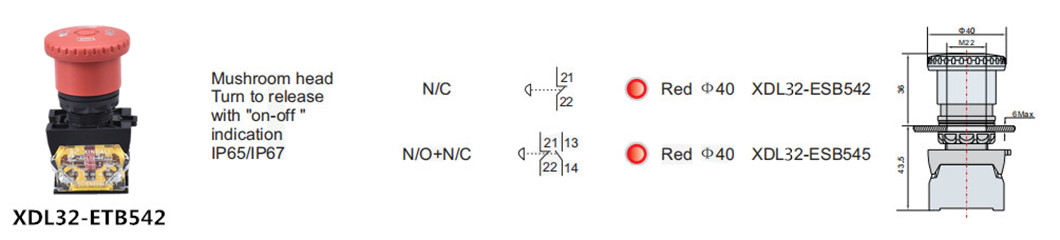

Product Show
