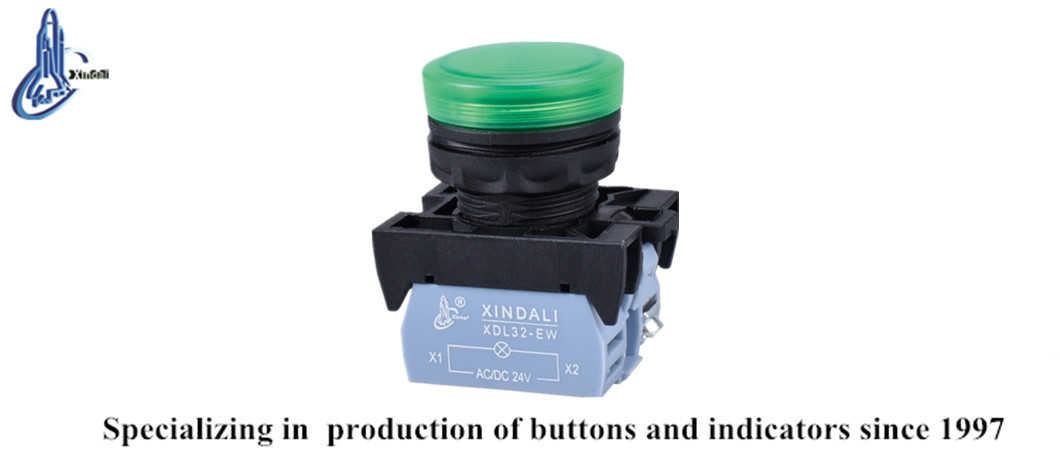

XDL32-EV63 Green Lamp Indicator and Pushbutton LED Switch with Light
Inquire NowDescription
The XDL32-EV63 Green Lamp Indicator and Pushbutton LED Switch with Light is a versatile and reliable component designed for controlling electrical circuits. This dual-function device operates effectively with AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V. It’s ideal for signal control and interlocking systems. Constructed with a robust zinc alloy body and high-grade anti-flame plastic, this switch promises durability and safety. The special silver alloy contacts ensure high resistance to electrical erosion, enhancing the longevity of the device.
Perfect for a variety of applications, the signal lamp series is suitable for electrical appliances operating on AC voltage up to 380V and DC voltage under 380V, making it perfect for indicating, warning, or emergency signals. The XDL32-EV63 complies with GB/T14048.1 and IEC60947-5-1 standards, and is CE, ISO9001, RoHS, and UL certified, ensuring you receive a product that meets high safety and quality standards.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1; GB/T14048; GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Relative Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
For optimal performance, ensure that the installation follows the specified guidelines for maintaining the integrity of the device. This pushbutton switch is perfect for applications in industrial settings where reliability and operational safety are paramount.
