Xinnuo Roll Up shutter Door cold roll forming machine

Inquire Now

Description

The Xinnuo Roll Up Shutter Door Cold Roll Forming Machine is expertly designed for producing high-quality roller shutter doors with advanced thermal insulation features. This machine is capable of processing various steel plates, ensuring precision and durability. With its user-friendly PLC control system, it streamlines production while maintaining operational efficiency and minimizing noise during use. Ideal for commercial and industrial settings, this machine combines modern technology with robust construction for dependable performance.

Specifications

Feature Details
Suitable Steel Plate Color Steel Plate
Thickness 0.6-1.2mm
Feeding Width 1250mm
Processing Precision Within 1.00mm
Production Speed 8-12m/min
Roller Stand 18-25 rows
Diameter 42mm
Main Power 3kw
Pump Power 3kw
Side Panel of Machine 14mm
Roller Material Carbon Steel 45#
Blade Material Cr12
Control System PLC Control
Voltage 380V 50Hz 3 phases (changeable as needed)

Additional Information

Advantages of the Machine:

  • Appearance and durability: Constructed from high-quality steel plates, offering insulation against heat and sound.
  • Fast operation: Swift startup and minimal noise, ensuring efficient production.
  • Durable: Built to withstand slight collisions, automatically returning to shape.
  • Space-saving design: Optimizes installation space while providing full functionality.

Product Display

shutter door roll forming machine
roller shutter door forming machine

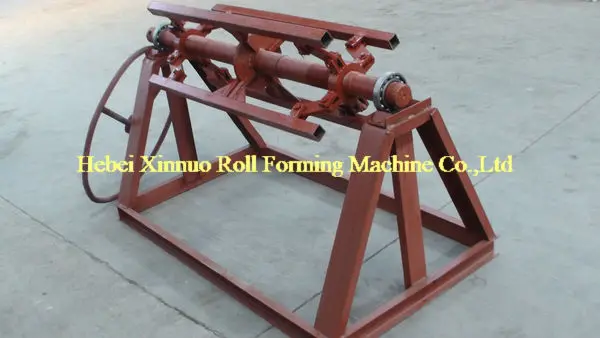

manual uncoiler

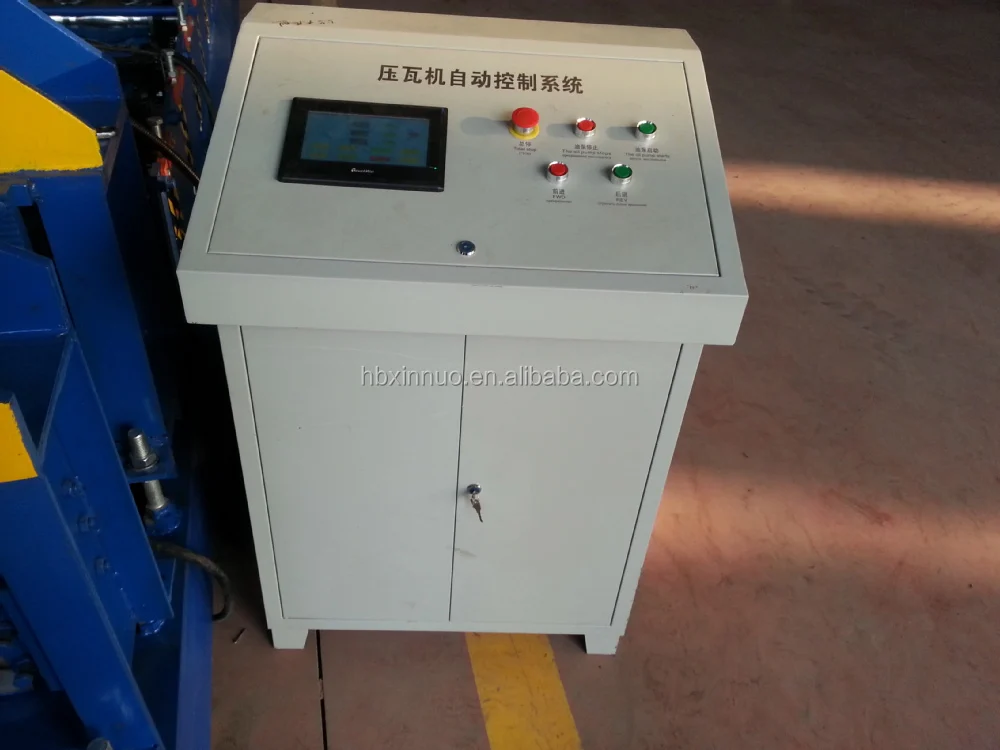

PLC control system
