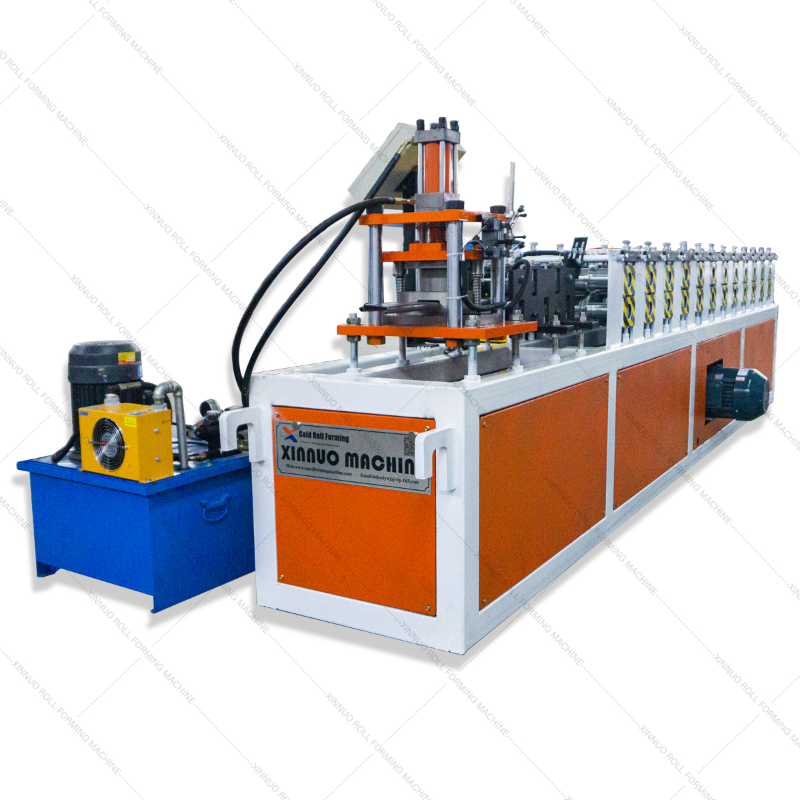

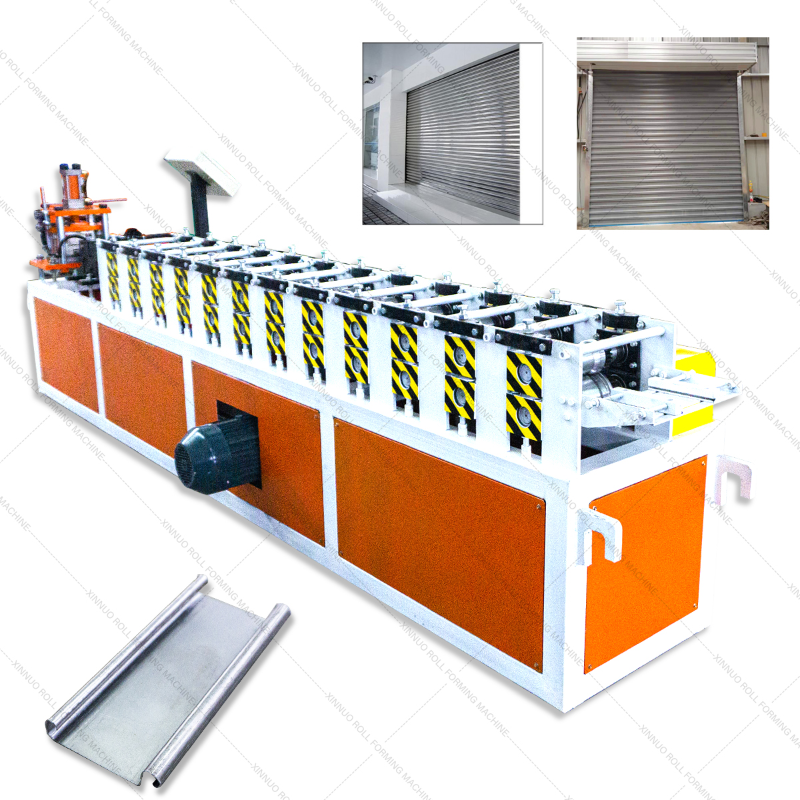

Xinnuo Roll Up shutter Door cold roll forming machine
Inquire NowDescription
The Xinnuo Roll Up Shutter Door Cold Roll Forming Machine is a state-of-the-art equipment designed to manufacture thermal insulation shutter doors. Engineered for efficiency and durability, this machine utilizes high-quality materials and advanced technology to deliver superior performance. Its precise production capabilities ensure that the doors meet specific user requirements while maintaining high standards of insulation and soundproofing. The machine operates quietly and swiftly, making it ideal for industrial applications.
Specifications
| Feature | Details |
|---|---|
| Suitable Steel Plate | Color steel plate |
| Thickness | 0.6-1.2mm |
| Feeding Width | 1250mm |
| Processing Precision | Within 1.00mm |
| Production Speed | 8-12m/min |
| Roller Stand | 18-25 rows |
| Diameter | 42mm |
| Main Power | 3kw |
| Pump Power | 3kw |
| Side Panel of Machine | 14mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12 |

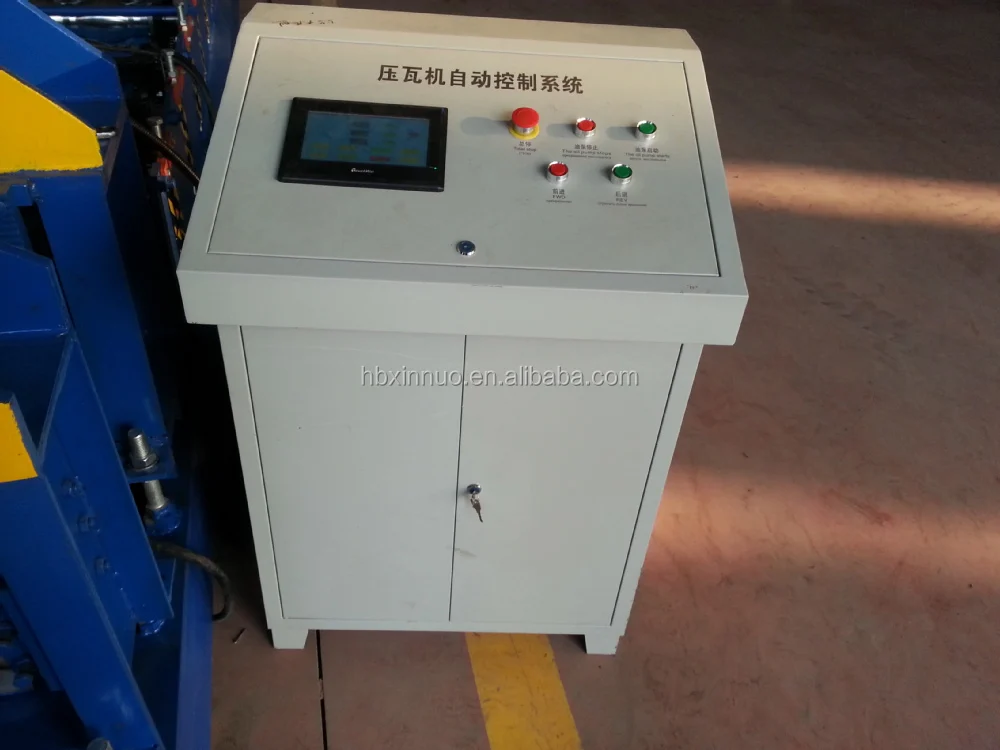

| Control System | PLC control |
| Voltage | 380V 50Hz 3 phases (changeable as needed) |
Additional Information
Advantages of the Machine:
1. Appearance and durability: Made from high-quality steel plates, ensuring insulation and soundproofing without using polyurethane foaming materials.
2. Fast operation: Quick startup with minimal noise, especially when using motor drive systems.
3. Durability: Built with high-quality materials and advanced technology to withstand minor collisions and maintain structural integrity.
4. Space-saving design: Features a compact construction that conserves building space and simplifies installation.

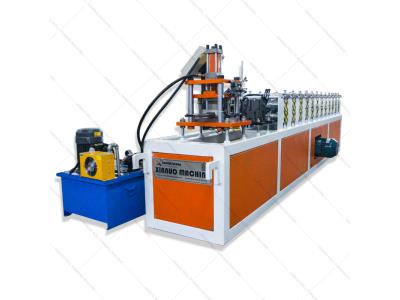

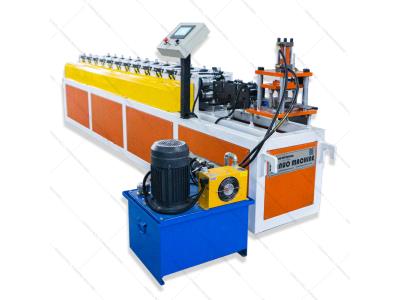

Product Display
