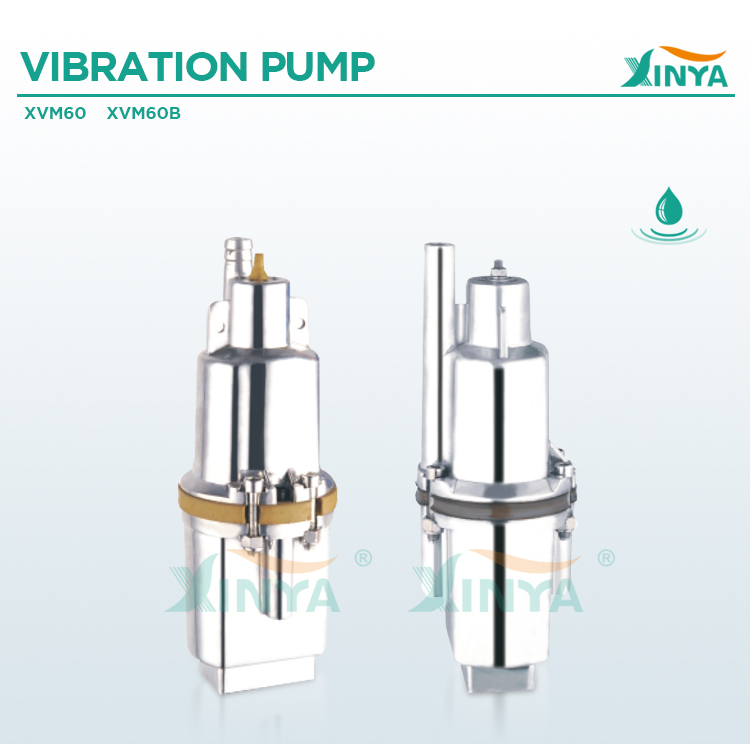

XINYA 250w high head vibration pump submersible water pump for Russia （XVM60）
Inquire NowXVM series clean-water submersible pump is the most extensively used pump suitable for arable land irrigation,mine water drainage,as well as for flood control campaign,It is compactness in construction,tightness in sealing quality,high efficiency in energy-conservation.and long durability for use aswell.lt is suitable for river,lake and well etc.

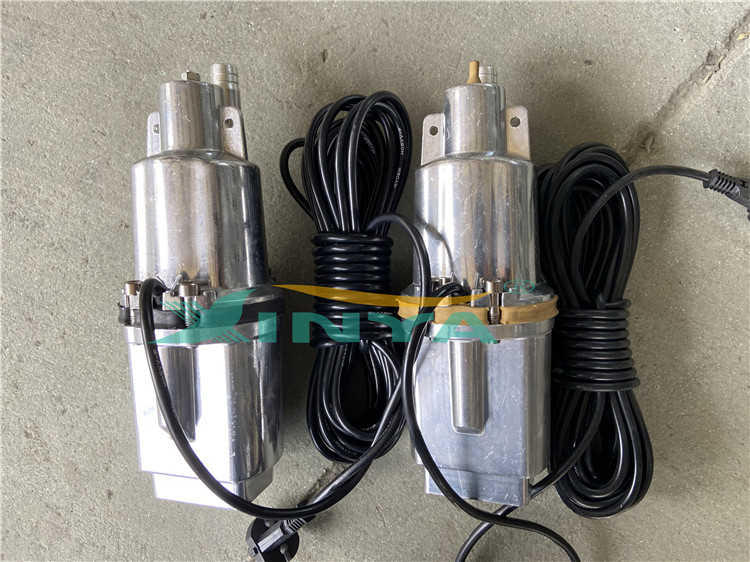

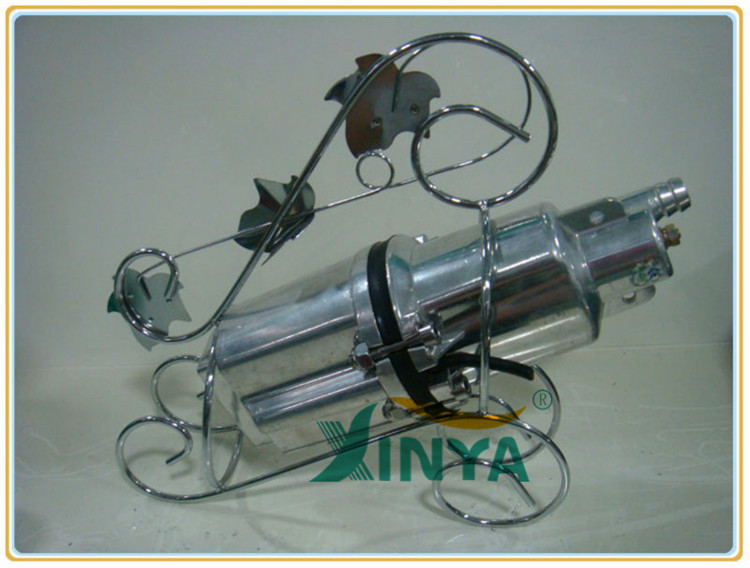

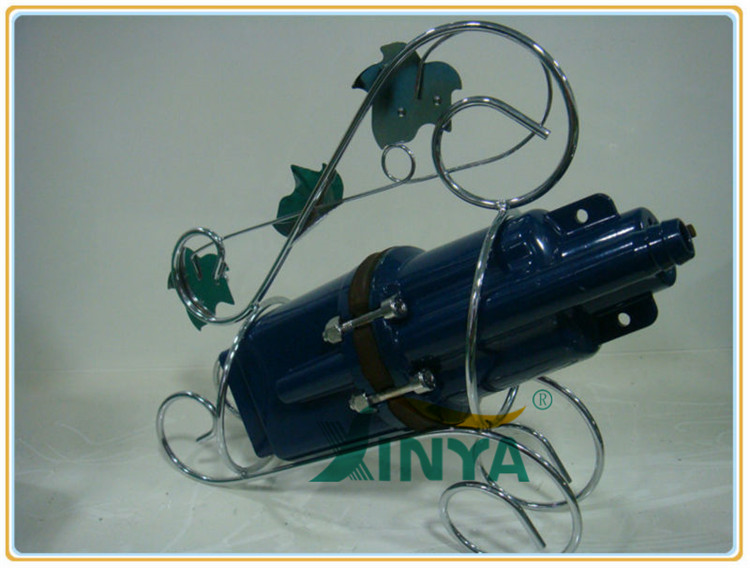

Production Photo

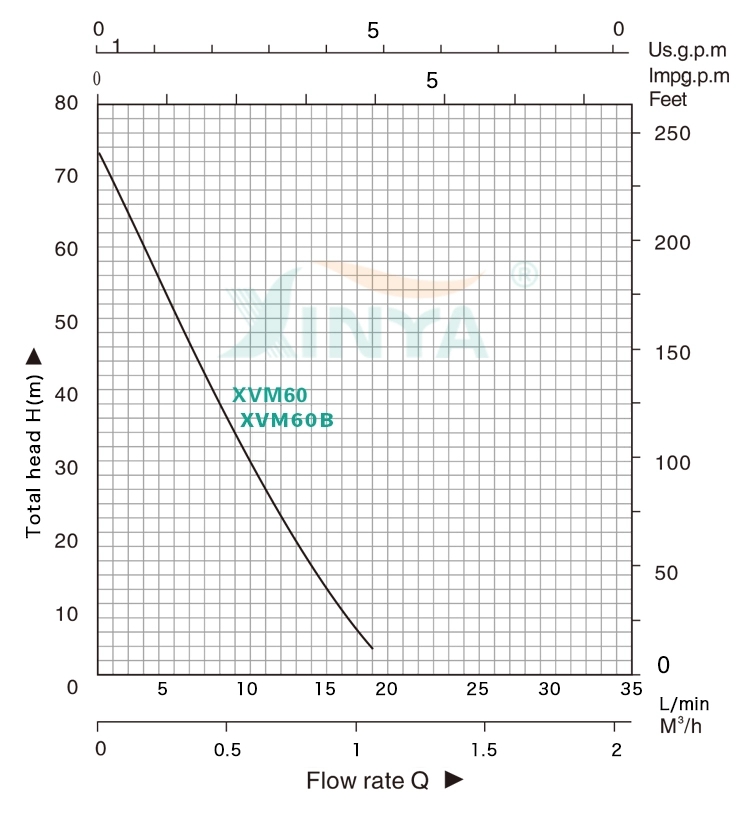

Technical Date
|
TECHNICAL DATA |
|
| Model | VMP60 / XVM60 |
| Voltage/Frequency | 230V/50HZ (110/60HZ can be chosen) |
| Power | 0.25 KW/ 0.33 HP |
| Max flow | 18 L/MIN |
| Max head | 60-70 M |
| Outlet | 1/2” |
| Gross.weight | 3.5 kg |
| Max working pressure | 8 bar |
| Free accessories | 1 rope; 1 clap |
| Packing size | 15*10*28 CM |
| Quantity | 5000 PCS/20GP |
| Degree of protection | IP 68 |
| Insulation class | B |
| Warranty | One year |
|
USE SITUATION |
|
| Fluid temperature range | 1-40 °C |
| Suitable water | Clean water |
|
MATERIALS |
|
| Pump body | Aluminum |
| Motor body | Aluminum |
| Shaft | # 45 Steel |
| Impeller | Rubber |

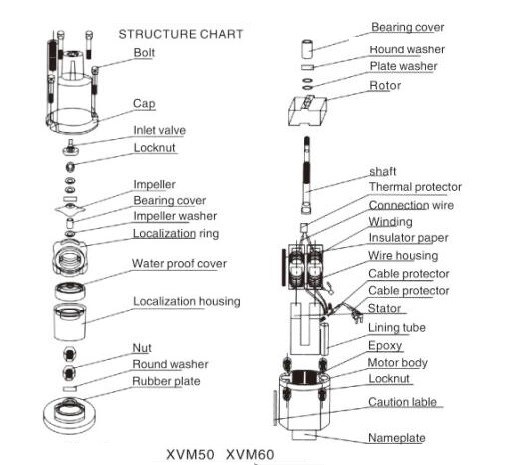

Structure
Set Accessories

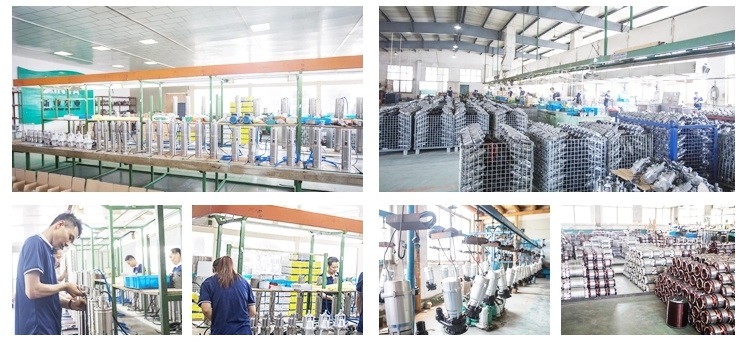

Workshop
Advantage
Certification

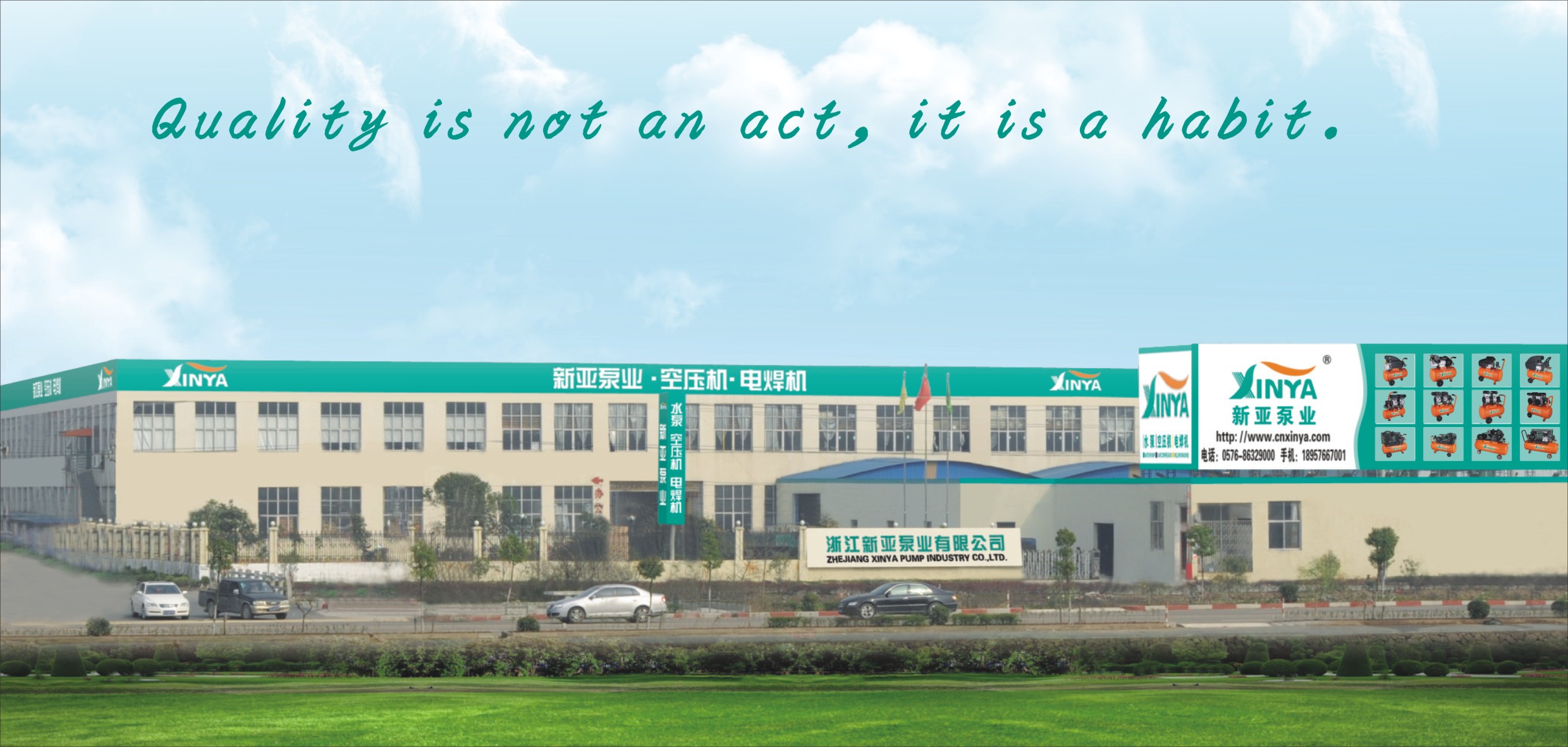

Company
Workshop

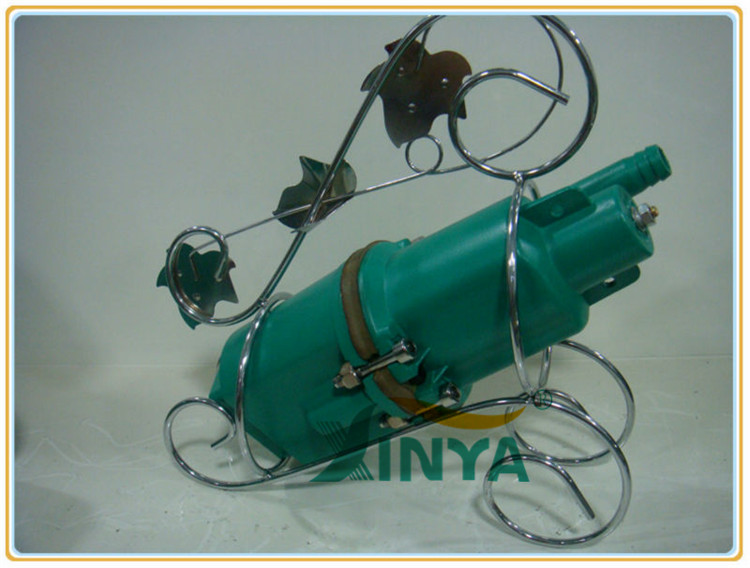

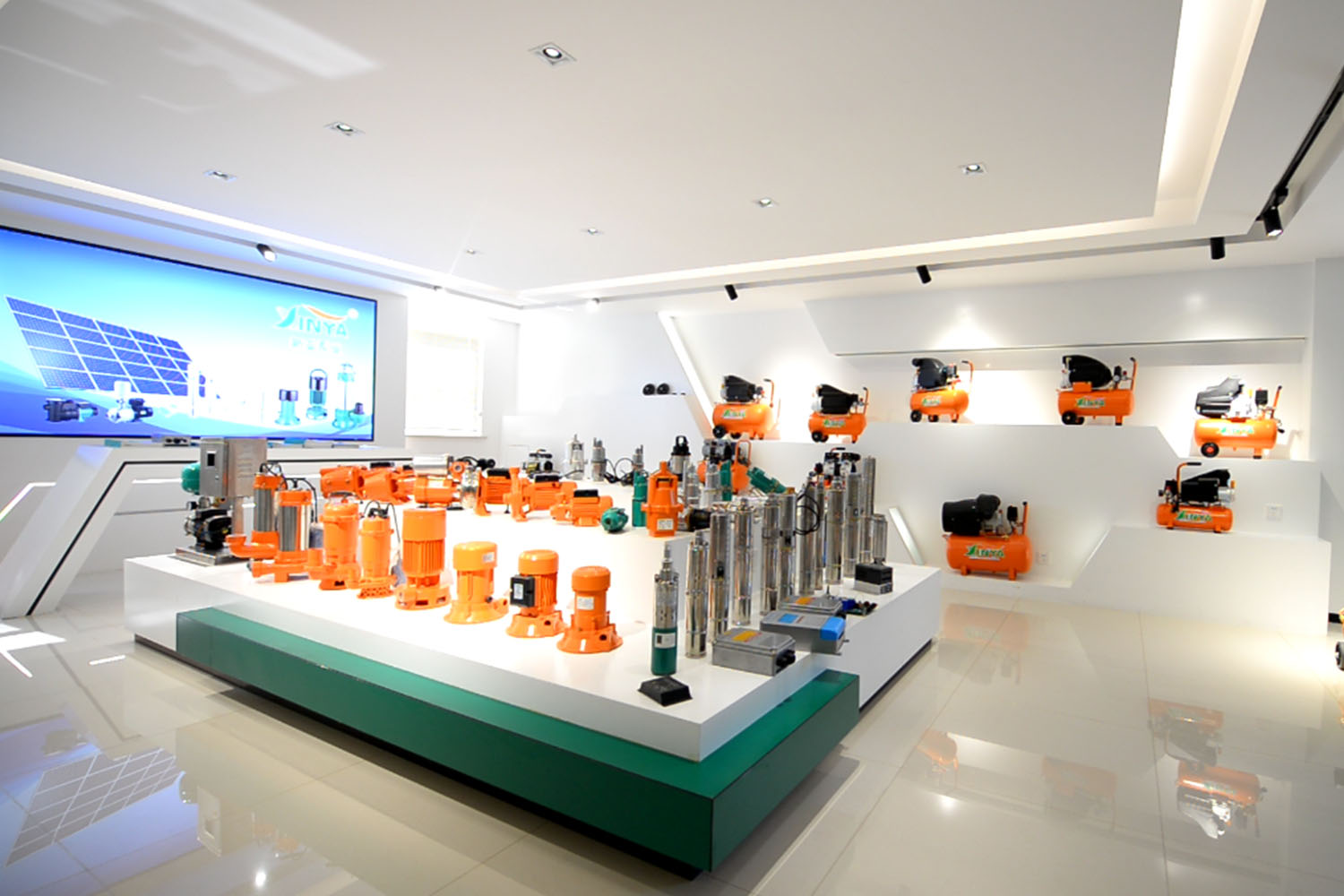

Sample Room
Exhibition

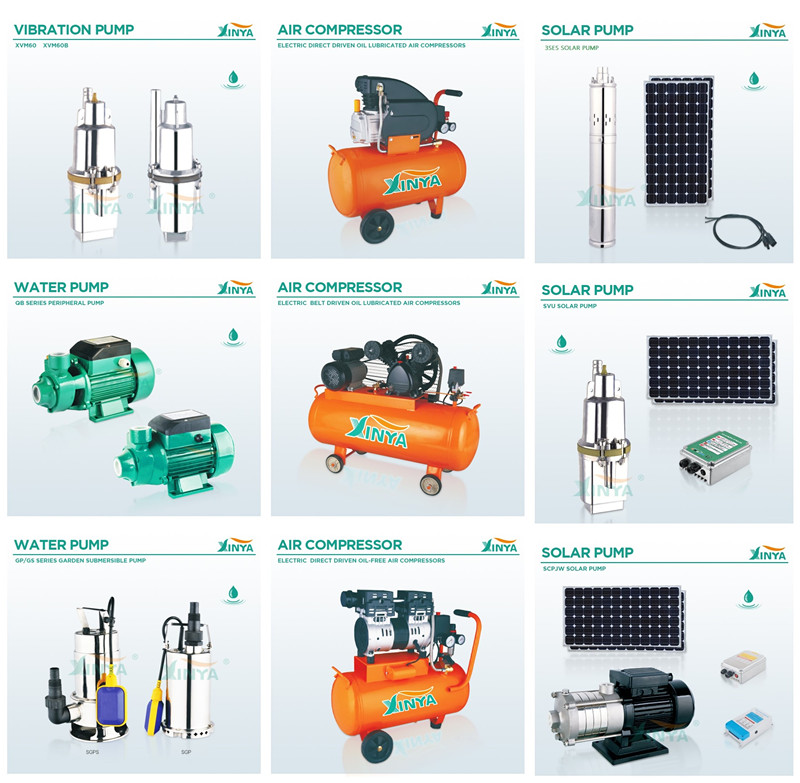

Other Recommendation
