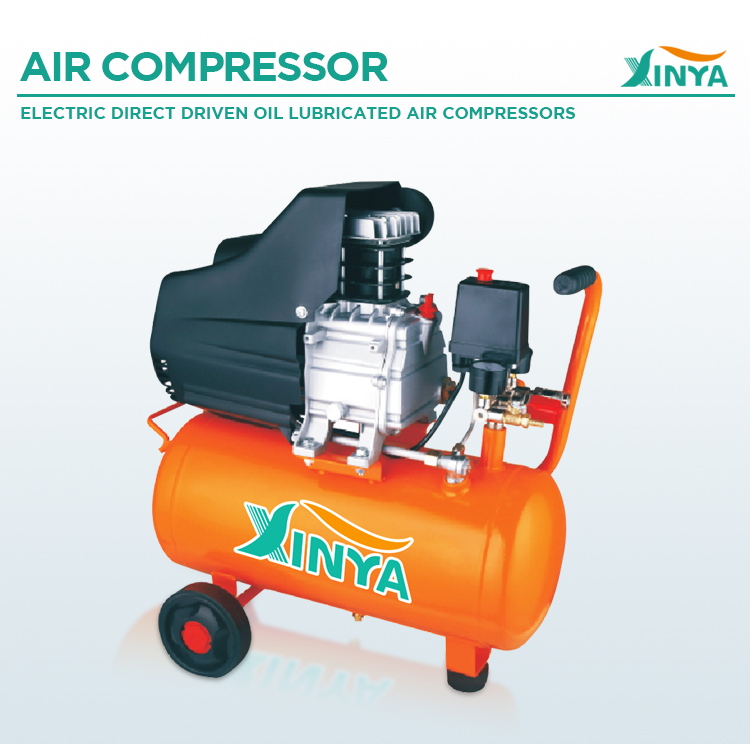

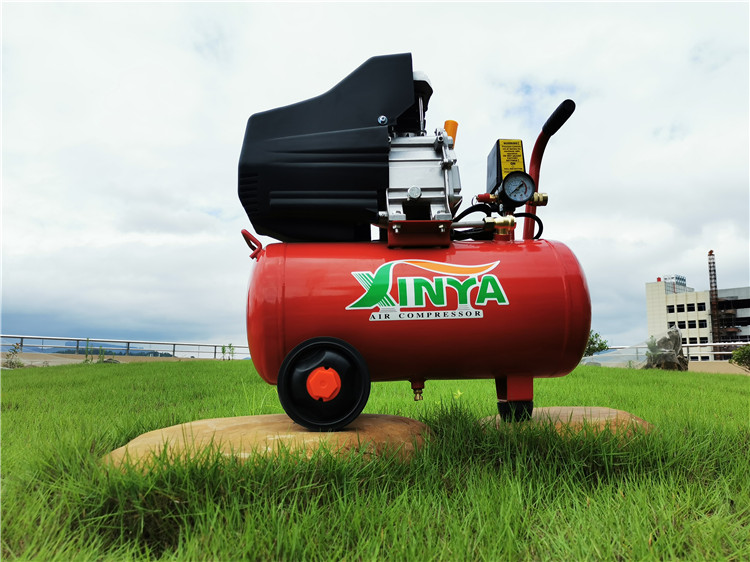

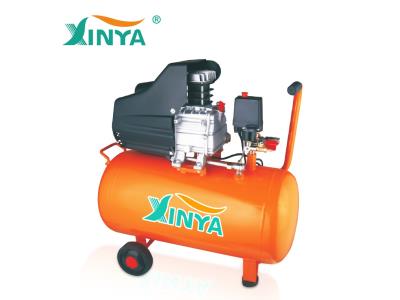

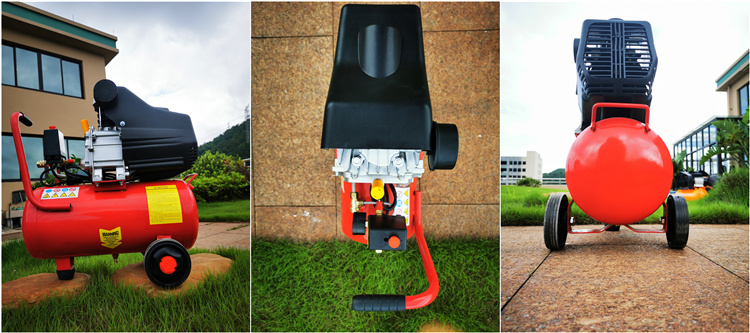

XINYA BM style 13 gallon oil Lubricated Piston driven air compressors for home (XYBM50)
Inquire NowDescription
The XINYA BM style 13-gallon oil-lubricated piston-driven air compressor (Model: XYBM50) is designed for both home and workshop use, providing reliable performance and efficiency. This robust compressor features an induction motor that operates at both 127V and 230V, ensuring versatility for various applications. Equipped with a thermal protection system, it safeguards the motor from overheating, enhancing durability and longevity.
Crafted with an aluminum cylinder head and crankcase, the compressor promotes superior heat dissipation, while its durable cast iron cylinder ensures maximum strength. The aluminum piston, combined with high-alloy piston rings, allows for efficient load handling. Additional features include an easy-open drain valve, a pressure switch with cut-in/cut-off settings, and a regulator with an integrated gauge to monitor pressure levels easily. Designed for portability, it includes a carry handle and has a plastic-coated tank for added convenience.
Specifications
| Model | XYBM50 |
|---|---|
| Voltage | 220V |
| Frequency | 50HZ |
| Motor | 1.2KW (1.5HP) |
| Tank Capacity | 50L |
| Cylinder Diameter | 47mm |
| Piston Count | 1 pc |
| Max Air Flow | 188L/min (6.6cfm) |
| Speed | 2850 r.p.m |
| Max Pressure | 8 bar (115 psi) |
Additional Information
For optimal performance, it is recommended to regularly check and maintain the air compressor, ensuring that all components are functioning correctly. The compressor is ideal for various applications, including inflating tires, powering air tools, and more. It is built for longevity and ease of use, making it an essential addition to any workshop or home garage.
