XINYA FL oil lbricated 50 liter direct drive piston air compressor (CEFL50)
Inquire Now
1. induction motor: 127V and 230V;
2. motor with thermal protection system;
3. aluminum cylinder head and crankcase for better heat dissipation;
4. durable cast iron cylinder;
5. aluminum piston and hig alloy pistion rings for high loading;
6. easy-open drain valve;
7. pressure switch with cut-in/cut-off pressure setting;
8. regulator with gauge to show pressure;
9. quick connector is available;
10. carry hand for easy moving;
11. plastic coating tank;

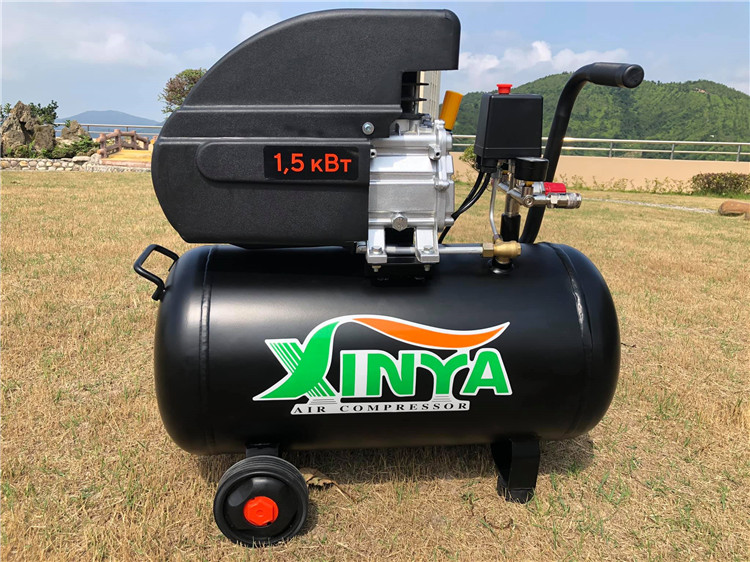

Production Photo
Technical Date
| Model | CEFL50 |
| Voltage | 220V |
| Frequency | 50HZ |
| Motor | 1.5KW (2HP) |
| Tank | 50L |
| Cylinder | 47mm |
| Piston | 1 pc |
| Max Air FLow | 198L/min (7cfm) |
| Speed | 2850r.p.m |
| Pressure | 8bar (115psi) |
Production character
1. induction motor: 127V and 230V;
2. motor with thermal protection system;
3. aluminum cylinder head and crankcase for better heat dissipation;
4. durable cast iron cylinder;
5. aluminum piston and hig alloy pistion rings for high loading;
6. easy-open drain valve;
7. pressure switch with cut-in/cut-off pressure setting;
8. regulator with gauge to show pressure;
9. quick connector is available;
10. carry hand for easy moving;
11. plastic coating tank;
Exploded View

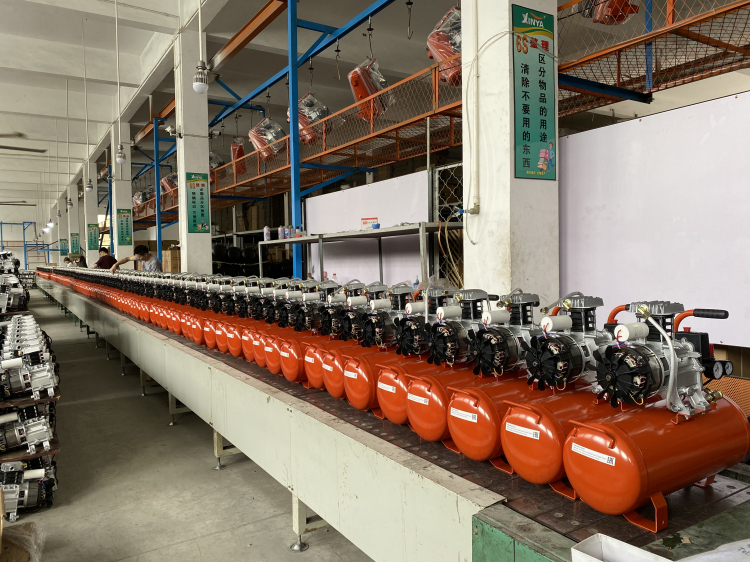

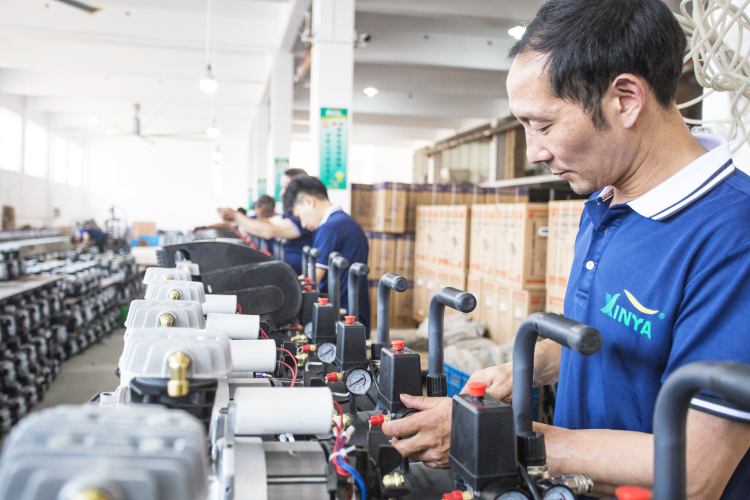

Workshop
PACKAGE
Application
Certification
Company
Sample Room
Exhibition
Other Recommendation
