XINYA QB electric Booster pump Vortex pump clean water pumps (QB60)
Inquire NowDescription

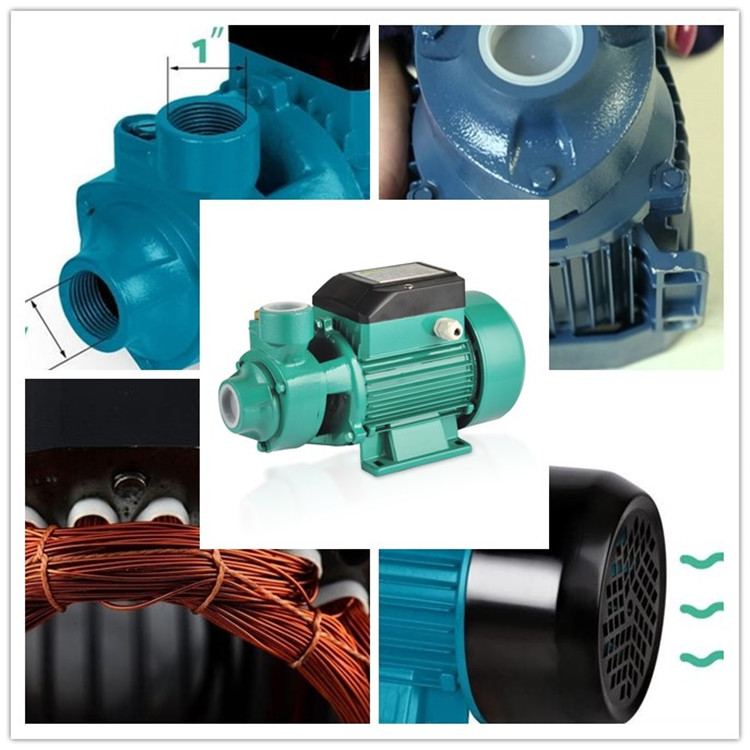

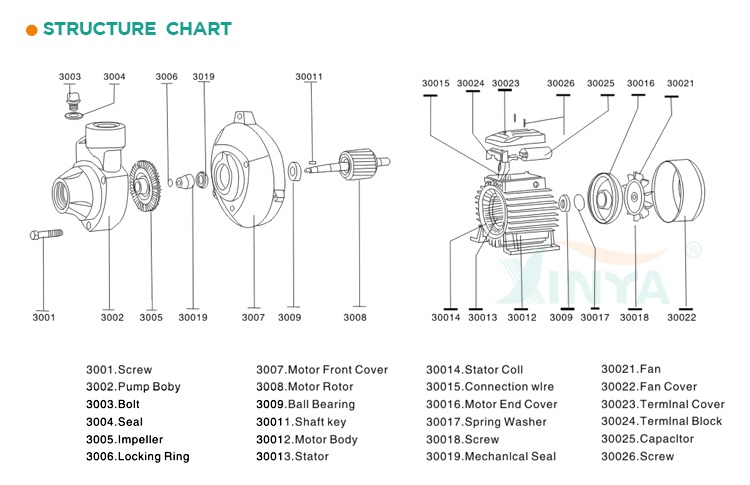

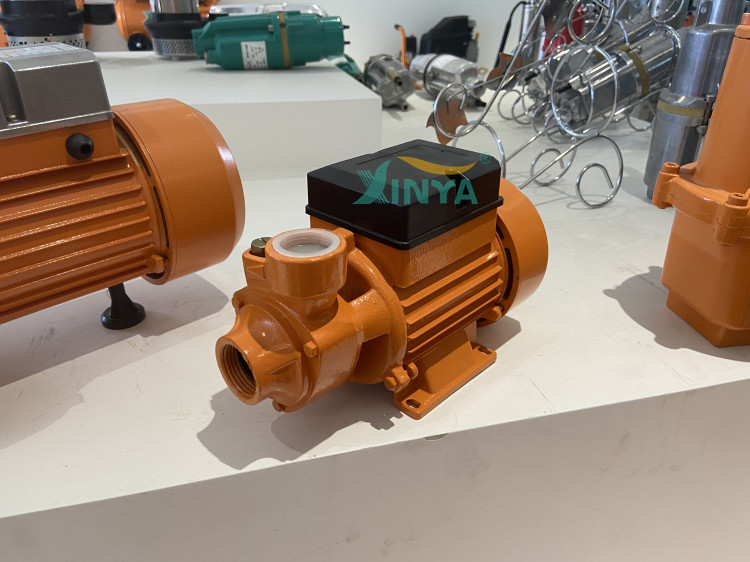

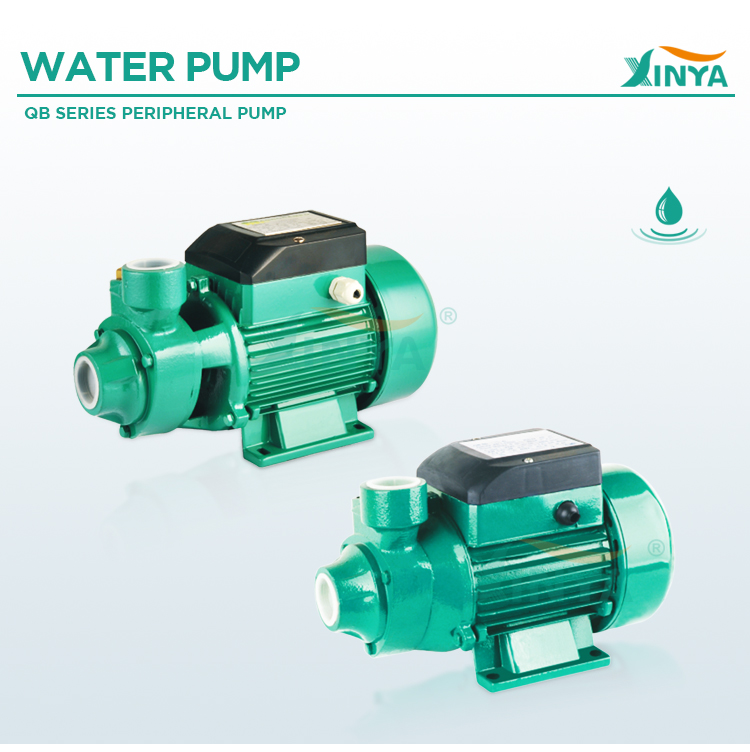

The XINYA QB electric Booster Pump (Model: QB60) is a high-performance vortex pump designed specifically for pumping clean water. Ideal for domestic applications, it excels in tasks such as supplying water from wells, gardening, and working seamlessly in automated water supplying systems when combined with compatible equipment. The QB series vortex electric pump features a compact structure composed of three essential parts: a powerful asynchronous motor, a vortex-type water pump, and a reliable seal. Its lightweight design and straightforward installation make it a convenient choice for homeowners and garden enthusiasts alike.
This pump boasts impressive efficiency, energy-saving capabilities, and safety features, ensuring reliable operation over time. For optimal functionality, the pump must be filled with clean water or non-corrosive liquids, free from sand or solid impurities.
Specifications
| Attribute | Details |
|---|---|
| Brand | XINYA or OEM |
| Model | QB60 |
| Max Flow | 35 L/min |
| Max Head | 32 m |
| Speed | 2850 rpm |
| Power | Electric drive |
| Voltage | 220V/50HZ, 110V/60HZ |
| Pump Head | Cast iron |
| Pump Body | Aluminum |
| Impeller | Copper |
| Impeller Structure | Closed impeller |
| Impeller Quantity | Single |
| Suction | Single suction |
| Shaft Position | Horizontal |
| Conveying Medium | Clean water |
| Cooling | External ventilation |
| Use Situation | Max fluid temperature: 60℃; Max environment temperature: 40℃; Volume ratio of solid impurities ≤ 0.1%, particle size ≤ 0.2mm |
Additional Information
The XINYA QB60 electric pump is versatile and can be employed in various applications including:
- Household water intake
- Underground pumping
- Tap water pipe pressurization
- Water heater pipe pressurization
- Solar energy pressurization
- Garden irrigation
- Vegetable greenhouse watering
- Water supply and drainage in the breeding industry
