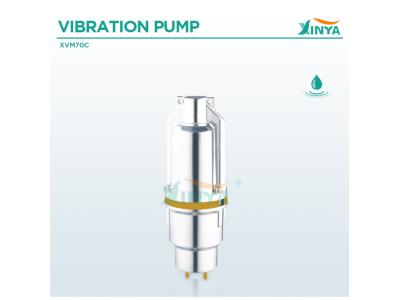

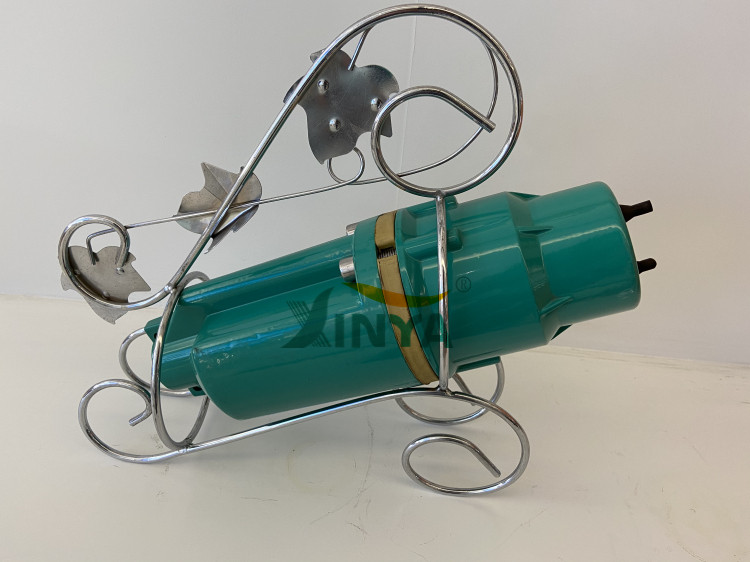

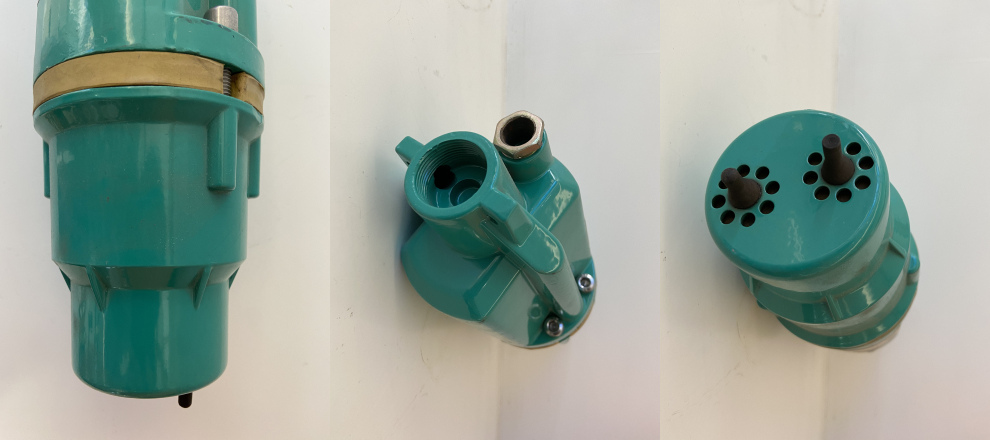

XINYA submerged vibration diaphragm well water lifting pump (VMP70C-10m)
Inquire NowDescription
The XINYA submerged vibration diaphragm well water lifting pump (VMP70C-10m) is engineered for versatility and efficiency. Ideal for arable land irrigation, mine water drainage, and flood control campaigns, this compact and durable submersible pump is designed to excel in various environments, including rivers, lakes, and wells. With its high efficiency and energy-conserving capabilities, it guarantees long-lasting performance, ensuring you have reliable water lifting solutions when you need them most.
Specifications
| Attribute | Details |
|---|---|
| Model | XVM70C |
| Voltage/Frequency | 230V/50Hz |
| Power | 330 W / 0.45 HP |

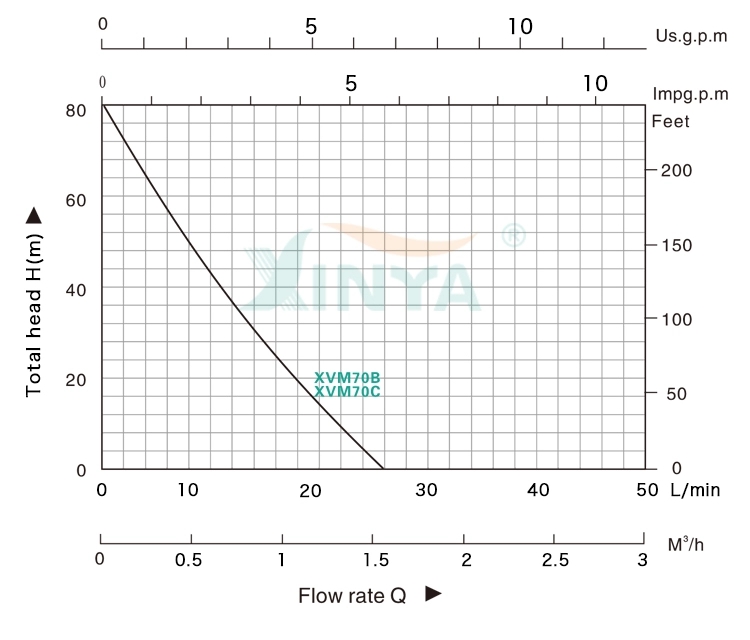

| Max Flow | 25 L/MIN |
| Max Head | 80 M |
| Outlet | 3/4” |
| Gross Weight | 4.3 kg |
| Max Working Pressure | 8 bar |

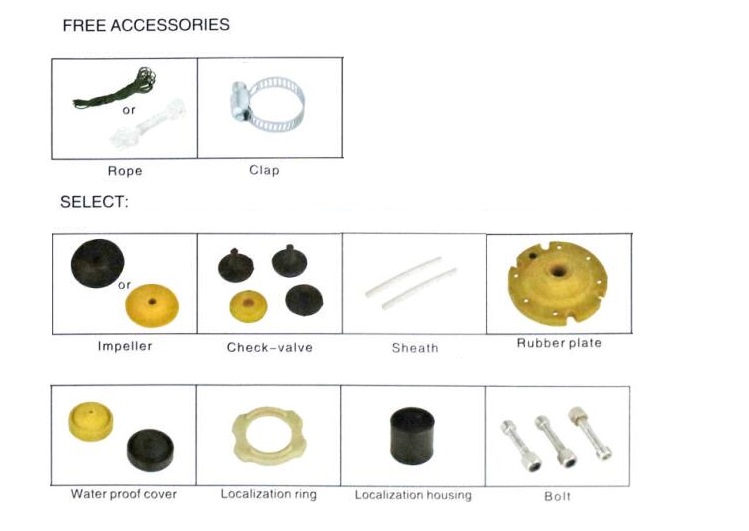

| Free Accessories | 1 rope; 1 clap |
| Packing Size | 31*16*11 CM |
| Quantity | 4400 PCS/20GP |
| Degree of Protection | IP 68 |
| Insulation Class | B |
| Warranty | One year |
| Fluid Temperature Range | 1-40 °C |
| Suitable Water | Clean Water |
| Pump Body Material | Aluminum |
| Motor Body Material | Aluminum |
| Shaft Material | # 45 Steel |
| Impeller Material | Rubber |
Additional Information
- Perfect for agricultural applications, mining, and flood control.
- Compact design allows for easy transport and installation.
- Durable construction ensures long-term reliability.
- One-year warranty for peace of mind.
