XLPE Insulated Armoured Electrical Cable Cu/XLPE/SWA/PVC 0.6/1kV IEC 60502-1
Inquire NowMulti-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
CU/XLPE/SWA/PVC 0.6/1KV
Armoured cable for fixed installations. Rated voltage 0.6/1 KV
Description:

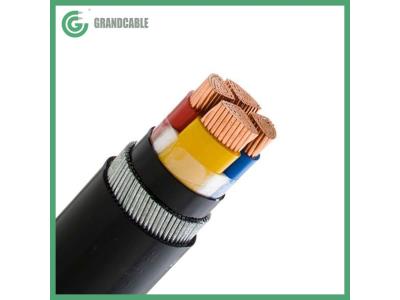

Electric cable with copper conductors, XLPE insulation, PVC bedding, galvanized steel wires armour (SWA) and PVC outer sheath
Application
Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
Applicable Standards
IEC 60228, IEC 60502-1
Cable Construction
1.Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
2.Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
3.Inner sheath :PVC
4.Armored :Galvanized Steel Wire.
5.Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Dimension Characteristics
| Section | Insulation Thickness | Sheath Thickness | Overall Diameter | Cable Weight | DC. Electrical Resistance at 20°C | ||
| No.xmm2 | mm | mm | mm | Cu | Al | Cu | Al |
| kg/km | Ω/km | ||||||
| 2×4 | 0.7 | 1.8 | 16.8 | 447 | 397 | 4.61 | 7.41 |
| 2×6 | 0.7 | 1.8 | 17.8 | 520 | 444 | 3.08 | 4.61 |
| 2×10 | 0.7 | 1.8 | 21.3 | 835 | 708 | 1.83 | 3.08 |
| 2×16 | 0.7 | 1.8 | 23.3 | 1024 | 823 | 1.15 | 1.91 |
| 2×25 | 0.9 | 1.8 | 27.4 | 1512 | 1195 | 0.727 | 1.20 |
| 2×35 | 0.9 | 1.8 | 28.6 | 1740 | 1307 | 0.524 | 0.868 |
| 2×50 | 1.0 | 1.8 | 31.6 | 2136 | 1550 | 0.387 | 0.641 |
| 2×70 | 1.1 | 2.0 | 35.4 | 2735 | 1886 | 0.268 | 0.443 |
| 2×95 | 1.1 | 2.1 | 39.8 | 3697 | 2518 | 0.193 | 0.320 |
| 2×120 | 1.2 | 2.2 | 43.4 | 4396 | 2909 | 0.153 | 0.253 |
| 2×150 | 1.4 | 2.3 | 47.4 | 5208 | 3374 | 0.124 | 0.206 |
| 2×185 | 1.6 | 2.5 | 53.2 | 6747 | 4451 | 0.0991 | 0.164 |
| 2×240 | 1.7 | 2.7 | 58.6 | 8278 | 5261 | 0.0754 | 0.125 |
| 2×300 | 1.8 | 2.8 | 64.0 | 9912 | 6127 | 0.0601 | 0.100 |
| 2×400 | 2.0 | 3.1 | 71.2 | 12168 | 7328 | 0.0470 | 0.0778 |
| 2×500 | 2.2 | 3.3 | 80.1 | 15893 | 9678 | 0.0366 | 0.0605 |
| 3×4 | 0.7 | 1.8 | 17.4 | 505 | 430 | 4.61 | 7.41 |
| 3×6 | 0.7 | 1.8 | 18.5 | 598 | 485 | 3.08 | 4.61 |
| 3×10 | 0.7 | 1.8 | 22.2 | 966 | 776 | 1.83 | 3.08 |
| 3×16 | 0.7 | 1.8 | 24.3 | 1220 | 918 | 1.15 | 1.91 |
| 3×25 | 0.9 | 1.8 | 28.7 | 1803 | 1328 | 0.727 | 1.20 |
| 3×35 | 0.9 | 1.8 | 30.0 | 2133 | 1483 | 0.524 | 0.868 |
| 3×50 | 1.0 | 1.9 | 33.4 | 2658 | 1779 | 0.387 | 0.641 |
| 3×70 | 1.1 | 2.0 | 38.1 | 3716 | 2442 | 0.268 | 0.443 |
| 3×95 | 1.1 | 2.2 | 42.2 | 4692 | 2924 | 0.193 | 0.320 |
| 3×120 | 1.2 | 2.3 | 46.1 | 5649 | 3418 | 0.153 | 0.253 |
| 3×150 | 1.4 | 2.5 | 52.0 | 7239 | 4487 | 0.124 | 0.206 |
| 3×185 | 1.6 | 2.6 | 56.5 | 8634 | 5191 | 0.0991 | 0.164 |
| 3×240 | 1.7 | 2.8 | 62.7 | 10790 | 6265 | 0.0754 | 0.125 |
| 3×300 | 1.8 | 3.0 | 68.3 | 13016 | 7338 | 0.0601 | 0.100 |
| 3×400 | 2.0 | 3.2 | 75.8 | 16028 | 8768 | 0.0470 | 0.0778 |
| 3×500 | 2.2 | 3.5 | 85.4 | 20926 | 11603 | 0.0366 | 0.0605 |
