Description

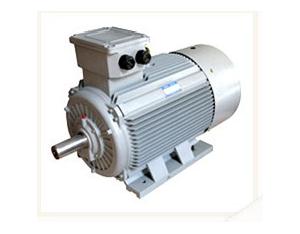

The Y2 series motor is a high-voltage SCR motor designed for versatile applications, including driving blowers, compressors, pumps, crushers, and other general-purpose machinery. This robust motor serves as the prime mover in various industries such as power generation, steel production, coal mining, and mechanical applications. Engineered for efficiency and reliability, the Y2 series motor combines high performance with energy-saving features, low noise levels, and minimal vibration. Its lightweight design facilitates easy installation and maintenance, making it an ideal choice for demanding operational environments.
Specifications
| Attribute | Details |
|---|---|
| Frame Size | H355 – H560 mm |
| Power Range | 185 kW – 1600 kW |
| Poles | 2 – 8 |
| Rated Voltage | 3000 V, 6000 V, 10000 V, 3300 V, 6600 V, 11000 V |
| Frequency | 50 Hz, 60 Hz |
| Insulation Class | F |
| Degree of Protection | IP44, IP54, IP55 |
| Mounting Arrangement | IMB3 |
| Cooling Method | IC411 |
| Type Duty | S1 |
Additional Information
- High efficiency and energy-saving design
- Low noise and vibration for improved operational comfort
- Lightweight construction for easy installation and maintenance
