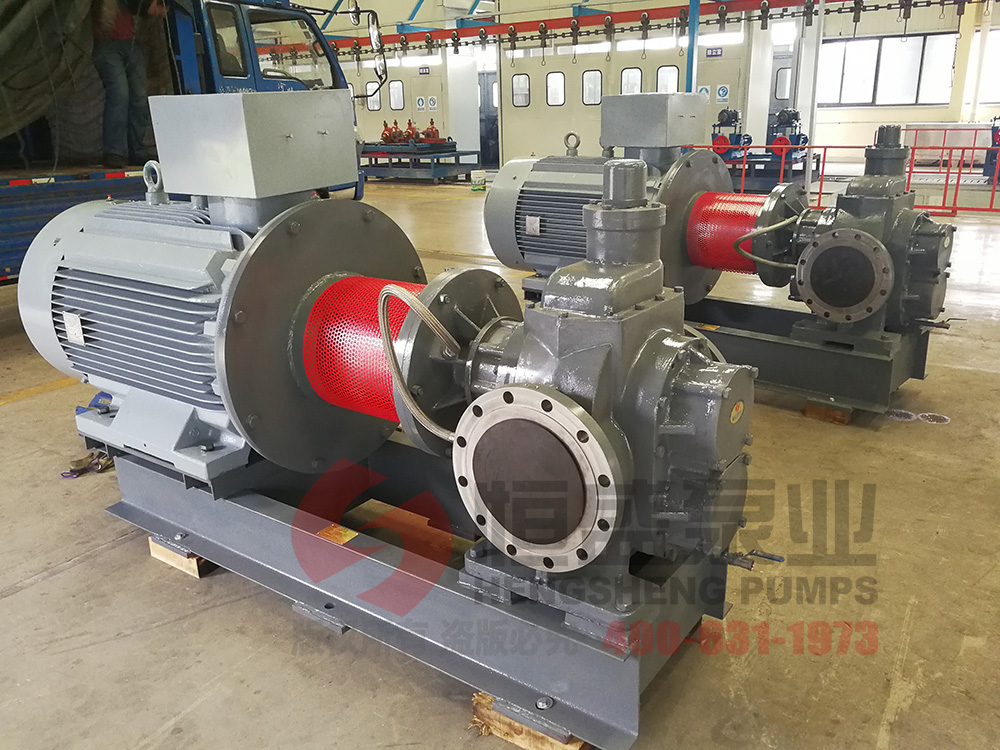

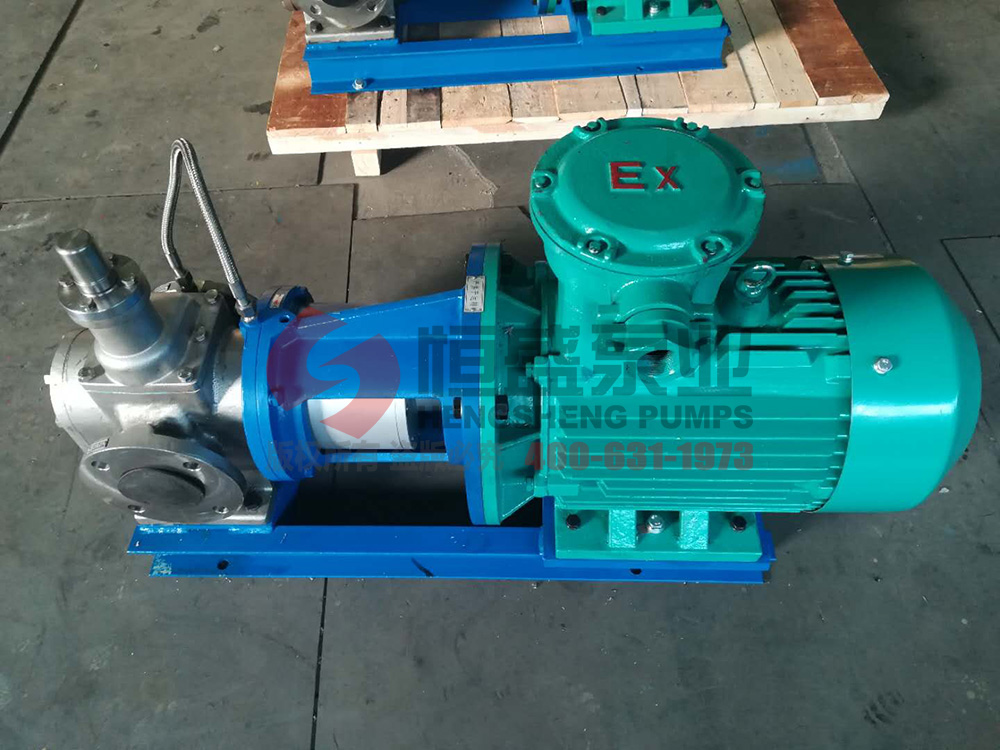

YCB magnetic drive gear pump
Inquire NowDescription
The YCB Magnetic Drive Gear Pump is a cutting-edge solution designed for efficient fluid transfer. Featuring an external meshing low-pressure gear system, this pump is totally sealed to prevent leakage, ensuring environmental protection and energy savings. Its robust construction includes a pump body, gear, shaft, magnetic drive part, and safety valve, making it ideal for conveying fluids with viscosities ranging from 5 to 1500 CST, particularly in industries such as petrochemical, coatings, paper, and resin.
This pump excels in transporting toxic, harmful, flammable, explosive, volatile, and heavy oils, including mechanical oil and fuel oil. With a unique design that allows all parts to be self-lubricated by the conveyed medium, it guarantees longevity and reliability in demanding applications.
Specifications
| Feature | Description |
|---|---|
| Viscosity Range | 5-1500 CST |
| Operating Principle | External meshing low-pressure gear system |
| Safety Valve | Overload protection with adjustable pressure settings |
| Rotation Direction | Clockwise from the drive side |
| Applications | Oil field, petrochemical, chemical products, food, textile, medicine, and more |
Additional Information
This pump is specifically designed to handle non-sealing and non-polluting media and is not suitable for transporting materials containing ferromagnetic properties. The sliding bearings are crafted from materials that withstand unbalanced radial hydraulic pressure, ensuring a long service life even in harsh operating conditions.
