YCBS45

Inquire Now

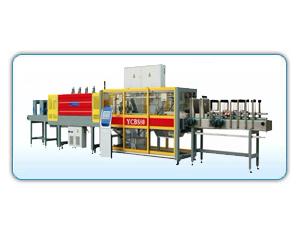

Product Name:Shrink Packaging Machinery
Product Model:YCBS45
Whole Weight:4500KGS
Machine Size:L17685 *W1530 *H2500
Category:Automatically Shrink Packging Machinery

1. Shrink packing machine Specially designed for bundle packing of beer, drinks and beverage, fruit juice, bottle water, dairy, condiment and so on with or without bottom support.
2. Unique film letoff mechanism and constant tension film conveyor are adopted, featuring instantaneous film cutting, automatic film connecting and wrapping and higher strength after shrinking packing.
3. Equipped with B&R servo motor control system, bottle feeding, film feeding, film cutting and film wrapping are accurate, synchronous, stable and reliable.
4. The super large 8-inch LCD color screen has a friendly operation interface, and it is rapid for parameter setting and convenient for human-machine communication, operation and control.
5. Adopting air circulation technology, the shrinkage chamber features rational structure, heat insulation, high precision for temperature control and better packing effects.



Model YCBS45
Machine Dimension L17685 *W1530*H2500
Shrinkage Chamber Dimension L2500 *W650 *H450
Max Package Dimension L460*W280 *H350
Max Packing Speed 35-40pcs/min
Transfer Belt Width 610mm
Work Voltage/Power three-phase-five-line 380V 48KW
Work Air Pressure 0.6-0.8Mpa
Air Consumption 100-120NL/MIN
Total Weight 4500KG
