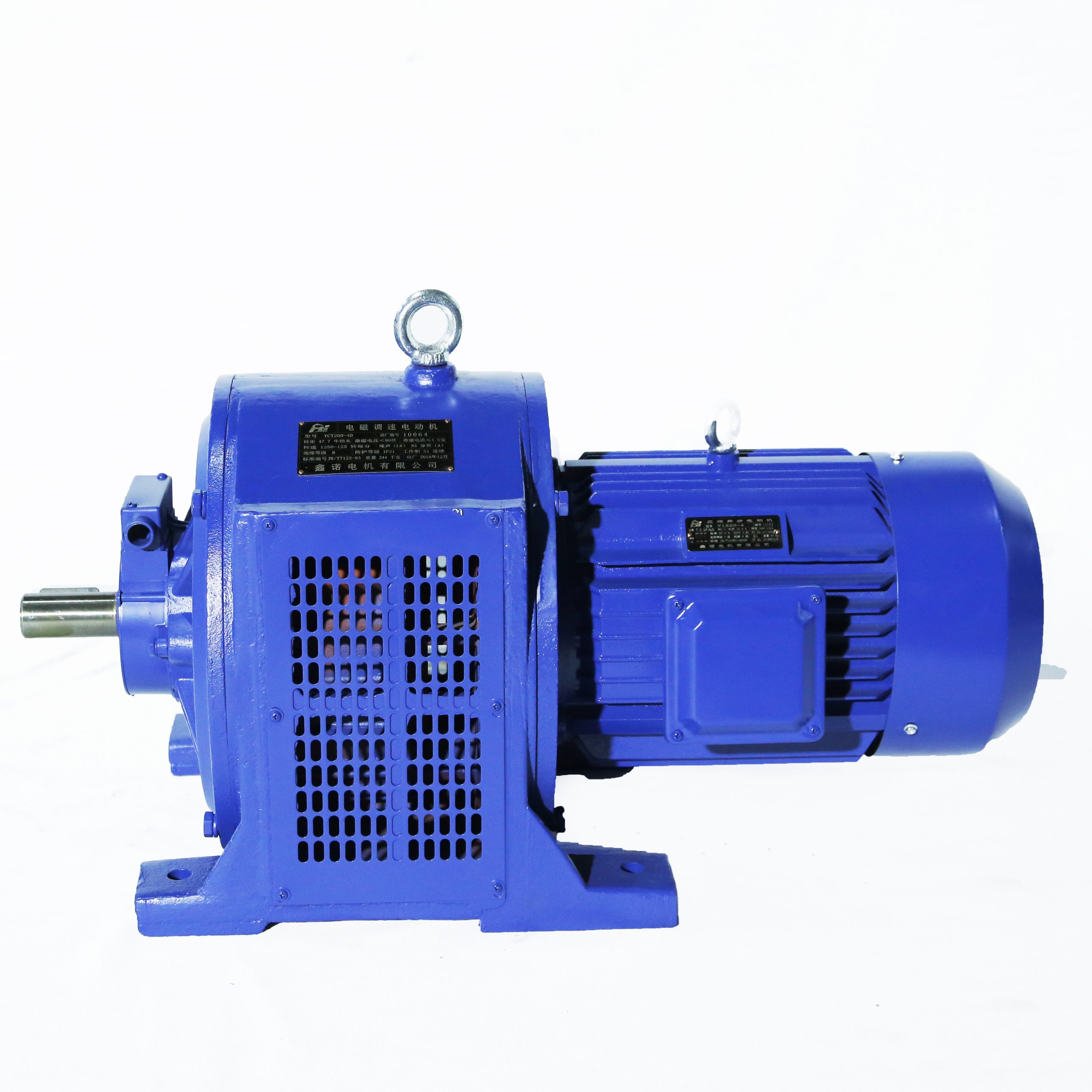

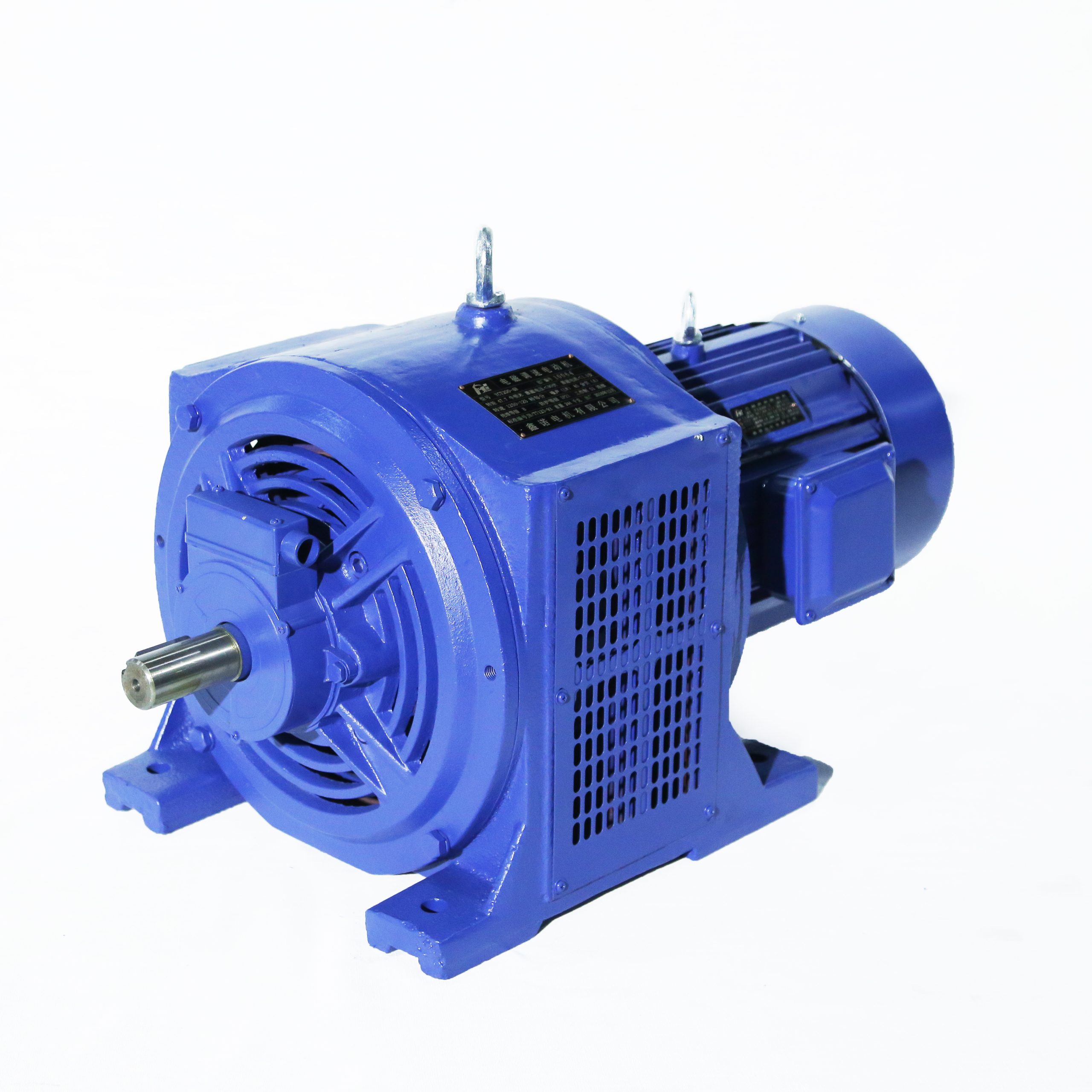

YCT-Series Electromagnetic Speed Regulating Motor
Inquire NowDescription
The YCT-Series Electromagnetic Speed Regulating Motor is a cutting-edge solution designed for precision speed control in various industrial applications. This motor features an electromagnetic slip clutch, speed meter generator, and pulling motor, allowing for stepless speed regulation under constant torque. With an array of advantages such as quick braking, high efficiency, and low noise, it is ideal for use in industries including textiles, chemicals, metallurgy, and papermaking. The motor excels in applications where precise speed regulation is essential, such as centrifugal pumps and blowers, effectively replacing traditional valve controls for enhanced energy savings.
Specifications
| Attribute | Details |
|---|---|
| Power Range | 0.45 – 100 kW |
| Rated Voltage | 380V (three-phase), 220V (single-phase) |
| Rated Frequency | 50 Hz |
| Protection Class | IP44/IP54 |
| Insulation Class | F |
| Operating Temperature | -15ºC to +40ºC |
| Altitude | Not exceeding 1000m |
| Frame Size | H80-225 |
| Cooling Method | IC411 |
| Packing | Wooden cases for frames 112-355 |
| Certifications | CE, CCC, ISO9001:2008 |
Additional Information
The YCT-Series motor is designed for continuous operation (Duty S1) and features a simple structure which facilitates easy maintenance. It is equipped with an automatic regulating system that ensures a speed variation rate not exceeding 2.5%, making it a reliable choice for applications requiring consistent performance.
