Description

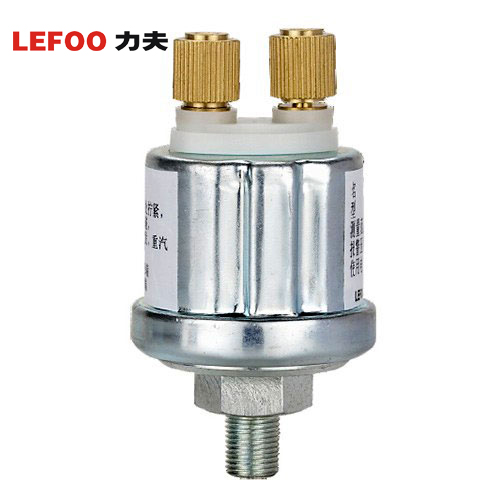

YG2221E Motor Oil Pressure Sensor is an essential component designed to work in tandem with an oil pressure meter and alarm lamp. This sensor effectively detects changes in oil pressure within the engine’s main tube and converts it into a variable resistance, allowing for accurate oil pressure readings on the meter. When oil pressure drops to a preset value, the alarm lamp is activated, providing critical alerts for engine maintenance. Constructed with a palladium cermet printed circuit board, the YG2221E sensor promises ultra-long life and high reliability, ensuring optimal performance for your engine.
Specifications
| Attribute | Details |
|---|---|
| Measuring Range | 0 – 1Mpa |
| Output | 10~145Ω (other value ranges available on request) |
| Supply Power | 12/24VDC |
| Alarm Pressure | 0.08Mpa |
| Pressure Type | Absolute Pressure |
| Operation Temperature Range | -30°C – +130°C |
| Sample Line Connection | 1/4NPT (other connections available on request) |
| Electrical Connection | G-Pressure Meter, WK-Alarm |
| Options | Other measuring ranges and alarm pressures available on request |
