Description

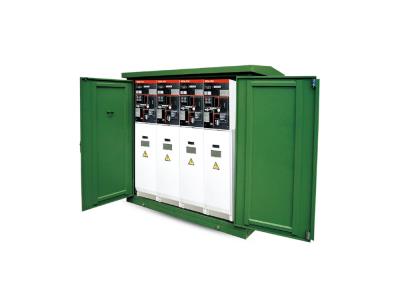

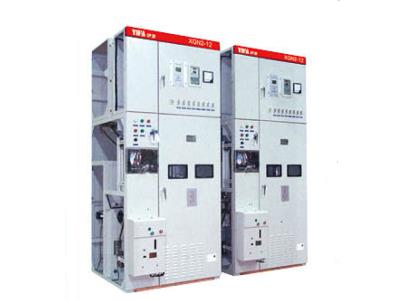

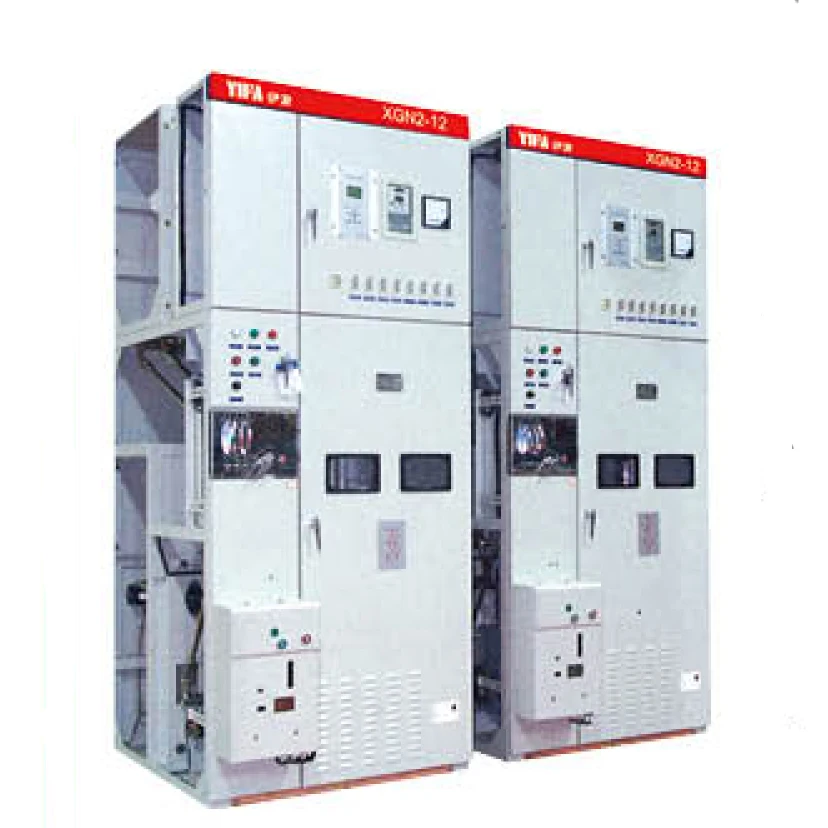

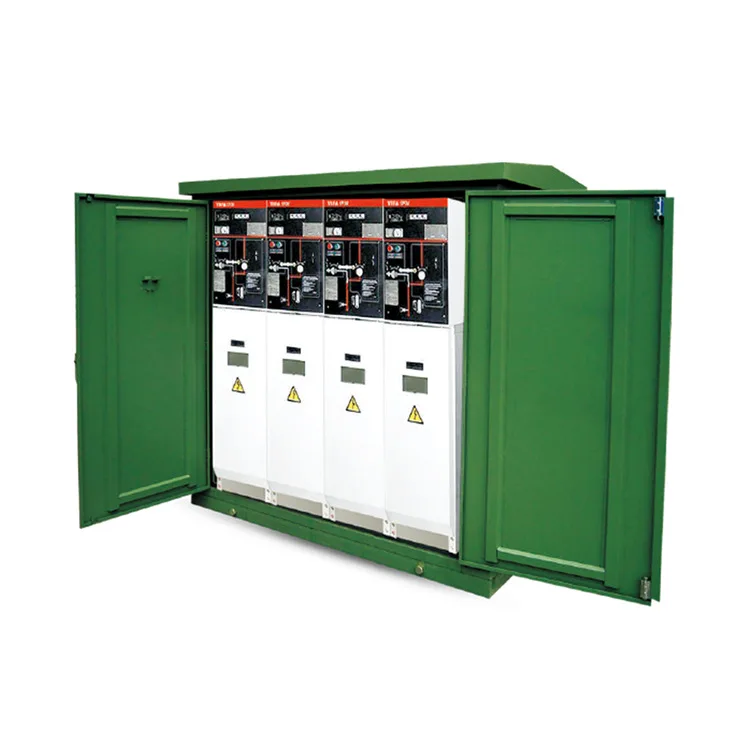

The YIFA XGN2-12 Box Fixed Type Metal-Enclosed Switchgear is a robust and reliable solution designed for medium voltage applications. This switchgear is engineered to operate efficiently within a range of environmental conditions, ensuring optimal performance in diverse settings. With its metal-enclosed structure, this switchgear offers enhanced protection for electrical components, making it suitable for indoor and outdoor installations.
Key features include:
- Temperature Resilience: Operates within an air temperature range of -25℃ to +40℃.
- Humidity Control: Designed for environments with a maximum daily average humidity of 95%.
- Seismic Stability: Maintains functionality in areas with earthquake intensities of up to 8 degrees.
- Durable Design: Built to withstand exposure to pollutants and chemical corrosion, ensuring longevity and safety.
Specifications
| Item | Unit | Value |
|---|---|---|
| Rated Voltage | kV | 3.6, 7.2, 12 |
| Rated Current | A | 630, 1250, 1600, 2000, 3150 |
| Rated Short-Circuit Opening Current | kA | 16, 20, 31.5, 40 |
| Rated Short-Circuit Breaking Current (Peak) | kA | 40, 50, 80, 100 |
| Rated Short-Circuit Stable Moving Current (Peak) | kA | 40, 50, 80, 100 |
| Rated Heat Stable Heating Current | kA | 16, 20, 31.5, 40 |
| Rated Heat Stable Heating Time | s | 4 |
| Protection Grade | IP2X | |

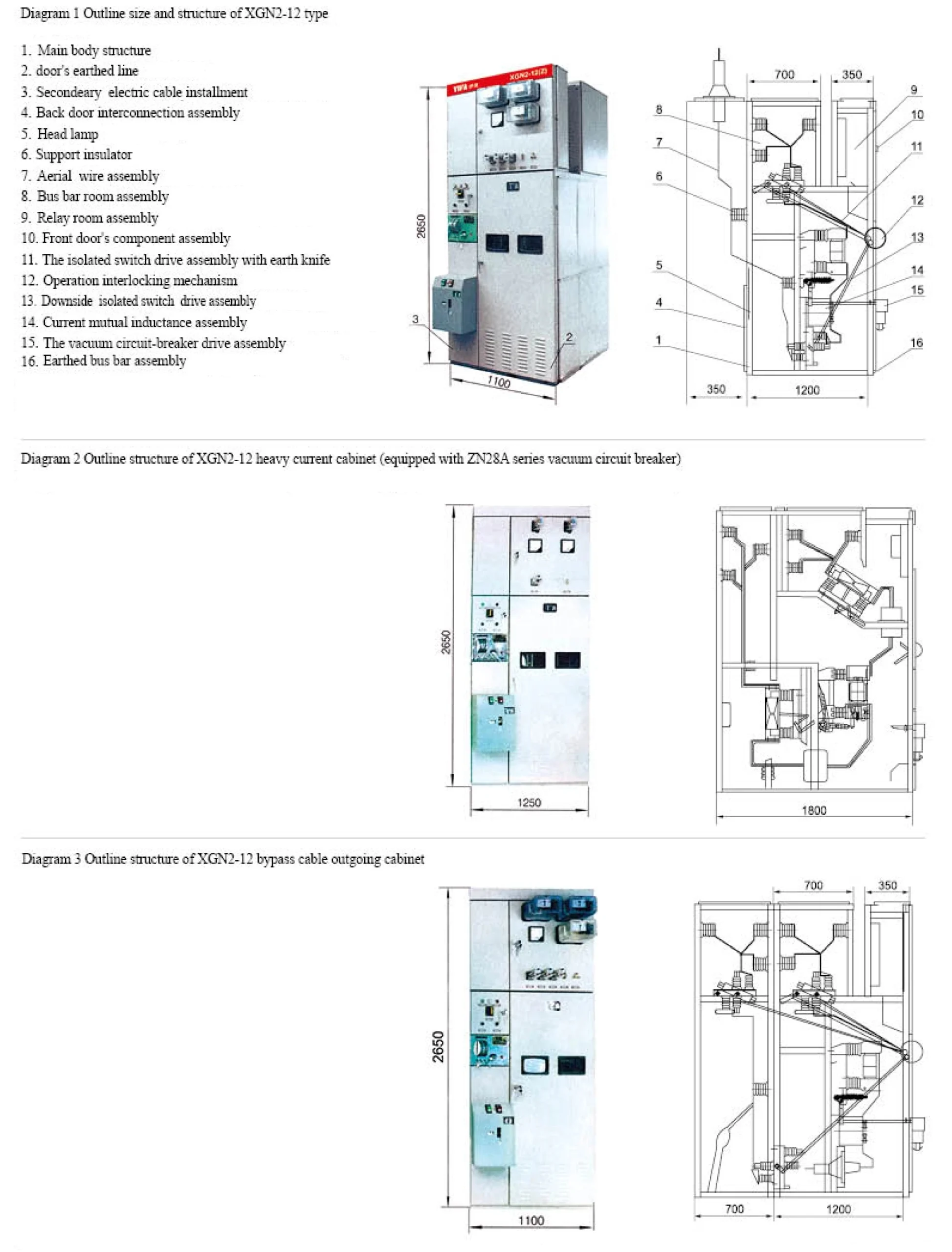

| Structure Type | Single bus bar disjuction and single bus bar with branches | |
| Operation Mode | Electromagnetic, spring and energy storage type | |

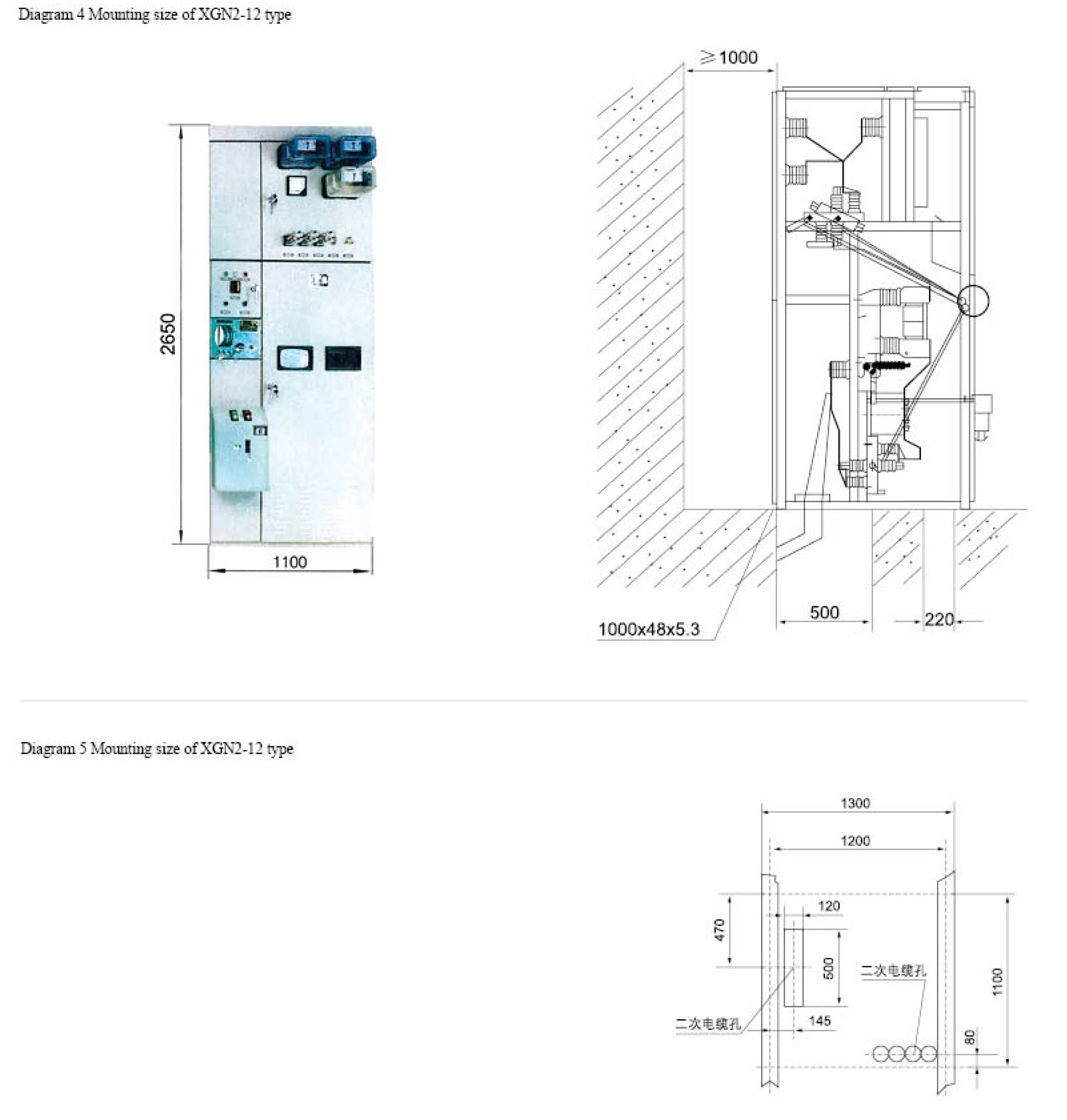

| Dimension | mm | 1100x1200x2650 (common) |
| Weight | kg | 1000 |
Additional Information
Ensure the switchgear is installed in areas free from fire hazards, explosion risks, and severe vibrations for optimal safety and performance.
