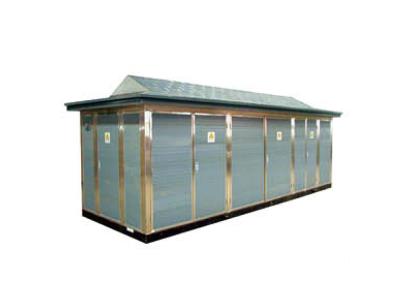

YIFA landscape stainless steel substation YFYBG series
Inquire NowDescription
The YIFA Landscape Stainless Steel Substation YFYBG series is a cutting-edge solution designed to integrate high voltage electrical equipment with low voltage electrical equipment in a compact, stylish package. This transformer substation features a unique European architectural aesthetic, ensuring not only functionality but also visual appeal. Its small volume and robust structure allow for safe and reliable operation, making it perfect for diverse applications, including residential districts, industrial parks, commercial centers, and temporary power supply needs at construction sites. With its convenient maintenance features and mobility, it stands out as a versatile choice for both urban and rural environments.
Specifications
| Item | HV Electrical Equipment | Transformer | LV Electrical Equipment |
|---|---|---|---|
| Rated Voltage (kV) | 7.2, 12 | 6/0.4, 10/0.4 | 0.4 |
| Rated Capacity (kVA) | 50-1250 | ||
| Rated Current (A) | 200-6300 | 100-3000 | |
| Rated Breaking Current (kA) | Switch-Fuse Combination 0.4-0.63 | 15-63 | |
| Rated Frequency (Hz) | 50 | 50 | 50 |
| Short-Time Withstand Current (kA) | 2s 12.5, 4s | 1s 30ls | |
| Peak Withstand Current (kA) | 31.5, 50 | 30-63 | |
| Rated Making Current (kA) | 31.5, 50 | ||
| Power Frequency Withstand Voltage (kV) | Relatively and Interphasely 30, 42 Isolating Fracture 34, 48 |
Oil: 35 (1 min) Dry: 28 (1 min) |
2kV when ≤3000V 2.5kV when 300V, 600V |
| Lightning Impulse (kV) | Relatively and Interphasely 60, 75 Isolating Fracture 75, 85 |
||
| Noise Level (dB) | Oil: <55 Dry: <65 |
||
| Dimension (mm) | According to Transformer | ||
Additional Information
For optimal performance, regular maintenance is recommended. Ensure that the unit is inspected periodically to maintain safety and reliability. The design allows for convenient transport, making it suitable for various temporary power supply needs.
