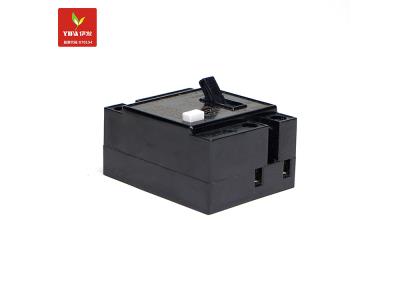

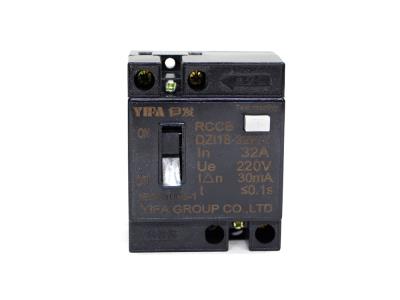

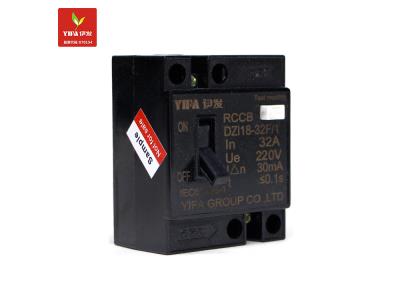

YIFA leakage circuit breaker 220V 32A
Inquire NowDescription
The YIFA Leakage Circuit Breaker (Model YFL18-32(F)) is a reliable safety device designed for single-phase circuits operating at AC 220V and a frequency of 50Hz, with a rated current of 32A. Its primary purpose is to provide essential protection against electric shocks and potential fire hazards caused by earth faults resulting from equipment insulation failures. This circuit breaker not only safeguards individuals from electric shocks but also protects the electrical line from overloads when equipped with a thermal release. Moreover, it features over-voltage protection, ensuring additional safety by preventing over-voltage issues that may arise from main failures, such as incorrect connections or significant load imbalances. This product complies with GB16916.1 standards.
Specifications
| Model | Rated Voltage (V) | Rated Current (A) | Number of Poles | Rated Residual Non-Operating Current (mA) | Over-Voltage Operating Value (V) | Rated Residual Making and Breaking Capacity (kA) |
|---|---|---|---|---|---|---|
| DZL18-32(F)/1 | AC 220 | 20/32 | 2 | 30/15/10 | 275±5% | 3000 |
| DZL18-32/2 | AC 220 | 10/16/20/32 | 2 | 30/15/10 | 275±5% | 3000 |
| DZL18-32(F)/3 | AC 220 | 20/32 | 2 | 30/15/10 | 275±5% | 3000 |
| DZL18-32/4 | AC 220 | 10/16/20/32 | 2 | 30/15/10 | 275±5% | 3000 |
Additional Information
The YIFA Leakage Circuit Breaker comes with a one-year warranty, ensuring peace of mind and reliable after-sales service. It is designed for easy installation, making it ideal for residential and commercial applications. Regular maintenance checks are recommended to ensure optimal performance and safety compliance.
