Description

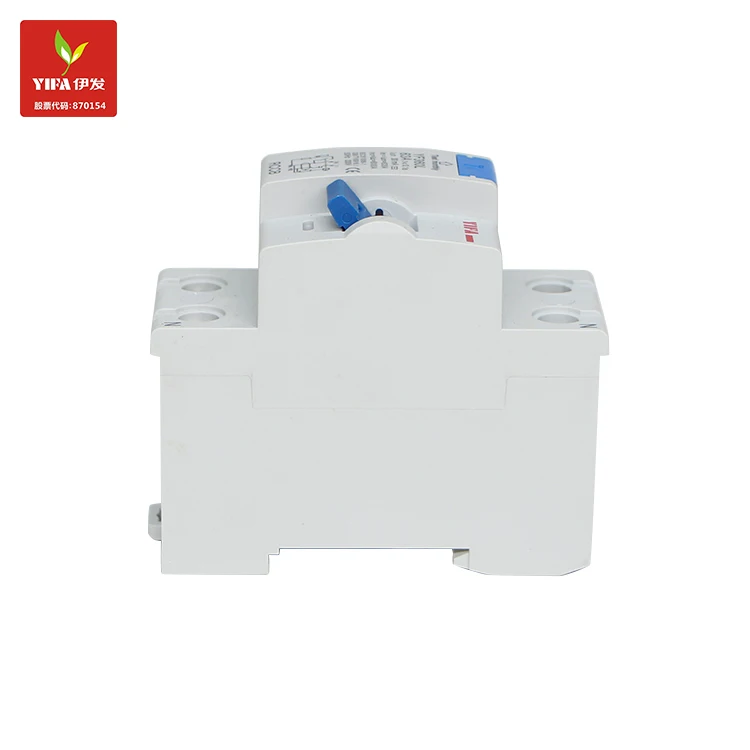

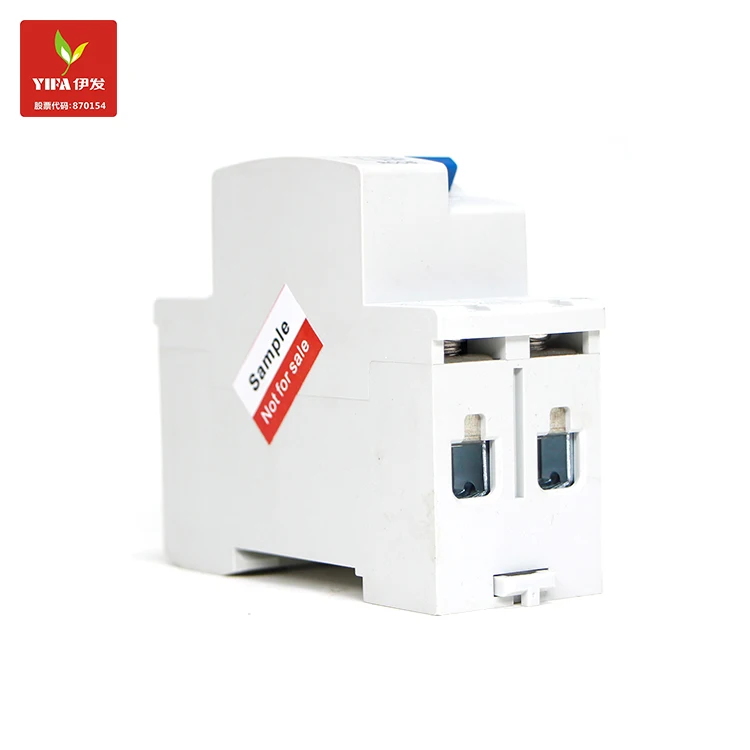

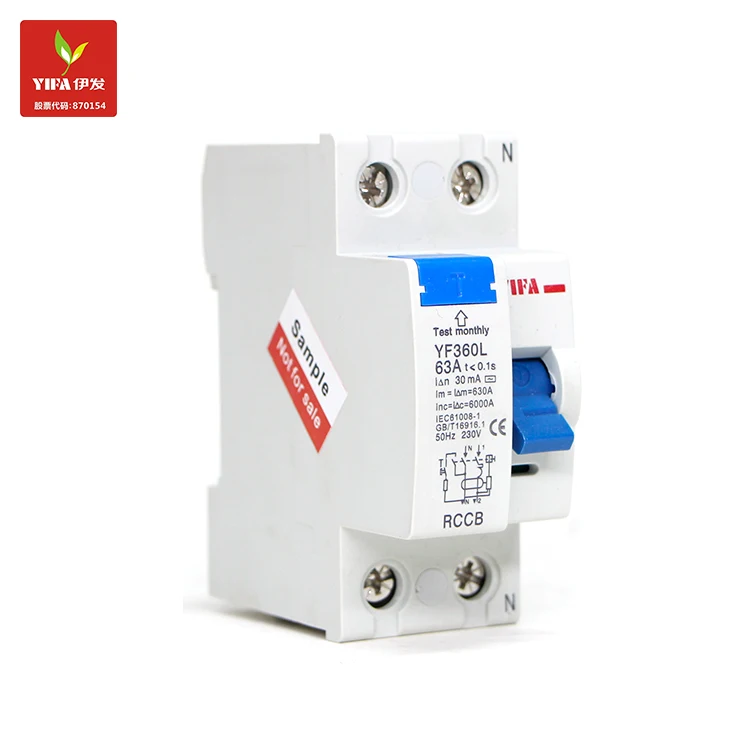

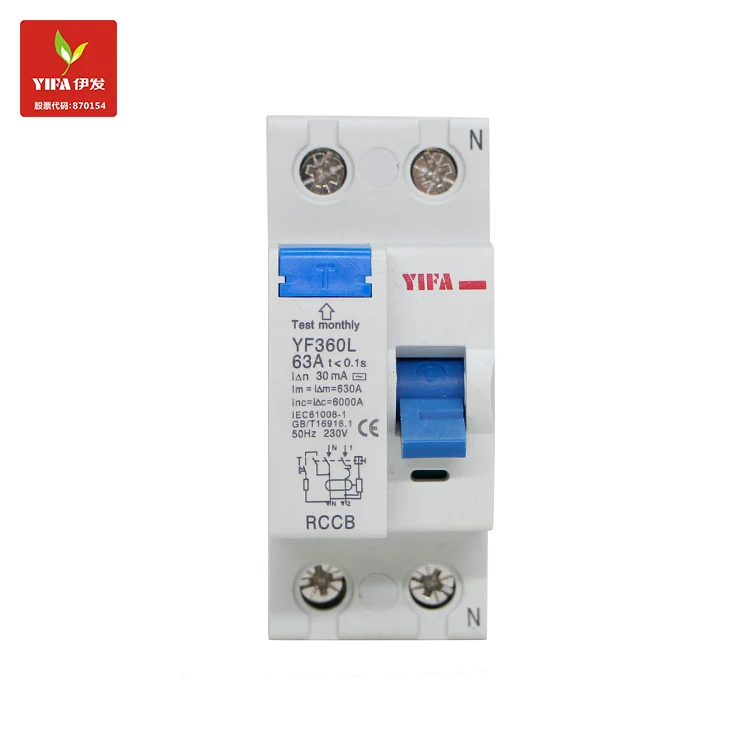

The YIFA Leakage Circuit Breaker RCCB YF360L-63 series is an essential safety device designed to protect both human beings and electrical equipment from the dangers of electric shocks and leakage currents. In the event of a malfunction or abnormal current, this reliable circuit breaker quickly interrupts the power supply, ensuring immediate safety. This device is also suitable for non-frequent circuit switching operations, making it versatile for various applications. Compliant with IEC61008-1 certification, it is built to uphold the highest safety standards.
Specifications
| Item | Value |
|---|---|
| Rated voltage | 230V AC(IP+N), 400V AC(3P+N) |
| Rated current | 25A, 40A, 63A |
| Rated residual operating current | 0.03A, 0.1A, 0.3A |
| Number of poles | 1P+N, 3P+N |
| Rated limit short-circuit current | 6000A |
| Rated limit residual short-circuit current | 6000A |
| Rated make-break capacity | 500A(In=25,40A); 630A(In=63A) |
| Rated residual access and disconnection capacity | 500A(In=25,40A); 630A(In=63A) |
| Rated residual non-operating current | 0.51Δn |
| Duration for residual current operated breaking | See table 2 |
| Mechanical electrical life | See table 3 |
| Tightening torque | (2.5-4.0)n-m |
| Appearance and installation dimensions | See Fig.1 and Fig.2 |
| Class of pollution | Class 2 |
| Protection class | IP20 |
| Installation category | Class II |
Additional Information
| In(A) | IΔn | Breaking duration(s) when the residual current (IΔn) is equal to the following values | ||||
|---|---|---|---|---|---|---|
| A | A | IΔn | 2IΔn | 5IΔn | Maximum breaking duration | |
| 25,40,63 | 0.03 | 0.1 | 0.08 | 0.04 | 0.04 | |
