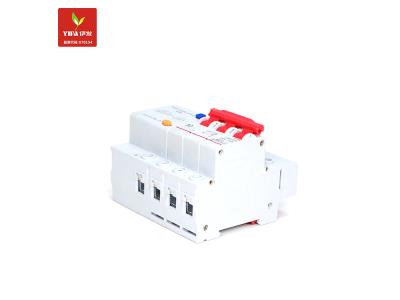

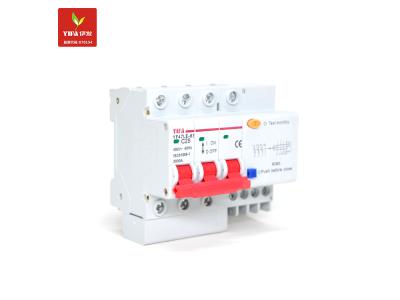

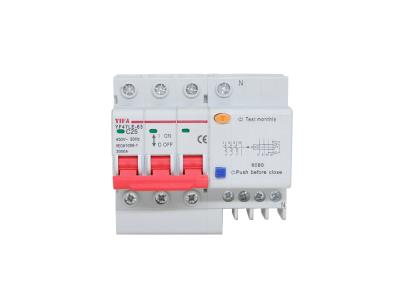

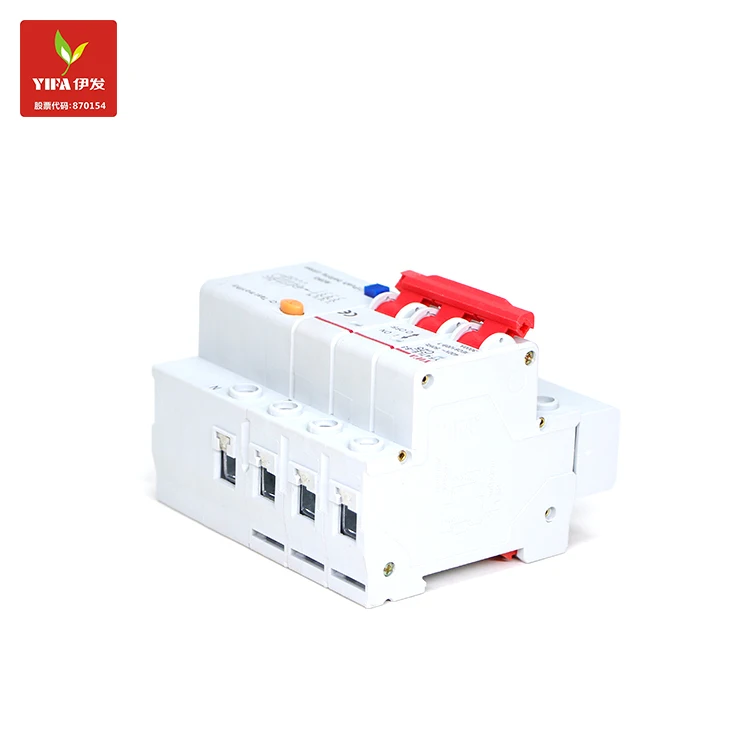

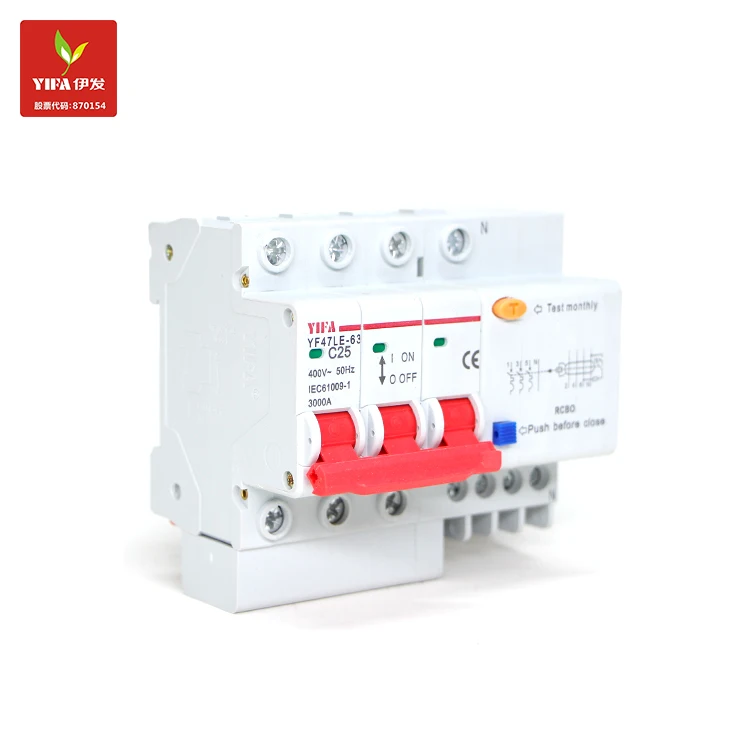

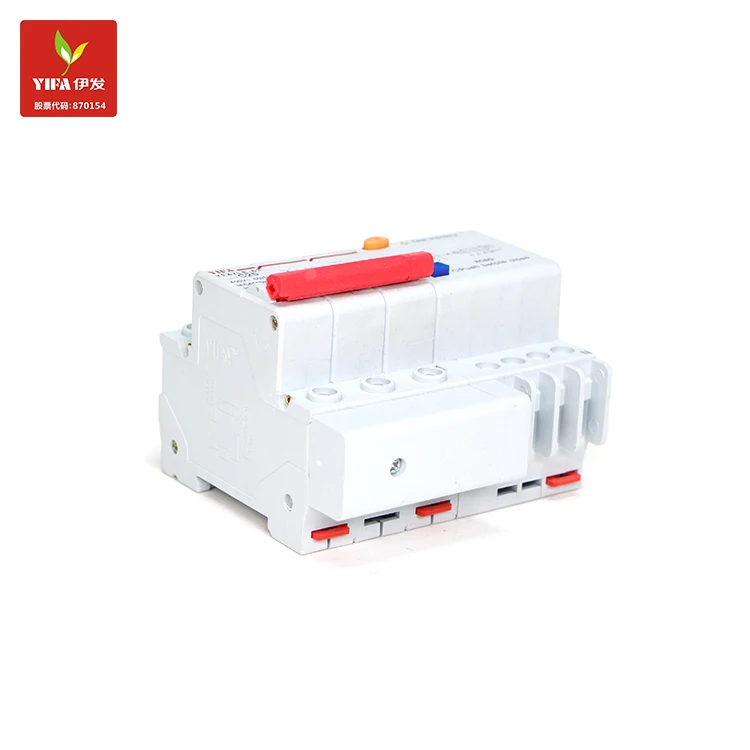

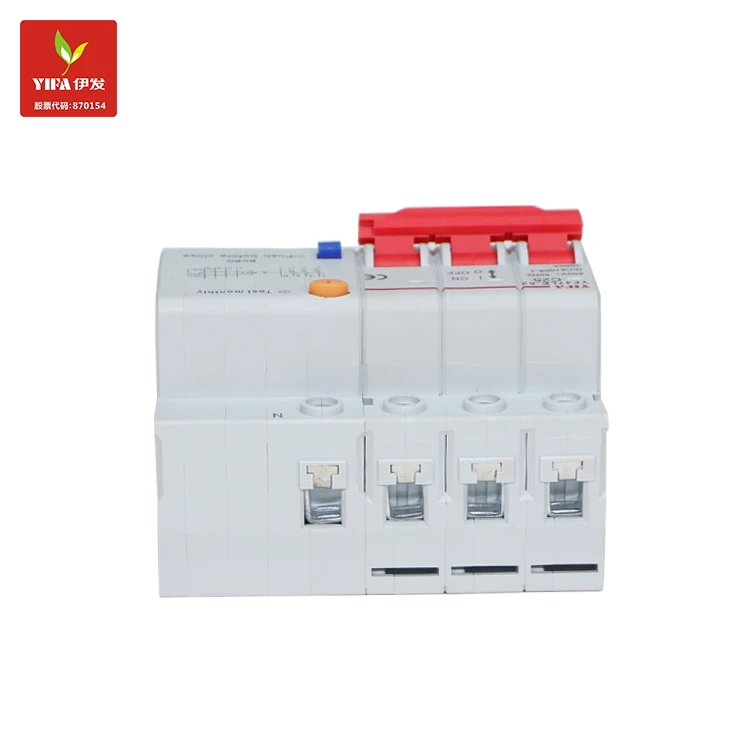

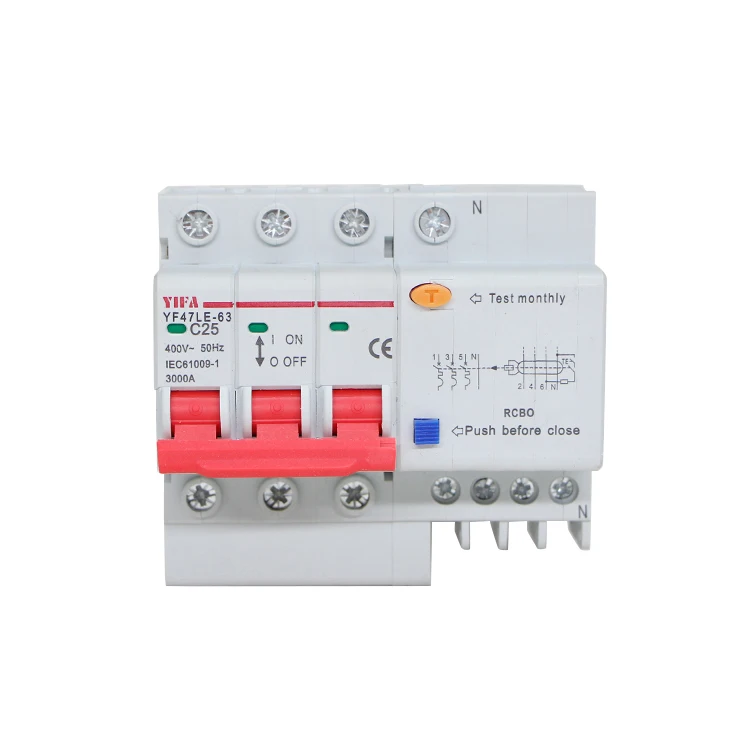

YIFA leakage circuit breakers RCBO
Inquire NowDescription
The YIFA Leakage Circuit Breaker RCBO (Residual Current Circuit Breaker with Overcurrent protection) is a crucial safety device designed to protect against electrical shock, overloads, and short circuits. This state-of-the-art product complies with the IEC61009-1 standard and is engineered to enhance user safety by also offering options for overvoltage protection based on individual needs. Specifically, the YF47LE-63 series operates effectively at an AC frequency of 50Hz with a rated voltage of 400V and is available in rated currents of 32A and 50A.
Ideal for safeguarding architectural lighting and distribution systems, this robust device combines essential protection functions, ensuring peace of mind in both residential and commercial applications.
Specifications
| Rated Current | Poles | Neutral Line | Rated Current In (A) | Rated Short-Circuit Segmentation Capability (V) | Segmentation Ability | COSφ | Rated Leakage Current | Rated Leakage Non-Operating Current |
|---|---|---|---|---|---|---|---|---|
| 32 | 1 | N | 6 / 10 / 16 / 20 / 25 / 32 | 230 | 6000 | 0.7 | 30 50 100 300 |
15 25 50 150 |
| 32 | 2 | – | 6 / 10 / 16 / 20 / 25 / 32 | 400 | 6000 | 0.7 | 30 50 100 300 |
15 25 50 150 |
| 63 | 1 | N | 40 / 50 / 63 | 230 | 4500 | 0.8 | 30 50 100 300 |
15 25 50 150 |
| 63 | 2 | – | 40 / 50 / 63 | 400 | 4500 | 0.8 | 30 50 100 300 |
15 25 50 150 |
Additional Information
Note:
The wiring is connected using a clamped terminal block, suitable for connecting hard cables of 10mm² or less.
