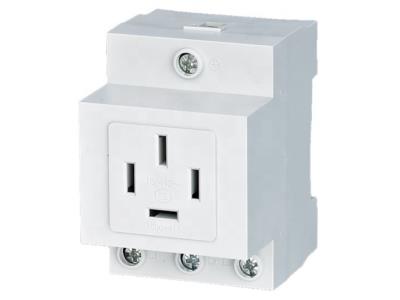

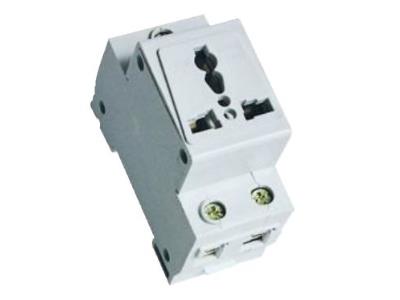

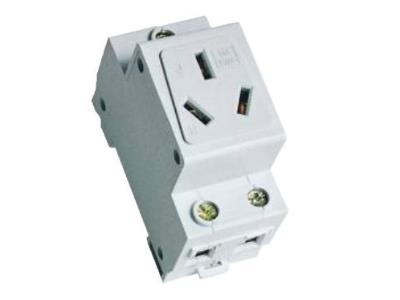

YIFA modular socket plug receptacle jack AC30
Inquire NowDescription
The YIFA modular socket plug receptacle jack AC30 is a versatile solution for power distribution systems in various settings, including homes, hotels, airports, and docks. Designed for seamless integration with circuit breakers and lighting distribution boxes, this modular socket adheres to international safety standards such as GB2099 and IEC60884-1. The AC30 model is engineered to provide reliable performance while ensuring compatibility with the YFN series circuit breaker and DZ47 series circuit breaker, making it an ideal choice for both residential and commercial applications.
Specifications
| Model | Spec | Rated Current | Rated Voltage | Sectional Area of Conductor |
|---|---|---|---|---|
| AC | Single-phase two-Jack | 10, 16 | 240 | <=10 |
| AC | Single-phase three-Jack | 10, 16, 25 | 240 | <=16 |
| AC | Single-phase four-Jack | 16, 25 | 415 | <=16 |
| Model | Rated Voltage and Current | Width | Loop Number |
|---|---|---|---|
| AC30 Two-jack | 230V/10A | 18 | 1 |
| AC30 Three-jack | 230V/10A | 36 | 2 |
| AC30 Three-jack | 230V/16A | 36 | 2 |
| AC30 Three-jack | 380V/25A | 45 | 2.5 |
| AC30 Four-jack | 380V/16A | 54 | 3 |
| AC30 Four-jack | 380V/25A | 72 | 4 |
Additional Information
- Application: Ideal for residential buildings, hotels, airports, and docks.
- Compliance: Meets GB2099 and IEC60884-1 standards for electrical safety.
