Description
The YIFA Single-phase Power Distribution Oil-immersed Transformer is a robust solution designed for decentralized distribution networks, effectively serving residential overhead distribution loads in both urban and rural settings. These oil-filled pole-mounted transformers are also adept at handling light and diversified power applications, making them ideal for various electric utility power distribution systems.
Constructed with high-grade materials, the transformers come in two basic types: Conventional and Complete Self-Protection. Users can choose between two types of core materials—C.R.G.O core and amorphous metal core—ensuring efficient performance under typical operating conditions.
Specifications
| Rated Capacity (kVA) | Voltage Combination (HV/LV) and Tap Range | Vector Group Symbol | No-load Loss (kW) | Load Loss (kW) | No-load Current (%) | Short-circuit Impedance Voltage (%) | Gross Weight (kg) |
|---|---|---|---|---|---|---|---|
| 10 | 10±5% | lio | 0.50 | 0.24 | 2.0 | 3.5 | 210 |
| 20 | 10±5% | lio | 0.70 | 0.38 | 1.8 | 3.5 | 270 |
| 30 | 10±5% | lio | 0.85 | 0.49 | 1.7 | 3.5 | 300 |
| 50 | 10±5% | lio | 0.14 | 0.66 | 1.6 | 3.5 | 350 |
| 63 | 10±5% | lio | 0.16 | 0.79 | 1.5 | 3.5 | 400 |
| 80 | 10±5% | lio | 0.18 | 0.93 | 1.4 | 3.5 | 460 |
| 100 | 10±5% | lio | 0.21 | 1.10 | 1.3 | 3.5 | 520 |
| 125 | 10±5% | lio | 0.24 | 1.30 | 1.2 | 3.5 | 580 |
| 160 | 10±5% | lio | 0.27 | 1.50 | 1.0 | 3.5 | 650 |
Additional Information

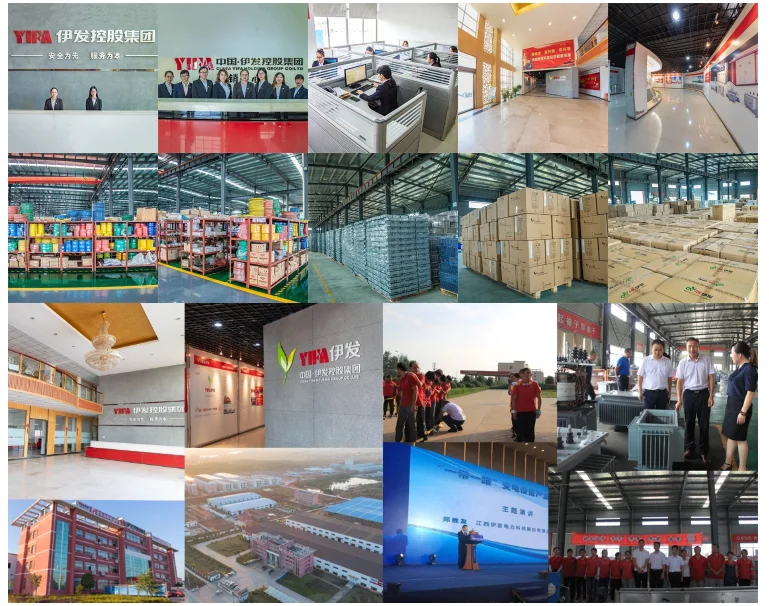

YIFA Holding Group is a renowned high-tech enterprise in the electrical industry, known for its reliable quality and innovation. The transformers come with a long quality warranty, ensuring peace of mind for buyers. For effective operation, timely maintenance and operational checks are encouraged.
