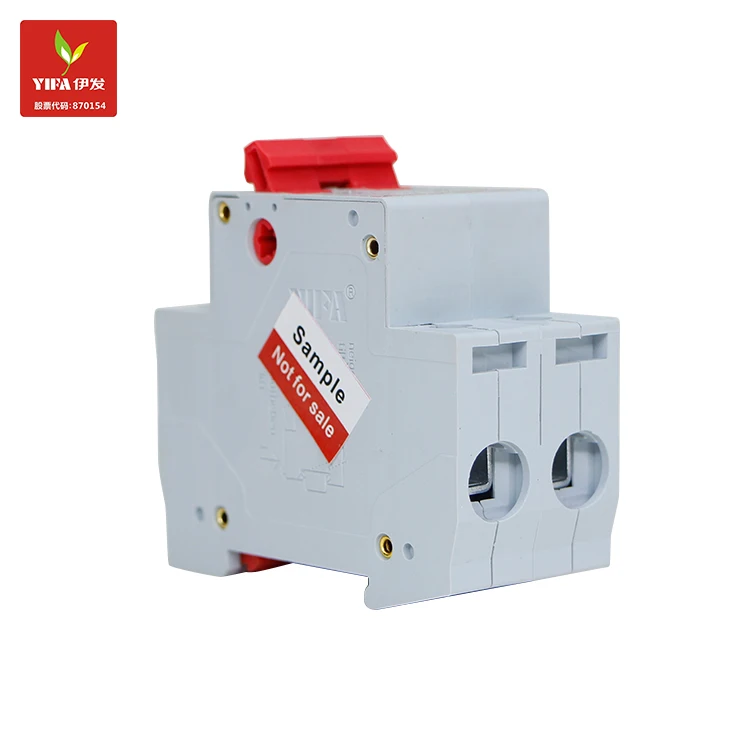

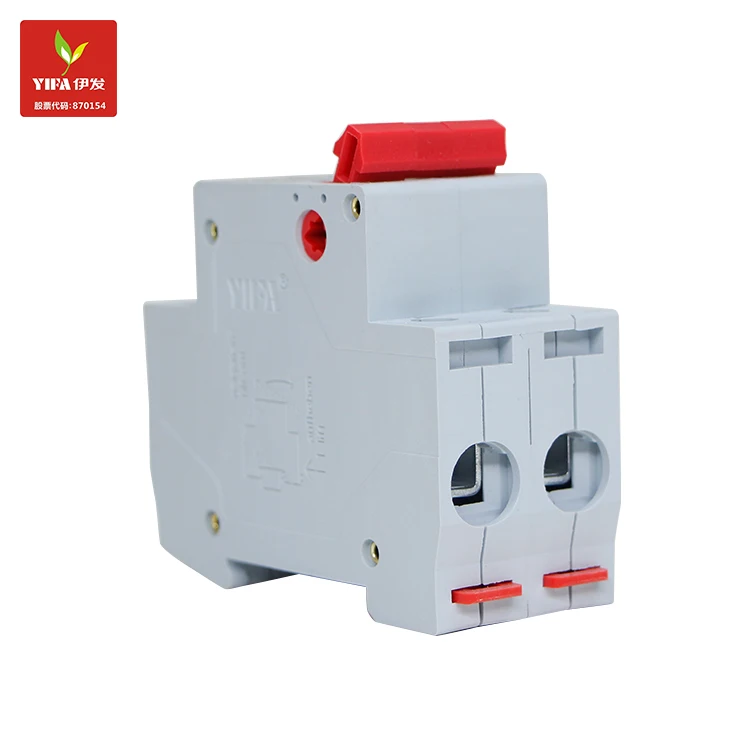

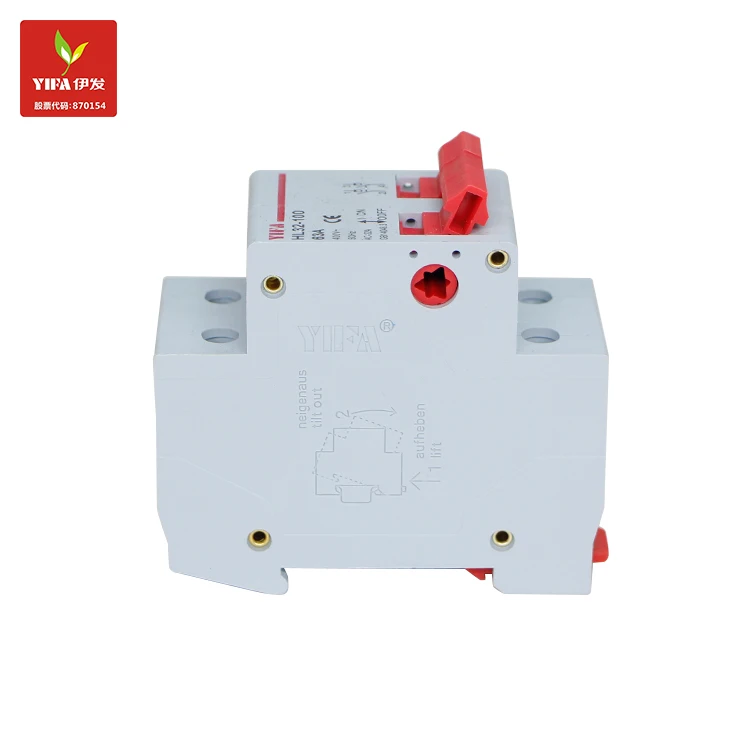

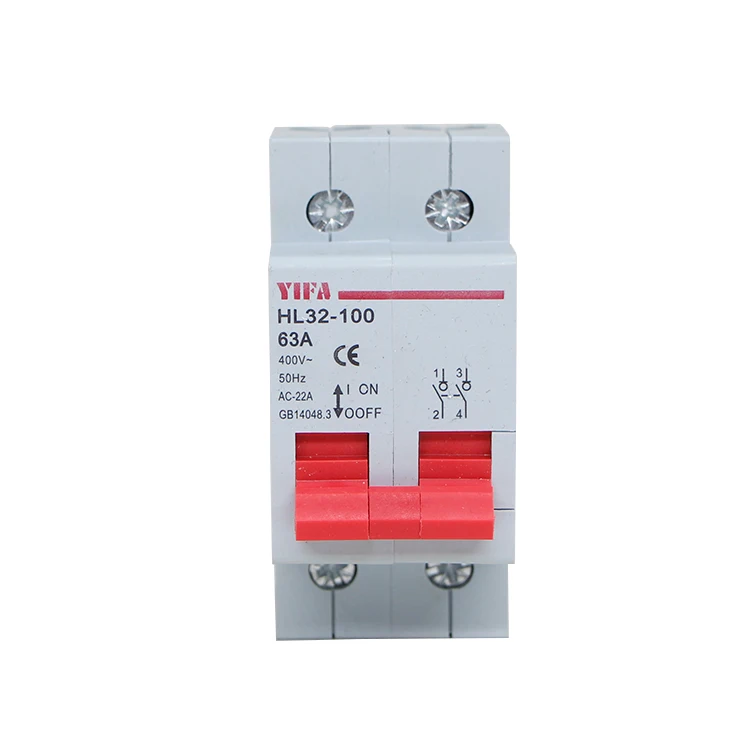

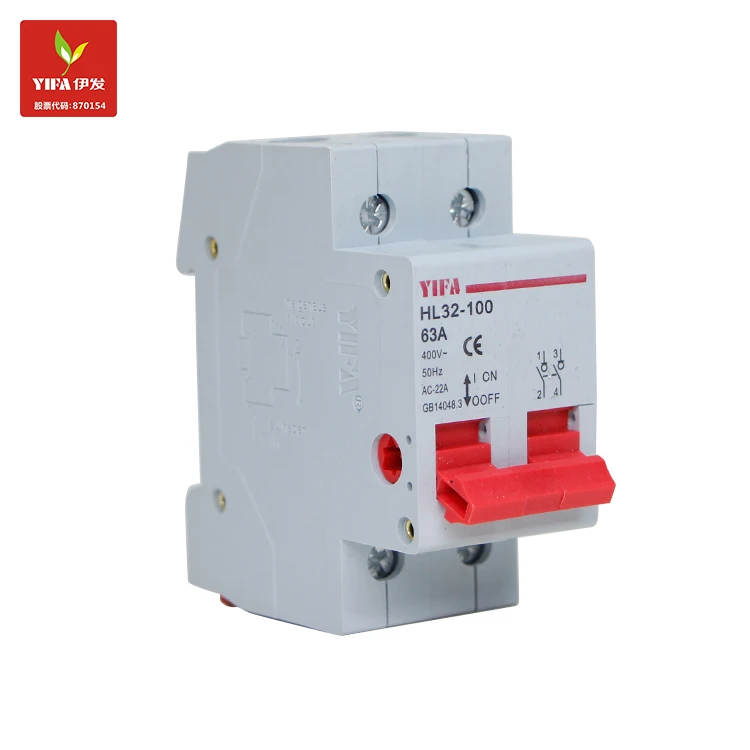

YIFA Terminal low voltage disconnector circuit breaker HL32-100 Series
Inquire NowDescription
The YIFA Terminal Low Voltage Disconnector Circuit Breaker HL32-100 Series is designed for efficient distribution and control within electrical systems operating on AC 50/60Hz. With a rated working voltage of 230V or 400V, this circuit breaker serves primarily as a main switch for terminal electrical appliances. It is versatile enough to accommodate a range of applications, including various motors, low-power electrical equipment, and lighting systems. This robust device complies with international standards such as IEC60947-3 and GB14048.3, ensuring reliability and safety in electrical operations.
Specifications
| Rated Insulation Voltage (V) | Rated Operating Voltage (V) | Rated Impulse Withstand Voltage | Rated Operating Current (A) | Service Type | Rated Short-Time Withstand Current (uimp) | Rated Make/Break Capacity | Mechanical Life |
|---|---|---|---|---|---|---|---|
| 660 |
230V (1P) 230V/400V |
6kV | 16, 32, 63, 100 | AC-22 | 1.2kA | 2kA | 10,000 |
Additional Information

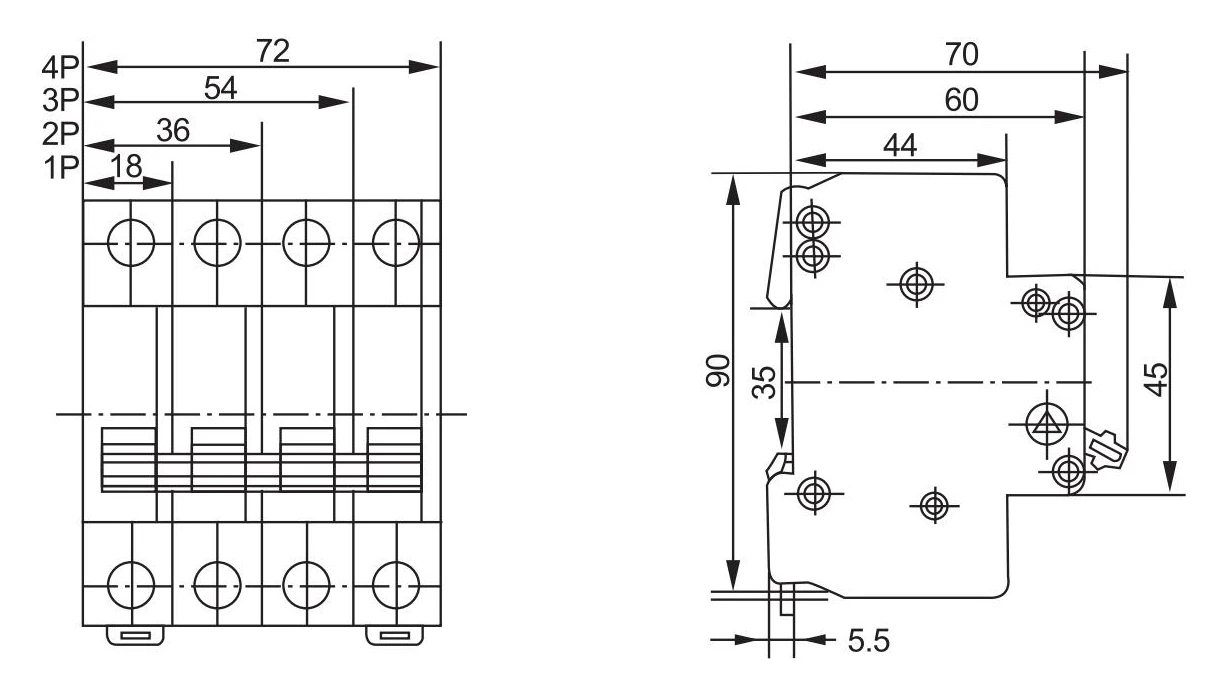

Please ensure installation on a TH35-7.5 steel mounting rail for optimal performance and safety.
