YIFA voltage regulating and distribution three-phase oil-immersed transformer 10kV
Inquire NowDescription

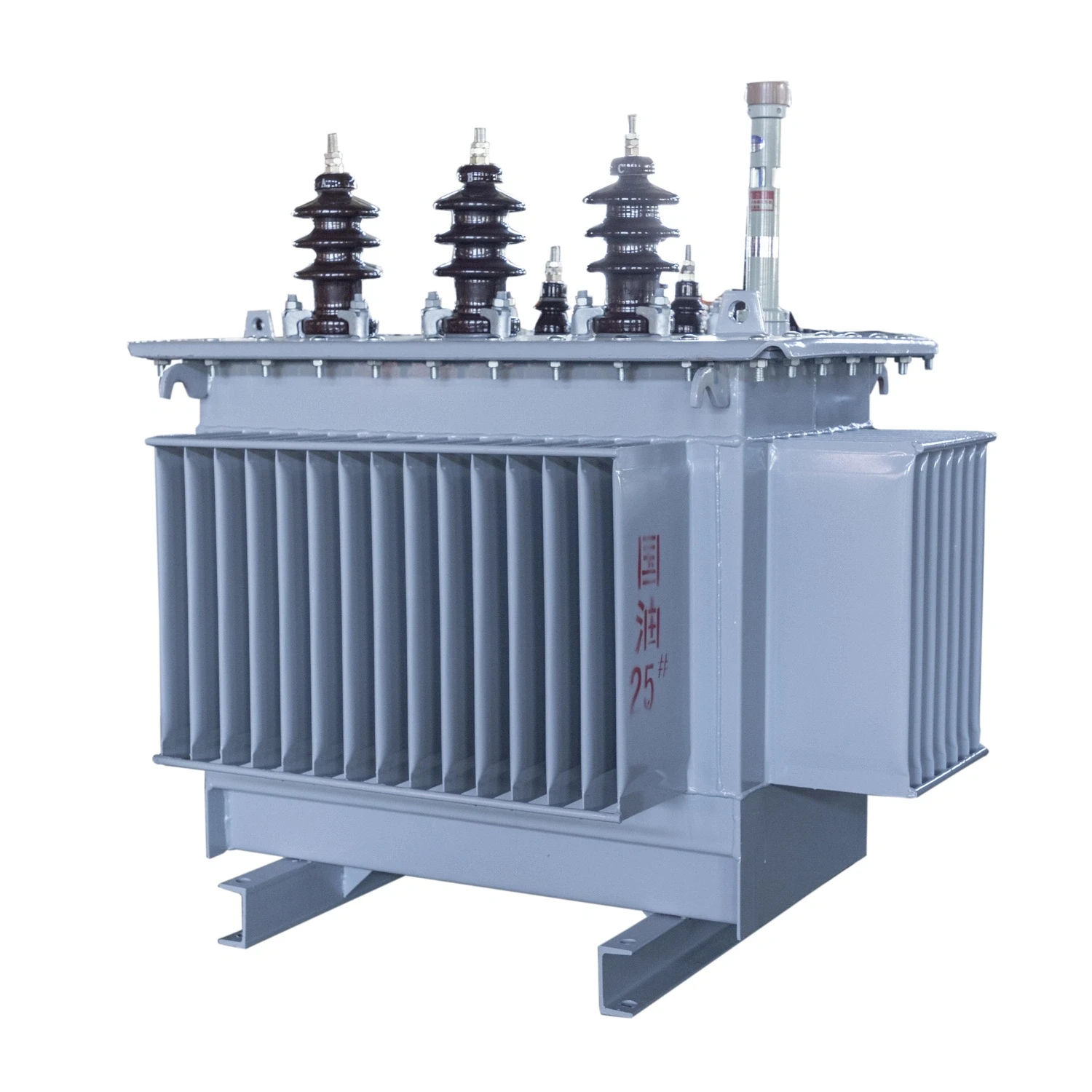

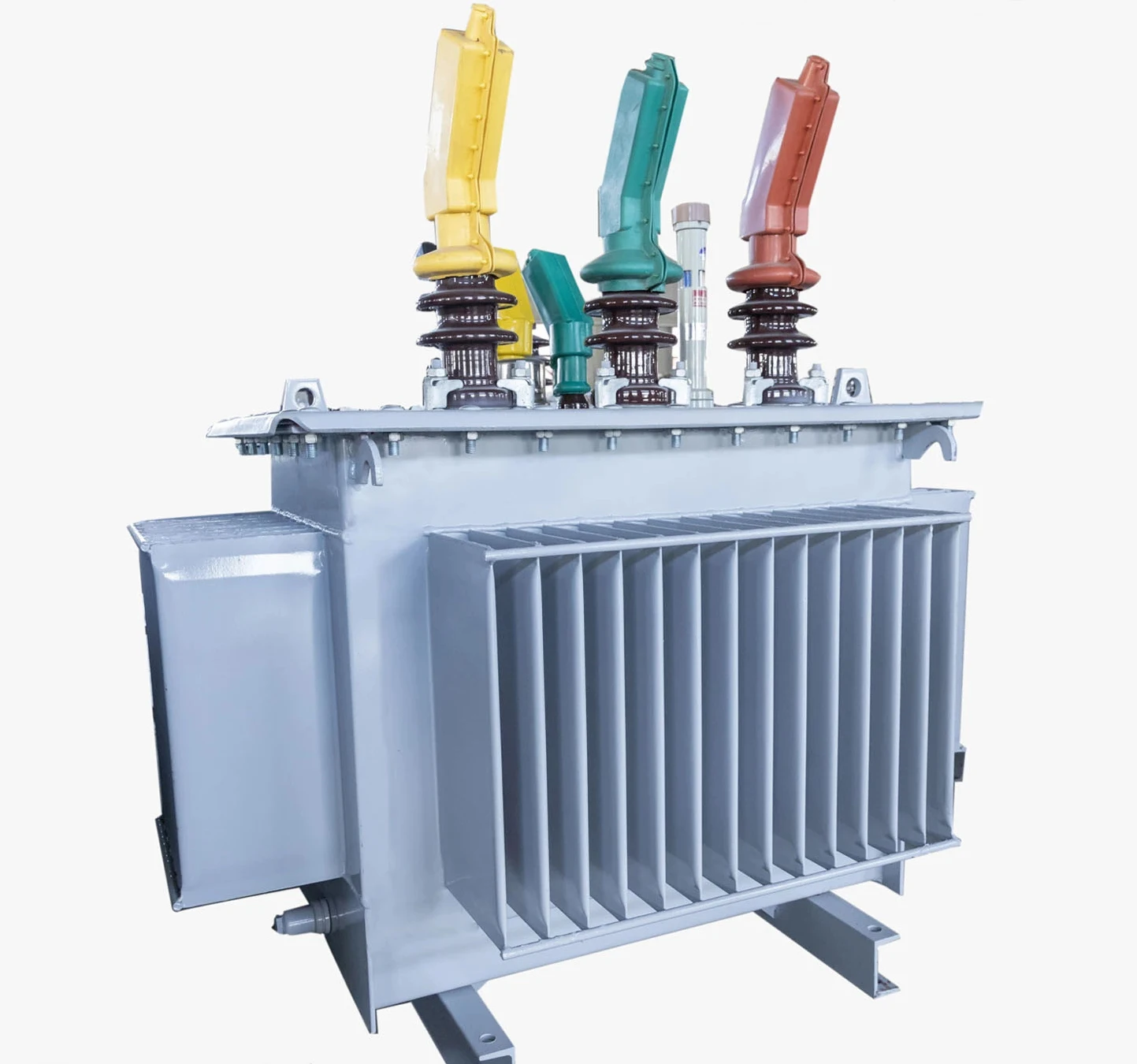

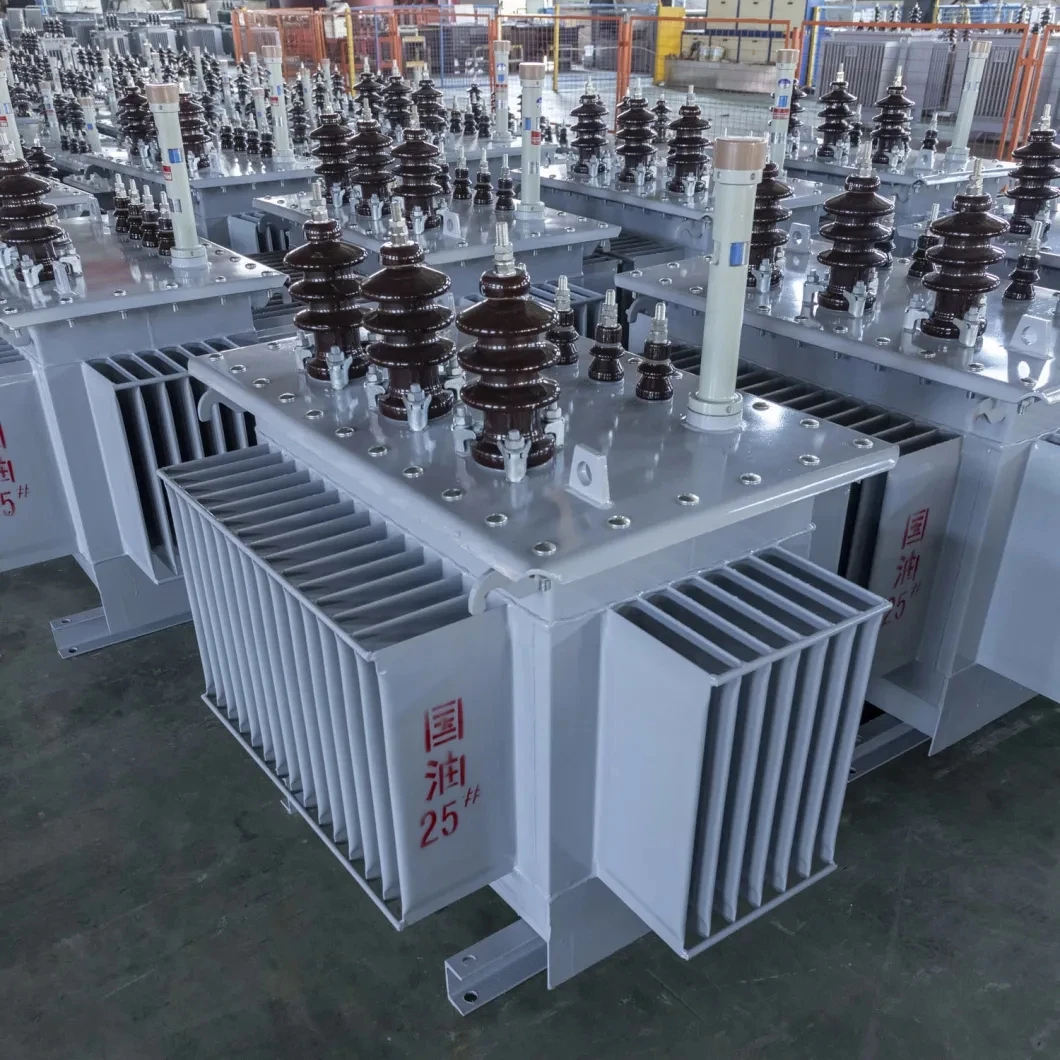

The YIFA S11-M series 10kV omniseal double winding unexcited voltage regulated distribution three-phase oil-immersed transformer is engineered for efficiency and reliability, offering a robust solution for voltage regulation and distribution needs. With a power capacity of 5000 KVA, this transformer is designed to operate seamlessly in various environments, making it an essential piece of equipment for electrical infrastructure.
This transformer is suitable for special conditions, such as altitudes over 1000 meters and ambient temperatures ranging from -45℃ to +40℃. In normal service conditions, it functions optimally at lower altitudes and in milder temperature ranges, ensuring consistent performance and longevity.

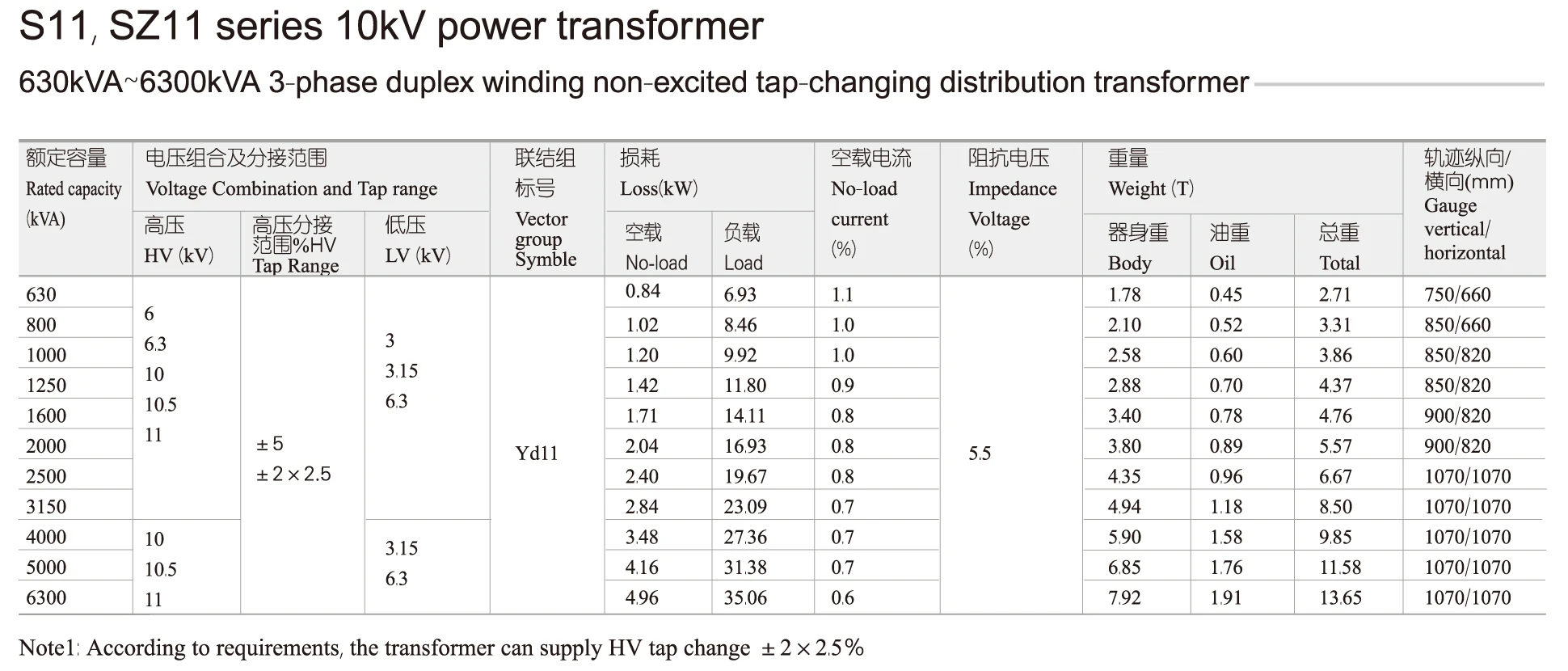

Specifications
| Attribute | Details |
|---|---|
| Model | S11-M |
| Voltage | 10 kV |
| Power Capacity | 5000 KVA |
| Height Above Sea Level (Special Conditions) | Over 1000 m |
| Max Ambient Temperature | +40℃ |
| Min Ambient Temperature | -45℃ |
| Height Above Sea Level (Normal Conditions) | Under 1000 m |
| Max Daily Temperature | +30℃ |
| Max Annual Temperature | +20℃ |
| Min Outdoor Temperature | -25℃ |
Additional Information
- Special using conditions must be defined in detail when placing an order.
