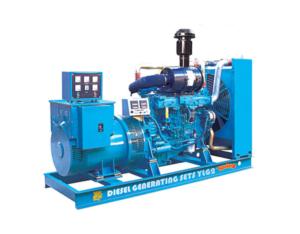

YLG2-WEICHAI series water-cooled diesel generating
Inquire NowDescription
The YLG2-WEICHAI series water-cooled diesel generator sets are designed for reliable and efficient power generation. Featuring a variety of models, each generator delivers robust continuous and standby output, making them ideal for both residential and commercial applications. These generators utilize advanced WEICHAI diesel engines, known for their durability and performance, ensuring that your power needs are met seamlessly. With a focus on efficiency, these units are engineered for low fuel consumption while providing exceptional output.
Specifications
| Genset Model | Continuous Output (KW) | Standby Output (KW) | ||
|---|---|---|---|---|
| YLG2-12 | 12 | 13.2 | ||
| YLG2-20 | 20 | 22 | ||
| YLG2-24 | 24 | 26.5 | ||
| YLG2-30 | 30 | 33 | ||
| YLG2-40 | 40 | 44 | ||
| YLG2-50 | 50 | 55 | ||
| YLG2-75 | 75 | 82.5 | ||
| YLG2-100 | 100 | 110 | ||
| YLG2-120 | 120 | 132 | ||
| Engine Model | Type | Cylinder Numbers | Displacement (L) | Fuel Consumption (g/kw.h) |
| WEICHAI 2100 | Water cooling, in-line, 4-strokes | 2 | 1.806 | ≤265.2 |
| WEICHAI 495D | Water cooling, in-line, 4-strokes | 4 | 3.26 | ≤251.6 |
| WEICHAI 4100D | Water cooling, in-line, 4-strokes | 4 | 3.61 | ≤268.4 |
| WEICHAI 495ZD | Water cooling, in-line, 4-strokes | 4 | 3.26 | ≤251.6 |
| WEICHAI R4105D | Water cooling, in-line, 4-strokes | 4 | 3.62 | ≤266.6 |
| WEICHAI R4105ZD | Water cooling, in-line, 4-strokes | 4 | 4.33 | ≤224 |
| WEICHAI R6105ZD | Water cooling, in-line, 4-strokes | 6 | 6.49 | ≤224 |
| WEICHAI R6105AZLD | Water cooling, in-line, 4-strokes | 6 | 6.75 | ≤218 |
| WEICHAI R6105IZLD | Water cooling, in-line, 4-strokes | 6 | 7.01 | ≤218 |
Additional Information
Each generator set is equipped with essential safety features including protection against low accumulator, overspeed, high water temperature, and low pressure gas. The configuration includes a water tank, storage battery, control panel, multifunctional display, controller, and necessary accessories for optimal performance.
