YPL-07M
Inquire NowDescription

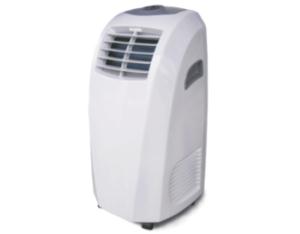

The YPL-07M is a state-of-the-art cooling unit designed for efficiency and convenience. This self-evaporative air conditioner eliminates the need for a water tank, utilizing a unique system that recycles condensing water to enhance cooling performance. With its upward airflow design, the YPL-07M provides effective and comfortable cooling for spaces ranging from 10 to 15 m².
This model features several protective functions, including over-cold protection and an anti-frozen function for optimal operation. The unit also includes a three-minute restart delay to prevent compressor damage and a self-diagnosis feature for easy troubleshooting. Additionally, the YPL-07M is equipped with a 24-hour On/Off manual control for flexible usage.
Specifications
| Feature | Details |
|---|---|
| Model | YPL-07M |
| Cooling Capacity | 7000 Btu/h |
| Heating Capacity | N/A |
| EER for Cooling | C |
| Power Supply | 230V/50HZ |
| Power/Ampere Consumption (Cooling) | 800W / 3.9A |
| Moisture Removal | 0.65 L/H |
| Air Circulation | 370 m³/h |
| Refrigerant Charge | R407C / 350g |
| Compressor Type | Rotary |
| Body Size (W×H×D) | 370 × 750 × 300 mm |
| Package Size (W×H×D) | 570 × 785 × 350 mm |
| Net Weight / Gross Weight | 23 kg / 28 kg |
| Application Area | 10~15 m² |
| Loading Quantity (20″/40Gp/40″HQ) | 128 / 276 / 412 |
Additional Information
- Manual Control: Only cooling function available.
- Ideal for personal or small office use.
