Z-lock sandwich wall panel production line sheet forming roll machine drywall manufacturin
Inquire NowDescription
The Z-lock sandwich wall panel production line is an advanced sheet forming roll machine designed specifically for drywall manufacturing. This state-of-the-art equipment is capable of producing high-quality EPS and rock wool sandwich panels efficiently. With a robust construction and user-friendly PLC control system, it allows for precise operation and stability during production. The machine supports a range of coil materials including EPS, rock wool, and glass silk floss, making it versatile for various construction needs.
Key features include adjustable plate thickness from 0.3mm to 0.8mm and core thickness options ranging from 20mm to 300mm. The production capacity varies between 2-4.5m/min depending on the adhesive used, ensuring flexibility in manufacturing speeds. With a total power requirement of approximately 30KW and a substantial weight of 25 tons, this machine is built for durability and performance. The overall dimensions of the production line are about 35,000mm in length, 2,500mm in width, and 2,600mm in height.
Specifications
| Attribute | Details |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 2 – 4.5 m/min |
| Total Power | About 30 KW |
| Weight | 25 tons |
| Dimensions | Length: 35,000 mm × Width: 2,500 mm × Height: 2,600 mm |
Additional Information
Processing Technique: The production process includes a Composite Decoiler, Roll Forming, Laminating System (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer), Cutting System, and Runout Table.
Terms of Payment: 30% down payment by T/T, remainder upon inspection in seller’s factory.
Delivery: 60 days after receipt of advance payment.
Service: Technicians available to assist with machine setup. Costs for travel and accommodation are borne by the buyer.
Warranty: 12 months limited warranty; parts are free during warranty, but shipping fees apply.
Note: Custom machine designs available as per specifications.

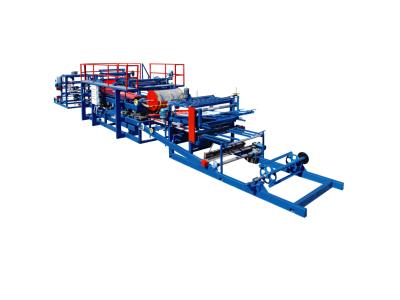

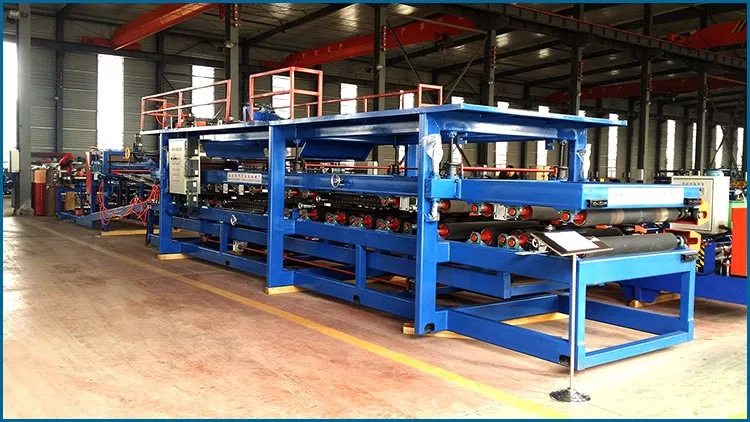

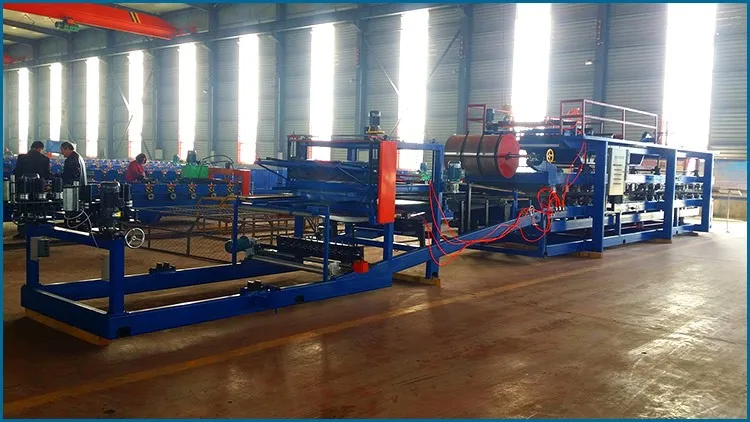

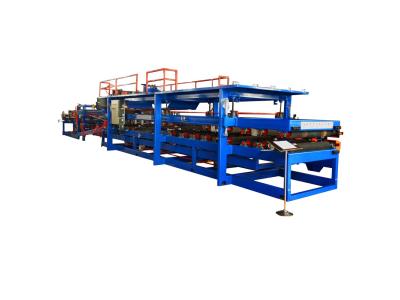

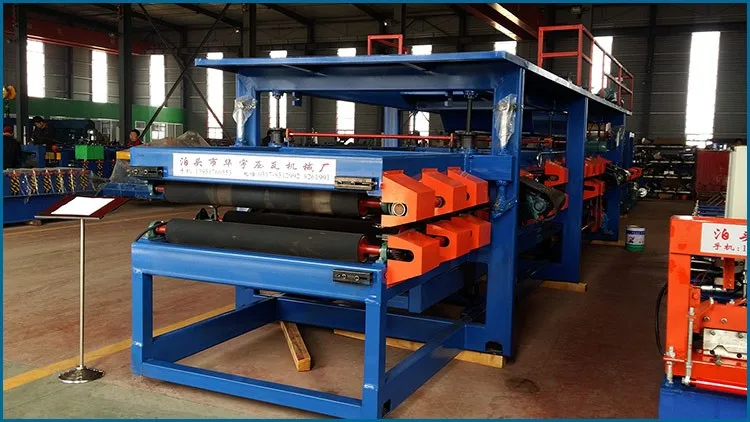

Product Pictures
