z-look Sandwich Panel Production Line Chinese Manufacturer
Inquire NowDescription
The Z-lock sandwich wall panel production line is a state-of-the-art EPS sandwich panel production system designed for efficiency and high-quality output. This advanced machine, known as the Xinnuo automatic EPS sandwich roof and wall panel roll forming machine, specializes in processing various materials, including EPS, rock wool, and glass silk floss, making it versatile for different construction needs. With a production capacity ranging from 2 to 4.5 meters per minute, depending on the glue used, this machine ensures rapid and reliable production of sandwich panels.
Equipped with a PLC control system, the machine offers easy operation and high precision, ensuring stable performance. The production line is capable of handling plate thicknesses from 0.3mm to 0.8mm, with core thickness options from 20mm to 300mm. The entire production line measures approximately 35,000mm in length, 2,500mm in width, and 2,600mm in height, making it a robust addition to any manufacturing facility.
Specifications
| Attribute | Details |
|---|---|
| Coil Material | EPS, rock wool, glass silk floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 2 – 4.5 m/min |
| Total Power | Approximately 30 KW |
| Weight | 25 tons |
| Dimensions | Length: 35000 mm × Width: 2500 mm × Height: 2600 mm |
Additional Information
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the remaining 70% to be paid after inspection by the buyer in the seller’s factory, before delivery.
Delivery: 60 days after receipt of advance payment.
Service: A technician will be sent to your country for installation. The buyer is responsible for all costs, including visa, roundtrip tickets, accommodation, and a daily salary of $60.
Warranty: 12 months limited warranty. During the warranty period, parts are free but the buyer pays for shipping fees.
Note: Custom designs can be accommodated according to your specifications.

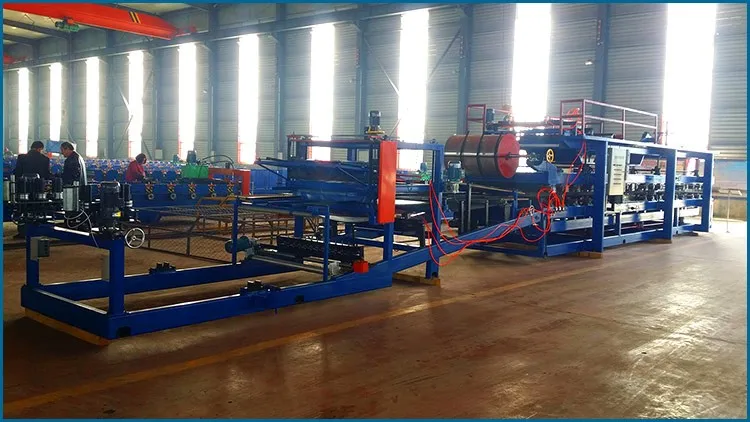

Product Pictures
