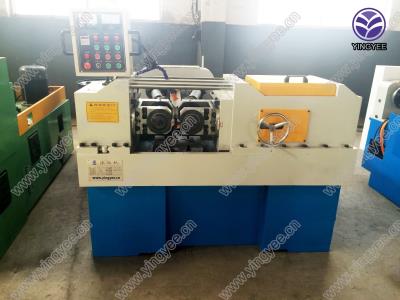

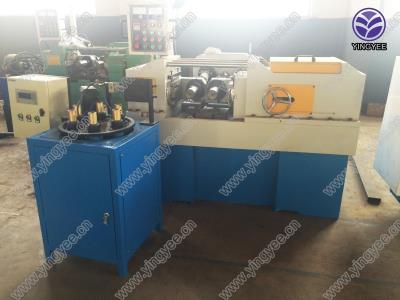

Z28-200 type screw rolling machine

Inquire Now

Description

The Z28-200 type screw rolling machine is a versatile tool designed primarily for architectural wall screws, offering exceptional performance for various screw types including top drag, trapezoidal, and modulus screws. This machine is engineered for simplicity and efficiency, allowing for effortless operation and high productivity. Its robust construction ensures durability while maintaining low noise levels and a low failure rate. The Z28-200 excels in precision processing of screw threads and supports multiple machining processes such as molding, barreling, and knurling. With features like an automatic lubrication system and diverse control options, it guarantees ease of use and reduced labor intensity.

Specifications

Attribute Value Additional Information
Maximum Roll Pressure 200 KN Spindle Speed: 16/26/38/55/90 (r/min)
Rolling Material Diameter ≤60 mm Open Thread Length (plus protection)
Track Rollers ≤210 mm Active Power: 11 KW
Diameter Rollers ≤75 mm Hydraulic Power: 4 KW
Maximum Thickness of Rollers 120 mm Cooling Power: 125 KW
Axis Tilt Angle ±15° Weight: 2300 KGS ±50 KGS
Spindle Center Distance 150-270 mm Dimensions: 1700*1850*1550 mm

Additional Information

  • Characterized by a rational and solid structure.
  • Great active force with low noise and low failure rate.
  • Convenient adjustments for high precision in processing screw threads.
  • Suitable for processing regular and abnormal bolts of various specifications.
  • Equipped with manual, pedal, semi-automatic, and automatic controls.
