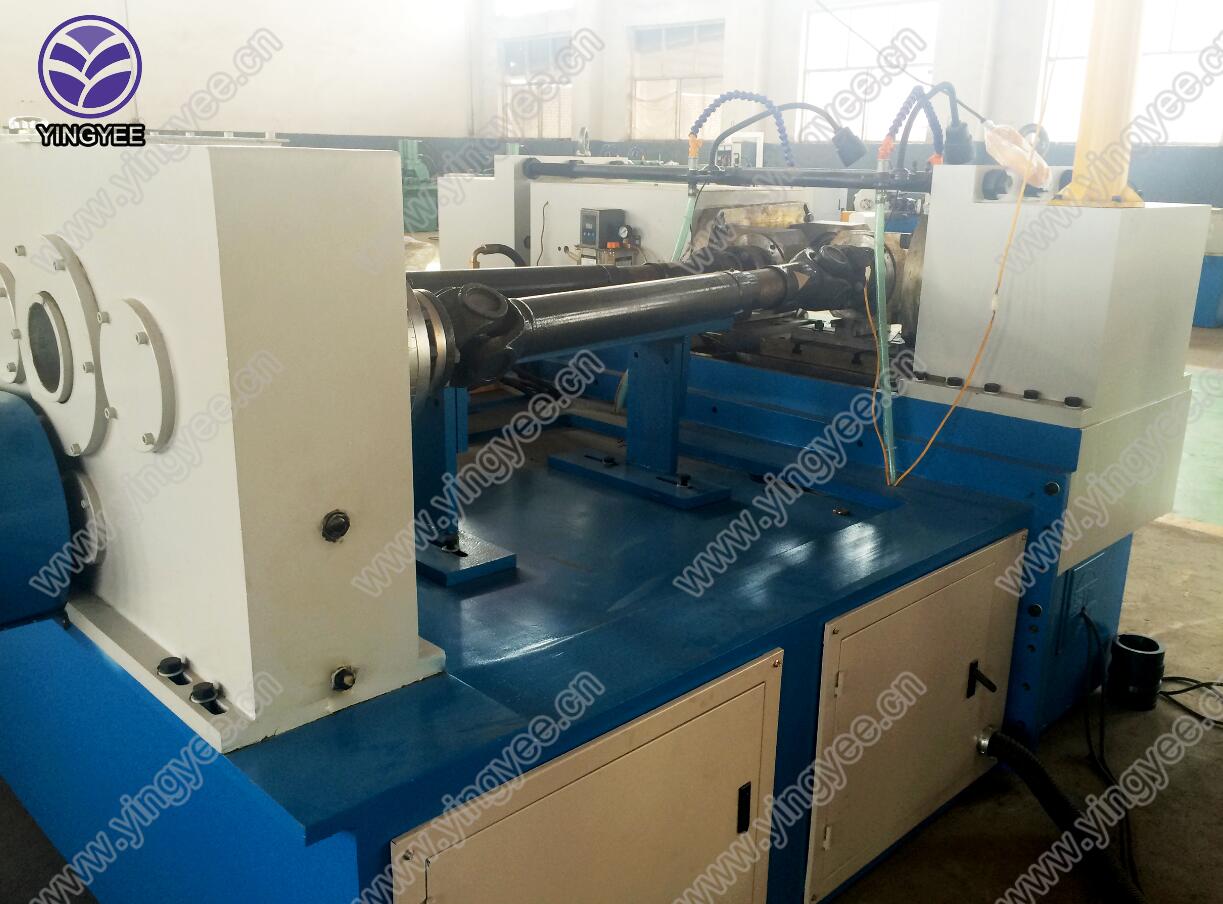

Z28-650 type screw rolling machine

Inquire Now

Description

The Z28-650 type screw rolling machine is engineered for strength and reliability, boasting a robust structure and exceptional manufacturing capabilities. This machine is primarily designed for rolling larger trapezoidal threads, modulus threads, and high-strength standard parts. It effectively processes various materials with an elongation greater than 10% and a tensile strength of less than 100N/mm², including different types of carbon steel, alloy steel, and non-ferrous metals.

Specifications

Attribute Value
Maximum Roll Pressure 650KN
Spindle Speed 16/26/38/55/90 (r/min)
Maximum Roll Diameter ≤120mm
Maximum Diameter of Rollers ≤290mm
Active Power 22KW
Diameter of Rollers ≤100mm
Hydraulic Power 7.5KW
Maximum Thickness of Rollers 200mm
Axis Tilt Angle ±15°
Spindle Center Distance 300-410mm
Weight 6100KGS ±50KGS
Dimensions 2300*2540*2700

Additional Information

To ensure optimal performance, it is recommended to regularly maintain the machine and check the hydraulic system for any leaks. This will help prolong the lifespan of the Z28-650 screw rolling machine.
