Description
The Automatic Nail Making Machine Z94-1C/2C/3C/4C/5.5C/6.5C is a robust and efficient solution for producing a variety of nails, including concrete, stainless, D shape, and T shape nails. Manufactured by Wuxi Shenda Nail Machinery Factory since 1995, this machine offers exceptional performance with a capacity of 1000 pieces per year, serving diverse markets across Africa, the Middle East, Asia, and Latin America. Equipped with a plunger and oil pipe lubricating structure, it ensures high speed, low noise, and minimal impact, making it ideal for high-quality asphalt felt nails and other nails used in high-speed coil collators and nailers. Its advanced design and engineering guarantee reliability and durability, cementing its reputation among clients worldwide.
Our product range includes specialized machinery such as roofing nail machines, blind rivet nail machines, barbed wire machines, coil nail welding machines, and high-speed rolling machines, all certified with CE and ISO9001.
Specifications
| Parameter | Unit | Z94-6.5C | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
|---|---|---|---|---|---|---|---|
| Dia of nail max | mm | 6.5 | 5.5 | 4.5 | 3.4 | 2.8 | 1.6 |
| Dia of nail min | mm | 4.5 | 3.7 | 2.8 | 1.8 | 1.2 | 0.9 |
| Length of nail max | mm | 200 | 150 | 100 | 80 | 50 | 25 |
| Length of nail min | mm | 100 | 80 | 50 | 30 | 16 | 9 |
| Designed output | pcs/min | 160 | 200 | 260 | 320 | 350 | 450 |
| Motor power | kw | 11 | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight (approx) | kg | 5000 | 2500 | 2000 | 1400 | 1200 | 560 |
Additional Information

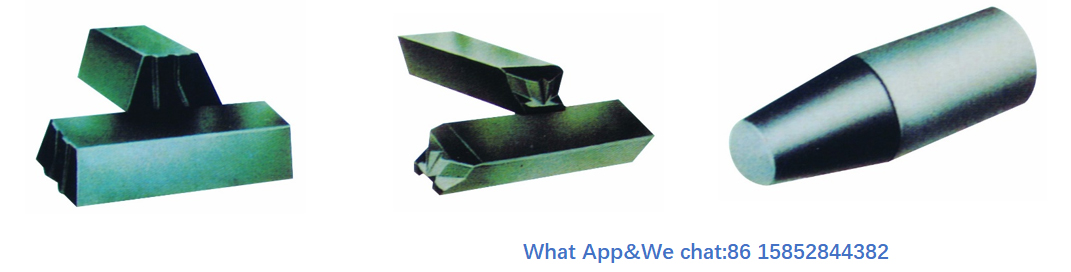

Machine spare parts:

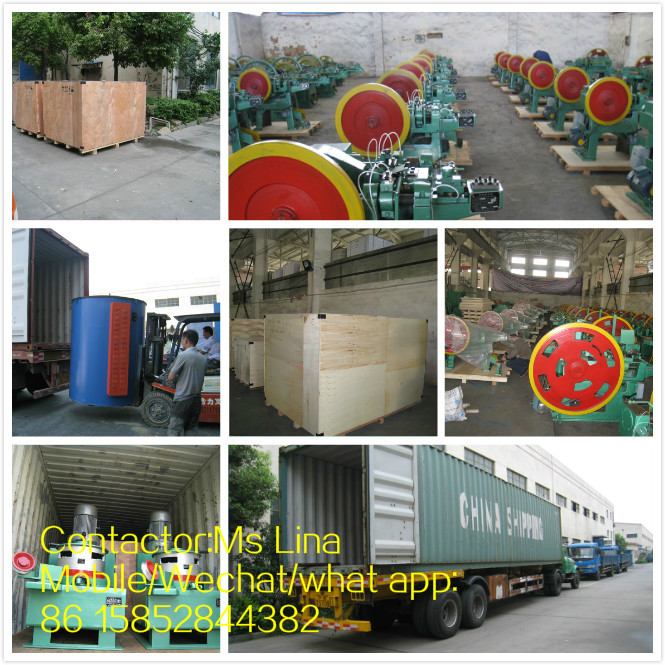

Machine delivery and shipping:
