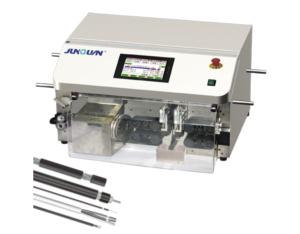

OEM ODM ZDBX-65A AUTOMATIC COAXIAL CABLE CUTTING-STRIPPING MACHINE
Description
The ZDBX-65A Automatic Coaxial Cable Cutting-Stripping Machine is an advanced solution designed for efficient processing of coaxial cables. With its innovative rotary incision head design, the machine integrates rotary incision blades with a universal centering system, eliminating the need for blade changes on the incision head. This feature significantly enhances processing speed and minimizes changeover times. Equipped with a user-friendly touch screen control system, it allows for precise operation, ensuring the highest quality and repeatability in cable cutting and stripping.
Specifications
| Attribute | Details |
|---|---|
| Max Cable Diameter (O.D.) | 12 mm |
| Wire Size Range | Multi-Core Cable: 0.03-25 mm² (AWG #4-32) |
| Single-Core Cable | Up to 6 mm² (AWG #10) |
| Max Programmable Total Length | 9999.9 m |
| Weight | 80 kg |
| Power | AC 220 V |
| Dimensions | W 660 × D 560 × H 390 mm |
