Description

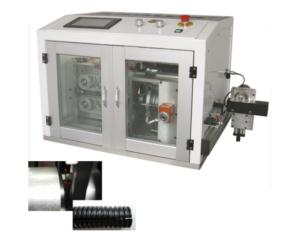

The ZDQG-6600 Corrugated Tubing Cutting System is a state-of-the-art solution designed for precise and efficient cutting of corrugated tubes. Developed by JUNQUAN AUTOMATION, this system features a powerful pulling device combined with an advanced infrared detection system and a robust cutting head, ensuring burr-free cuts on a variety of corrugated tube sizes. Capable of processing ultra-thin tubes with diameters ranging from Φ7mm to Φ32mm, the ZDQG-6600 can handle various materials with ease. Additionally, it offers an optional slitting unit that allows for the opening of tubes post-cutting, providing versatility for different applications.
Specifications
| Attribute | Details |
|---|---|
| Corrugated Tubing Diameter | Φ7-32mm |
| Cutting Position | On the peak of the tubing |
| Max Programmable Total Length | 9999.9m |
| Transport Speed | Up to 50m/minute in 10 increments |
| Weight | 90kg |
| Air Requirements | 5 Bar |
| Power | AC 220V/60Hz |
| Dimensions | L700 × W550 × H520 mm |
