Description

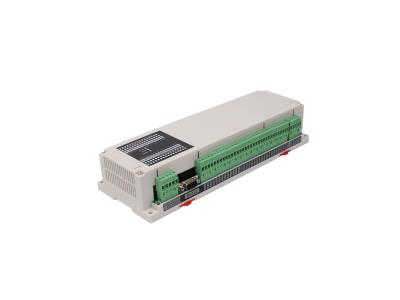

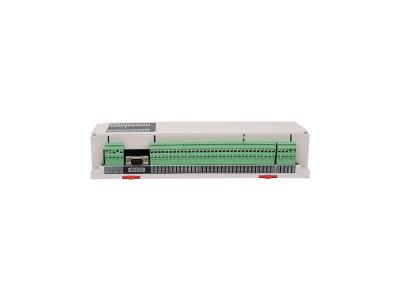

The ZH-YX3232-32 Channels Input and Output IO Port Control Module is a state-of-the-art control solution designed for industrial applications. This module leverages a 32-bit ARM processor and features high-speed magnetic isolation and optocoupler isolation technology for robust performance. It supports various communication protocols, including standard Modbus-RTU and Modbus-TCP, enabling seamless integration with PLCs and other industrial systems.

Equipped with 32 channels of relay outputs and switch status acquisition, this module offers versatile functions such as voltage or current acquisition, voltage or current output, and PWM control. Its communication circuit is engineered with lightning protection and anti-interference design, making it ideal for signal control in industrial field equipment.

Features

• Optional functions: AI, AO, PWM output.
• Switching capacity: Each of the 32 channels supports a maximum switching current of 5A and a maximum switching power of 1385VA/150W.
• Photoelectric isolation: Connects to various input types, including key switches and proximity sensors.
• Status indicators: Includes indicators for switch output, switch input, communication, and power.
• One-key initialization: Easily reset to factory settings with a simple button press.
• Multiple interfaces: Standard RS232 and RS485 interfaces, with customizable network and CAN interfaces.
• Expandable communication: Built-in TTL communication port for additional modules like GSM and Wi-Fi.
• Alarm system: Integrated alarm buzzer for remote control and on-site alerts.
• DIP switch: 8-bit DIP switch for flexible function settings.

Specifications

Models
