Zhejiang manufacturer customized good price automatic steel cut to length and slitting mac
Inquire NowDescription

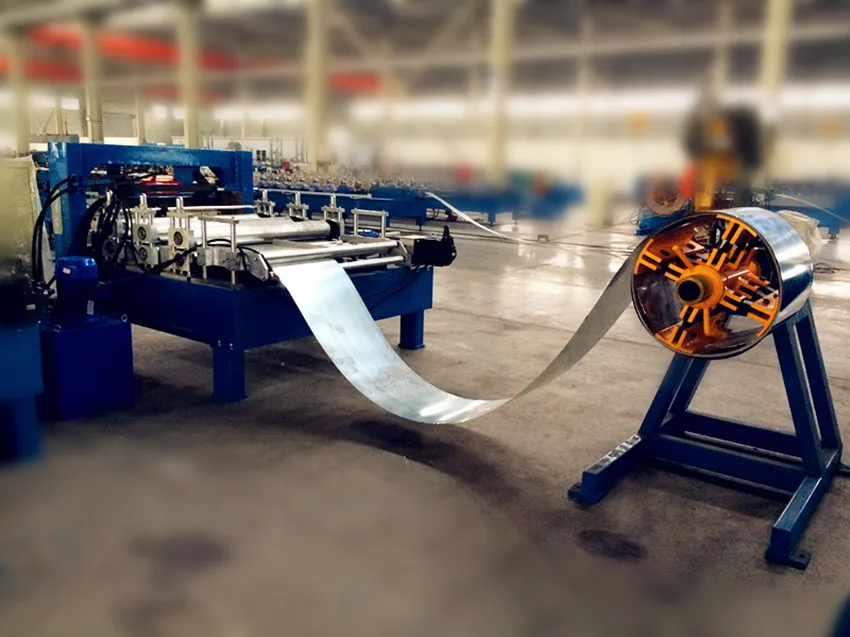

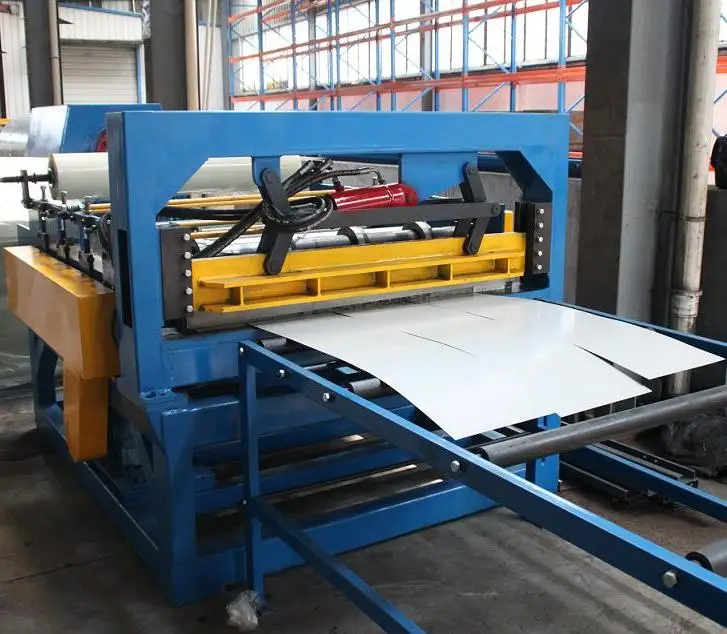

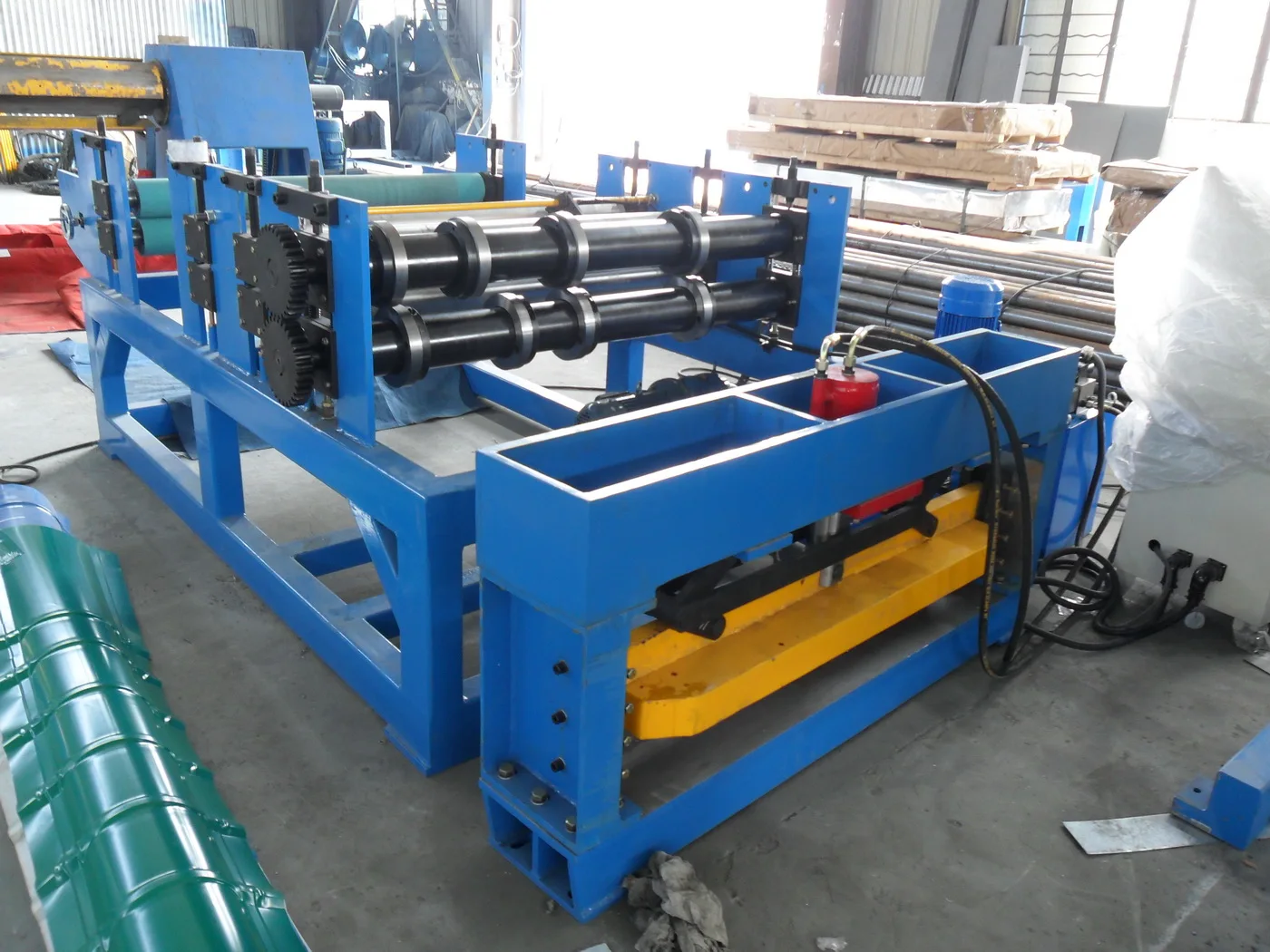

The automatic slitting and cutting machine is a state-of-the-art solution designed for efficiency and precision in processing pre-painted and galvanized steel coils. It features a fully automatic operation, easily controlled via a remote, making it user-friendly for operators. With its powerful capabilities, this machine is capable of slitting up to 10 strips simultaneously, ensuring high productivity while maintaining accuracy with slitting tolerances of ±0.5mm and cutting tolerances of ±2mm.
Specifications
| Product Name | Slitting & Cutting Machine |
|---|---|
| Material Type | Pre-painted & Galvanized Steel Coil |
| Thickness (mm) | 0.2-1.5mm |
| Tield Stress (Mpa) | Q235-345 |
| Width | Max. 1250mm |
| Max. Speed – Slitting | 20-30m/min |
| Max. Speed – Cutting | 10-15m/min |
| Accuracy – Slitting | ±0.5mm |
| Accuracy – Cutting | ±2mm |
| Roller Material | 9CrSi |
| Min. Slitting Width | 60mm |
| Max. Slitting No. | 10 strips |
| Roller Driven Type | Chain Transmission |
| Controller | PLC |
| Operation | Touch Screen and Button |
| Hydraulic System Pressure | 12Mpa |
| Main Motor Power | 3kw |
| Hydraulic Station Motor Power | 3kw |
| Dimension (L*W*H) | About 15000*1500*1500mm |
| Weight | About 12000kg |
Additional Information
Our Service:
– Provide Pre-sales Consultant & On-purchase service & After-sales service 24hr × 7days per week
– Give technical suggestion
– Test the machine before shipment
– Provide technical guidance related to the use of the machine
– Supply one-year warranty period for the machine
– Provide spare parts at cost price after warranty period
– Collect feedback for the machine working
– Provide long-term technical assistance.
