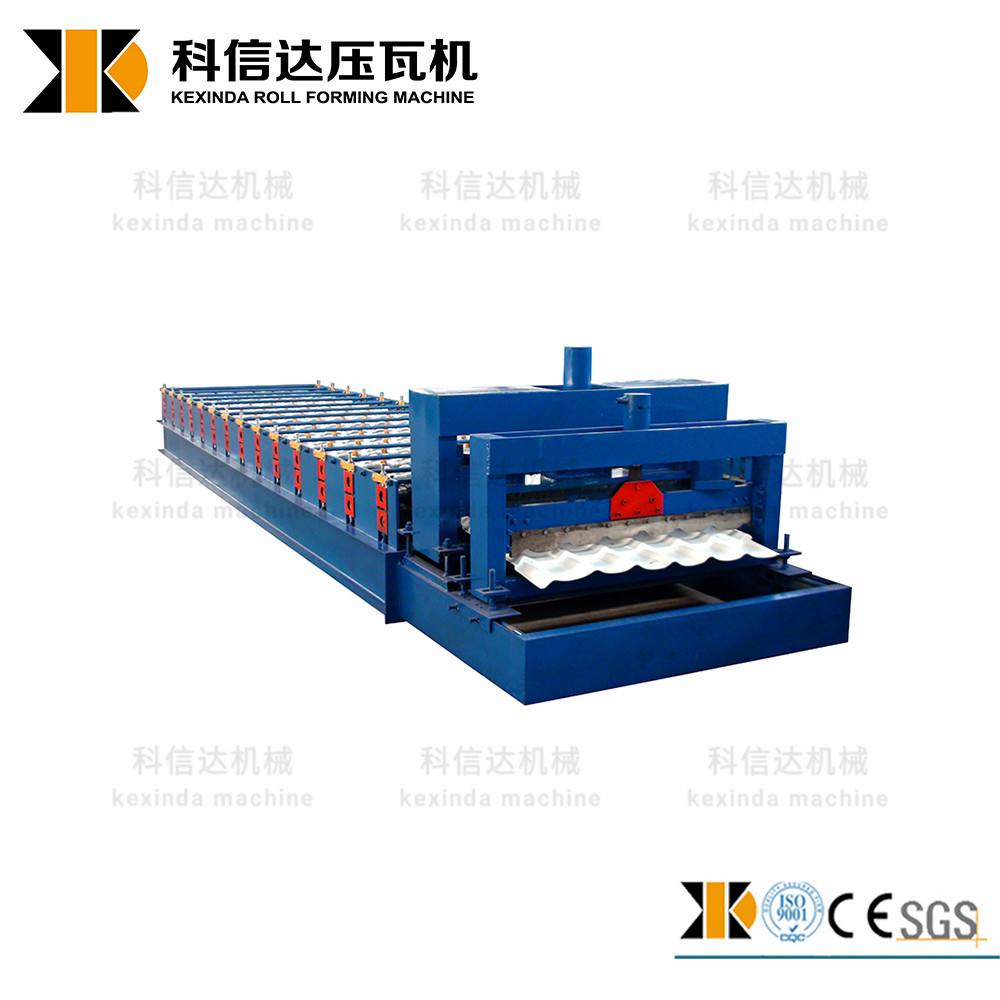

zinc sheet price colored coated steel glazed tile roofing panel roll forming machinery
Inquire NowDescription
The zinc sheet price colored coated steel glazed tile roofing panel roll forming machinery is an advanced solution designed for efficient and precise manufacturing of roofing panels. This robust machine integrates a man-made uncoiler, roll forming machine, computer control system, hydraulic control system, and cutting mechanisms, ensuring a seamless production process. Ideal for various applications, including industrial factories, civilian buildings, and warehouses, this machinery stands out for its aesthetic appeal and durability, making it a valuable asset for easy steel building manufacturing.
Specifications
| Name | Alibaba zinc sheet price colored coated steel glazed tile roofing panel roll forming machinery |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 1000mm |
| Roller station | 11 rows |
| Thickness of feeding material | 0.3-0.8mm |
| Power Supply | 380V, 3-Phase, 50Hz |
| Productivity | 8-12m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 75mm |
| Roller Diameter | 80mm |
| Wall thickness of main forming machine | 14mm steel plate |
| Main forming machine body | 300 mm H steel |
| Motor power | 4+3kw |
| Cutter Standard | GCr12 |
| Size | 7500*1500*1600mm |
| Weight | About 3.5T |
| Custom | According to customer’s requirements |
Additional Information
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service:
* Training on how to install the machine and use it.
* Engineers available to service machinery overseas.
