zinc sheet price colored coated steel glazed tile roofing panel roll forming machinery
Inquire NowDescription

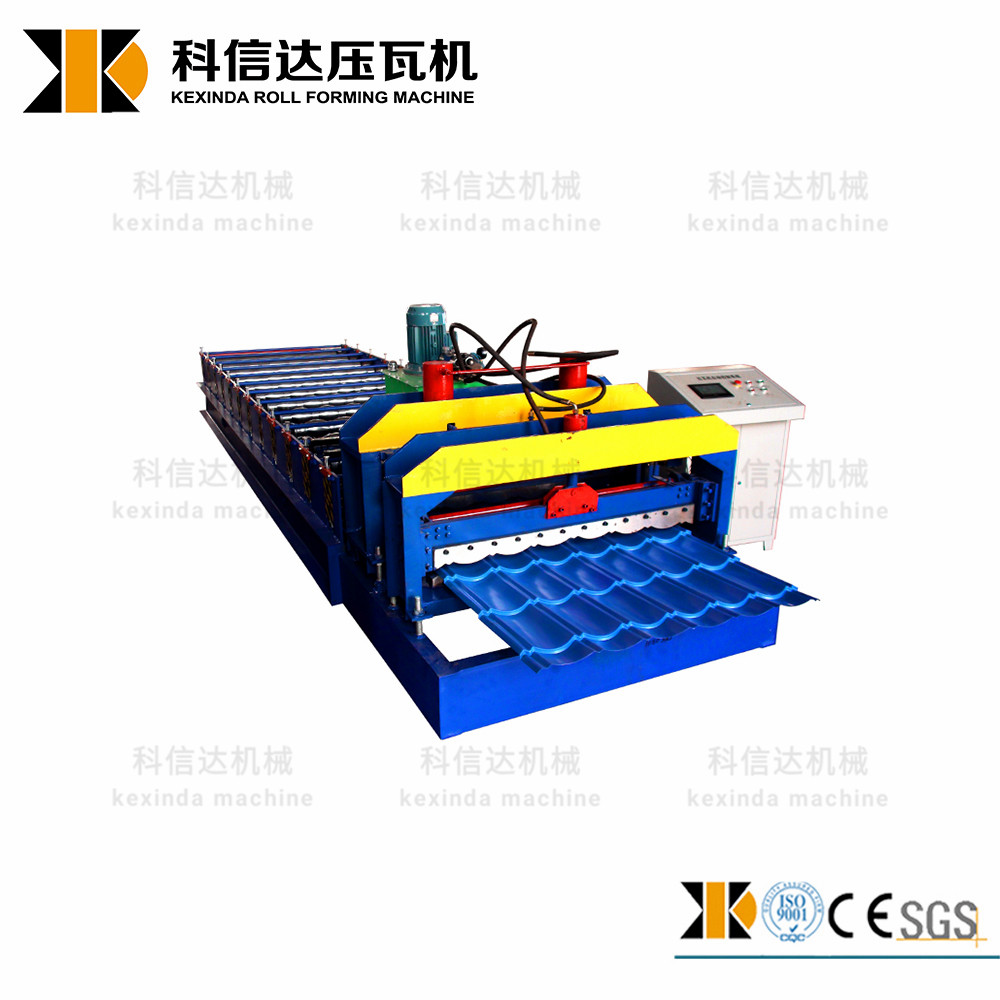

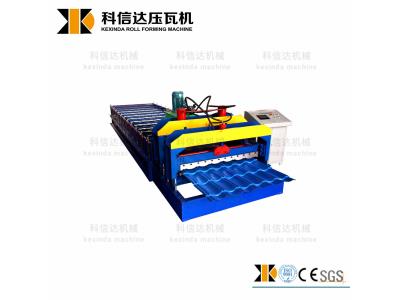

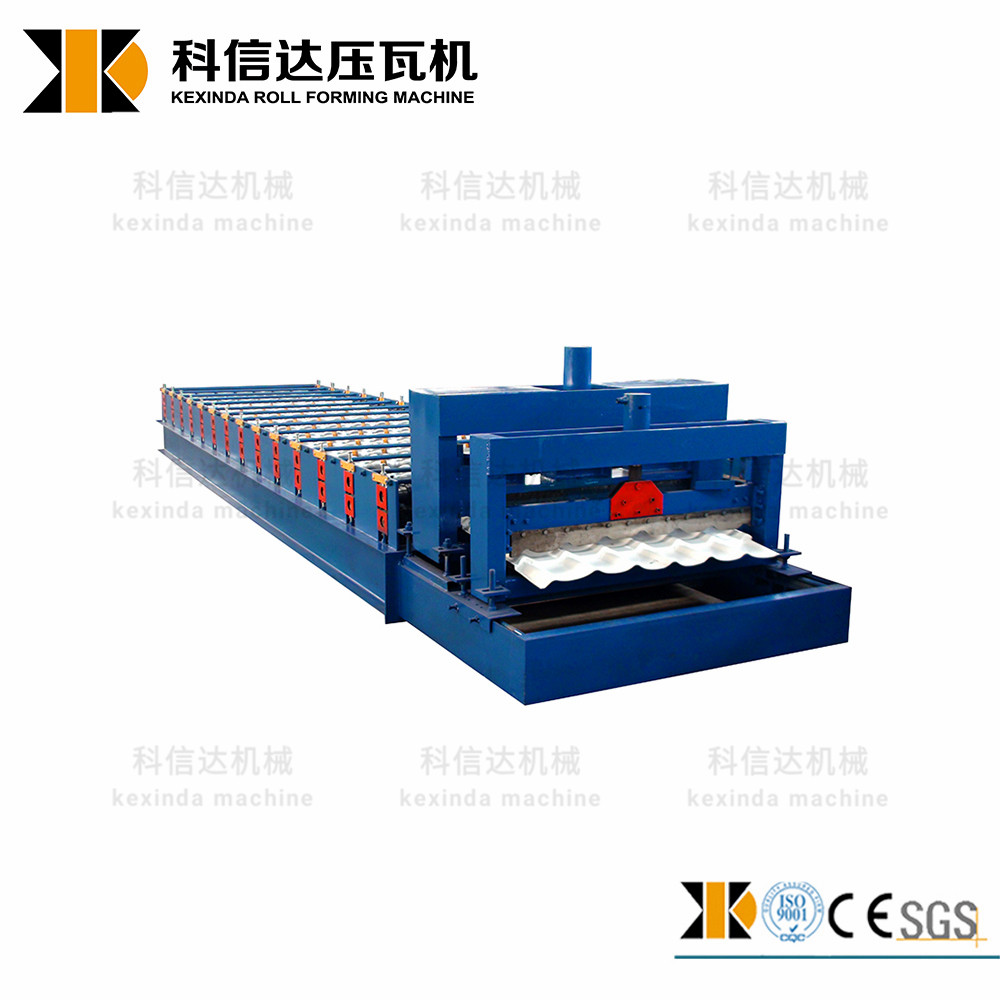

The zinc sheet price colored coated steel glazed tile roofing panel roll forming machinery is an advanced solution for manufacturing high-quality roofing panels. This machinery is equipped with a man-made uncoiler, a roll forming machine, a computer control system, a hydraulic control system, and a cutting mechanism. It is designed to produce roofing panels that are not only aesthetically pleasing but also durable, making it suitable for various applications including industrial factories, civilian buildings, warehouses, and easy steel building manufacturing.
Specifications
| Name | Alibaba zinc sheet price colored coated steel glazed tile roofing panel roll forming machinery |
|---|---|
| Suitable to process | Color steel plate, galvanized sheet, aluminum coils, etc. |
| Width of the feeding material | 1000 mm |
| Roller station | 11 rows |
| Thickness of feeding material | 0.3-0.8 mm |
| Power Supply | 380V, 3-Phase, 50Hz |
| Productivity | 8-12 m/min |
| Rollers’ material | 45# steel |
| Diameter of shaft | 75 mm |
| Roller Diameter | 80 mm |
| Wall thickness of main forming machine | 14 mm steel plate |
| Main forming machine body | 300 mm H steel |
| Motor power | 4+3 kw |
| Cutter Standard | GCr12 |
| Size | 7500*1500*1600 mm |
| Weight | About 3.5T |
| Custom | According to customer’s requirements |
Additional Information
Pre-Sales Service includes inquiry and consulting support, sample testing support, and factory visits. After-Sales Service offers training on machine installation and usage, with engineers available for overseas service.
