ZLP630 Suspended Platform/ Swing Stage/ Gondola
Inquire NowDescription

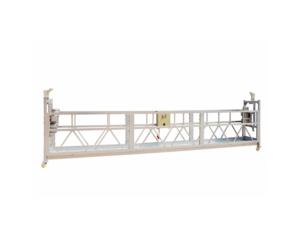

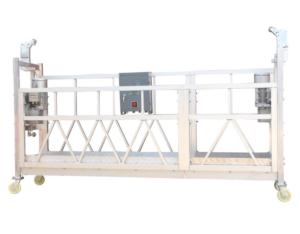

The ZLP630 Suspended Platform, also referred to as a Swing Stage or Gondola, is a state-of-the-art temporarily installed suspended access equipment designed for efficient aerial work. Constructed from lightweight aluminum, this platform can safely carry up to 630 kg, making it an ideal choice for a variety of construction and maintenance tasks at heights.
Its flexible design allows for easy operation and transport, significantly reducing the need for scaffolding during projects. This not only enhances safety but also promotes efficiency and lowers operational costs. The Shenxi ZLP series provides workers with a versatile and secure solution for accessing high work areas, ensuring a safer and more productive work environment.
Specifications
| Item | Parameters |
|---|---|
| Rated Capacity | 630 kg |
| Rated Speed | 9.6 m/min |
| Platform Length | 2 m x 3 |
| Steel Rope | 4T31 |
| Hoist Model | LTD6.3 |
| Rated Lifting Force | 6.3 kN |
| Motor Model | YEJ90L-4 |
| Motor Power | 1.5 kW |
| Motor Phase | 3 Phase |
| Motor Speed | 1420 r/m |
| Brake Force Moment | 15 Nm |
| Safety Lock Configuration | Anti-tilting |
| Permission Force of Impact | 30 kN |
| Locking Cable Distance | < 100 mm |
| Locking Cable Angle | 3°～8° |
Additional Information
For optimal usage, ensure proper setup according to safety guidelines. Regular inspections and maintenance are recommended to prolong the lifespan of the equipment. Always adhere to the maximum rated capacity during operation to ensure safety and functionality.
